Green rectangular circuit board with pre-soldered pin headers and surface-mounted chips

LORDWORLD

LORDWORLD ESP32-P4-WIFI6 Development Board 32MB Pre-soldered Header

SKU CH-GDTH-ETHX2

ESP32-P4 development board with pre-soldered headers, onboard ESP32-C6 for 2.4 GHz Wi-Fi 6 and Bluetooth 5, plus 32 MB flash

  • Ready for AI voice projects with dual-chip ESP32-P4 and ESP32-C6
  • 32 MB NOR flash stores large models and firmware locally
  • Wi-Fi 6 via ESP32-C6 gives fast 2.4 GHz connectivity
  • Bluetooth 5 and BLE supported for low-power peripherals
  • Pre-soldered headers let you start prototyping immediately

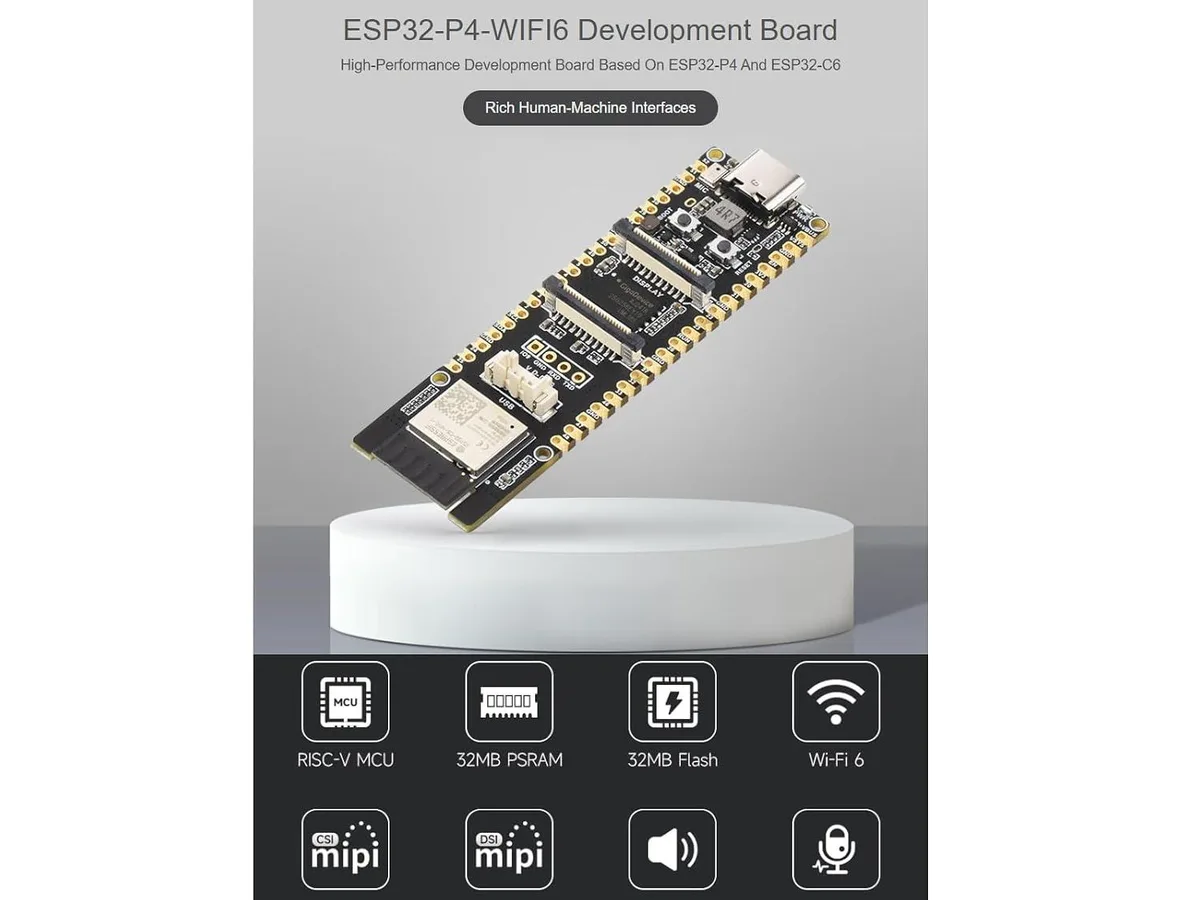

ESP32-P4 Development Board with Pre-soldered Header

This ESP32-P4 development board targets engineers and makers building edge AI or voice-interaction devices. It integrates an ESP32-P4 module alongside an onboard ESP32-C6 chip and 32MB of Nor Flash. The pre-soldered header allows immediate breadboard or socket use without additional assembly.

Sustained Operation via SDIO-Coupled Dual-Chip

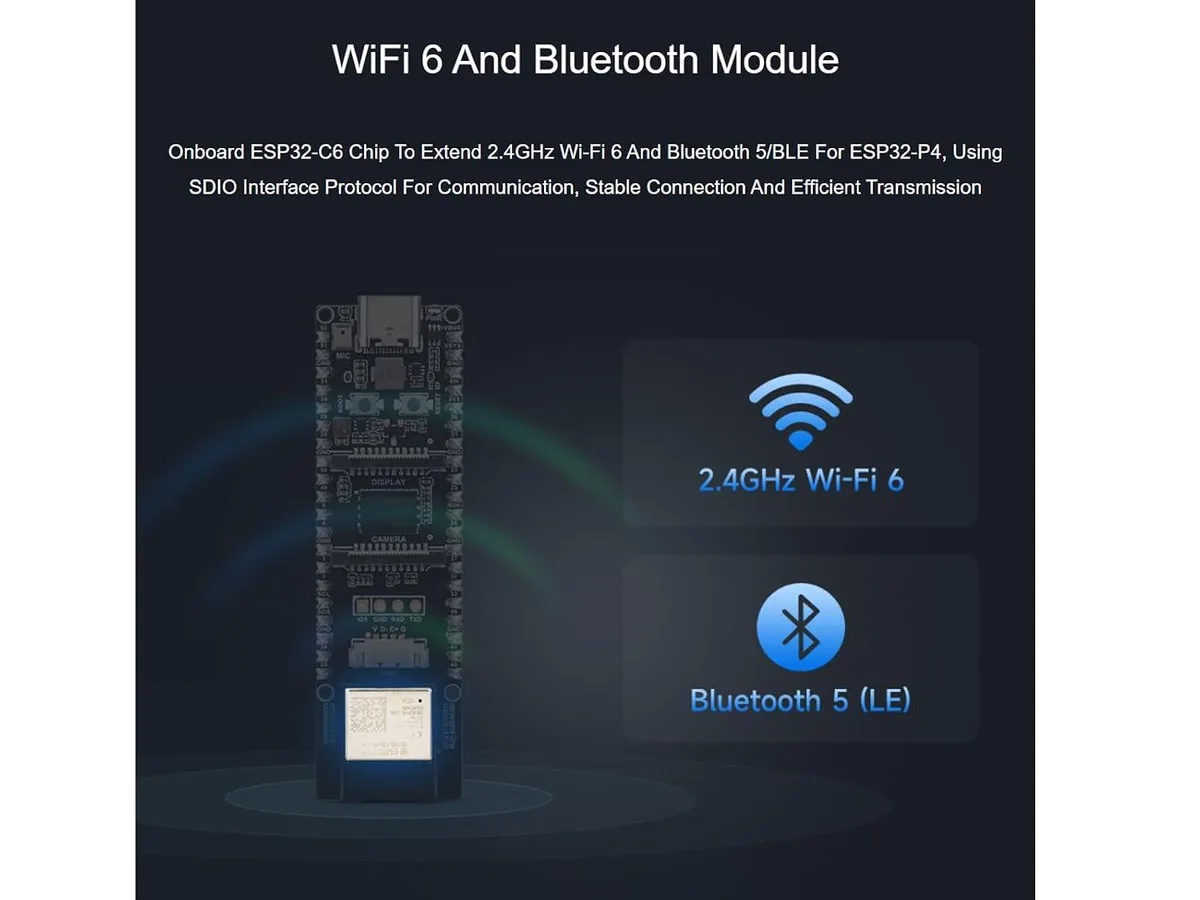

The ESP32-C6 handles 2.4GHz Wi-Fi 6 and Bluetooth 5 connectivity through an SDIO link to the main processor. This offloads radio duties from the dual-core RISC-V cores, keeping compute headroom available during continuous inference or streaming workloads. The architecture is designed for stable throughput rather than burst speed.

Straightforward Integration with Rich Peripheral Set

Pre-soldered headers remove the need for fine-pitch soldering, lowering the barrier for rapid prototyping. Developers gain direct access to MIPI-CSI with integrated ISP, MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART and TWAI interfaces. The main constraint is the fixed 32MB flash capacity, which cannot be upgraded on this board.

Privalumai

  • Ready for AI voice projects with dual-chip ESP32-P4 and ESP32-C6
  • 32 MB NOR flash stores large models and firmware locally
  • Wi-Fi 6 via ESP32-C6 gives fast 2.4 GHz connectivity
  • Bluetooth 5 and BLE supported for low-power peripherals
  • Pre-soldered headers let you start prototyping immediately

Specifikacijos

BrandLORDWORLD

Klausimai apie šią prekę

How much power does the ESP32-P4-WIFI6 board draw when running AI speech tasks all day?

The board uses an ESP32-P4 dual-core RISC-V processor with an onboard ESP32-C6 for Wi-Fi 6 and Bluetooth 5, designed for efficient edge AI workloads.

What host interface does the ESP32-P4-WIFI6 board need for programming and power?

The development board includes a pre-soldered header and communicates via SDIO between the ESP32-P4 and ESP32-C6, requiring a USB connection for flashing and serial console.

Can the ESP32-P4-WIFI6 board drive a legacy MIPI display or camera module I already own?

Yes, the board exposes MIPI-DSI for displays and MIPI-CSI with an integrated image signal processor for cameras, compatible with standard MIPI peripherals.
