Black metal transmitter and receiver units with HDMI and Ethernet ports

Monoprice Inc.

Monoprice Inc. 43959 4K30 HDMI extender 70m PoC

SKU CH-2QTF-E8B3E MPN 43959

Extends 4K at 30 Hz up to 50 m and 1080p at 60 Hz up to 70 m over a single Cat5e/6 cable with HDMI loop-out and PoC power

  • Distance70 m
  • Weight0.80
  • Sports TeamNO
  • Extends 4K video up to 50 metres over Cat5e/6/7 cable
  • Delivers 1080p signals to 70 metres with a single Ethernet run
  • HDMI loop-out on transmitter enables a local display at the source
  • Power over Cable lets the receiver draw power through the same link
  • Bidirectional IR passthrough keeps remote control working across the extension

4K30 HDMI extender over Ethernet

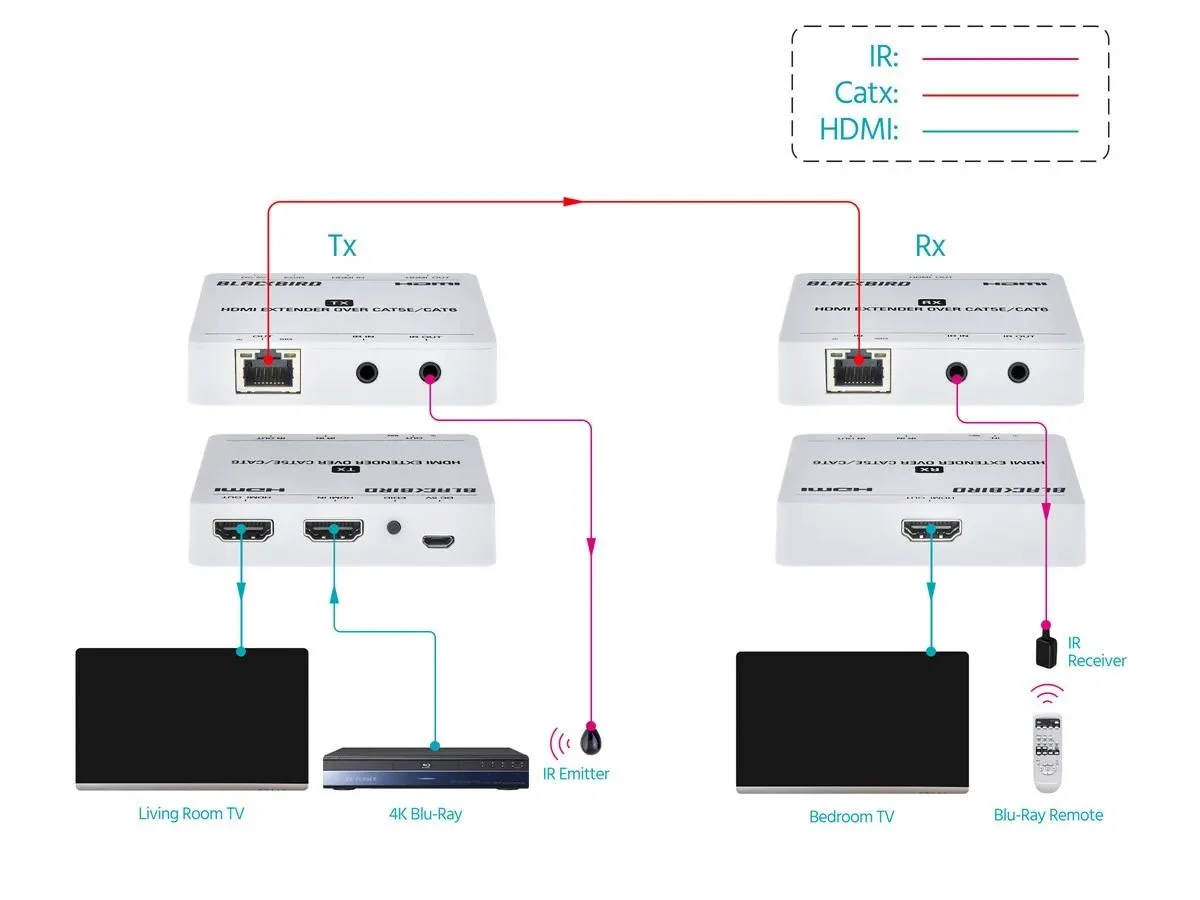

This Monoprice 43959 extender transmits HDMI signals up to 70 metres over a single Cat5e or Cat6 cable. It supports 4K resolution at 30 Hz with YCbCr 4:4:4 colour sampling. The transmitter includes an HDMI loop-out for a local display. Power over Cable lets the receiver draw power from the transmitter.

Range limits at 4K30 and 1080p60

At 4K 30 Hz the signal reaches 50 metres, while 1080p at 60 Hz extends to the full 70 metres. Both modes maintain YCbCr 4:4:4 chroma subsampling. The unit complies with HDMI 1.4 and HDCP 1.4 specifications. Smart EDID management handles display handshakes automatically.

Replaces short HDMI runs and separate power

This kit replaces direct HDMI cables that cannot reach beyond a few metres. It also removes the need for a local power outlet at the display side. The jump is worth it when the display sits farther than standard cable limits or when AC power is unavailable at the receiver location.

Privalumai

  • Extends 4K video up to 50 metres over Cat5e/6/7 cable
  • Delivers 1080p signals to 70 metres with a single Ethernet run
  • HDMI loop-out on transmitter enables a local display at the source
  • Power over Cable lets the receiver draw power through the same link
  • Bidirectional IR passthrough keeps remote control working across the extension

Specifikacijos

BrandMonoprice
Model143959
Part Number143959
Distance70 m
Weight0.80
Sports TeamNO
Siuntos svoris0.36 kg
Pakuotės dydis216 × 146 × 76 mm

Klausimai apie šią prekę

Will this 4K30 extender work with my existing Cat5e cable runs?

Yes, the unit extends 4K at 30 Hz up to 50 m and 1080p at 60 Hz up to 70 m over Cat5e, Cat6 or Cat7 cable.

How can I verify the link is passing 4K at 30 Hz correctly after installation?

Connect a local display to the transmitter's HDMI loop-out; if it shows the same 4K 30 Hz image the remote display receives, the link is operating as specified.

Does the package include the IR cables needed for remote control passthrough?

The transmitter and receiver units are included; IR emitter and receiver cables for bidirectional passthrough are sold separately.
