Green circuit board with silver heatsink and four blue USB ports on metal bracket

RIITOP

RIITOP 4-Port USB 3.0 PCIe x1 Expansion Card with Heatsink

SKU CH-C5QK-JD0ZE

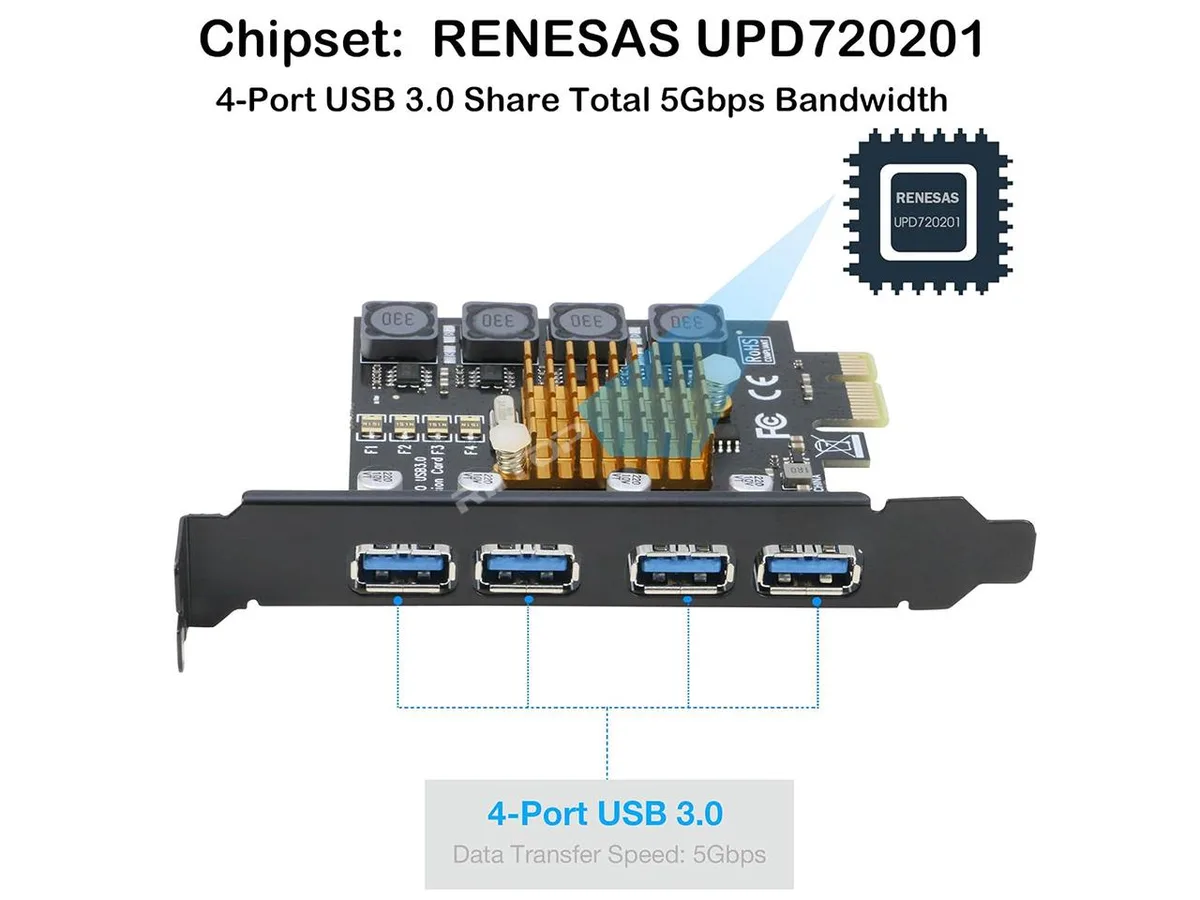

Adds four USB 3.0 Type-A ports through a PCIe x1 slot with a Renesas UPD720201 chipset, heatsink and self-powered design delivering 5 Gbps shared bandwidth

  • TypeUSB3.0 expansion card
  • External USB Ports4-port USB 3.0

Option 4 Port

  • Add four USB 3.0 Type-A ports via a single PCIe x1 slot
  • Renesas UPD720201 chipset shares 5Gbps bandwidth across all four ports
  • Built-in heatsink keeps the controller cool for stable operation
  • Self-powered design draws 5V/8A (40W total) from the motherboard, no extra power cable needed
  • Native driver support for Windows 11, 10, 8.x and Server 2012/2016/2019/2022 plus Ubuntu Linux

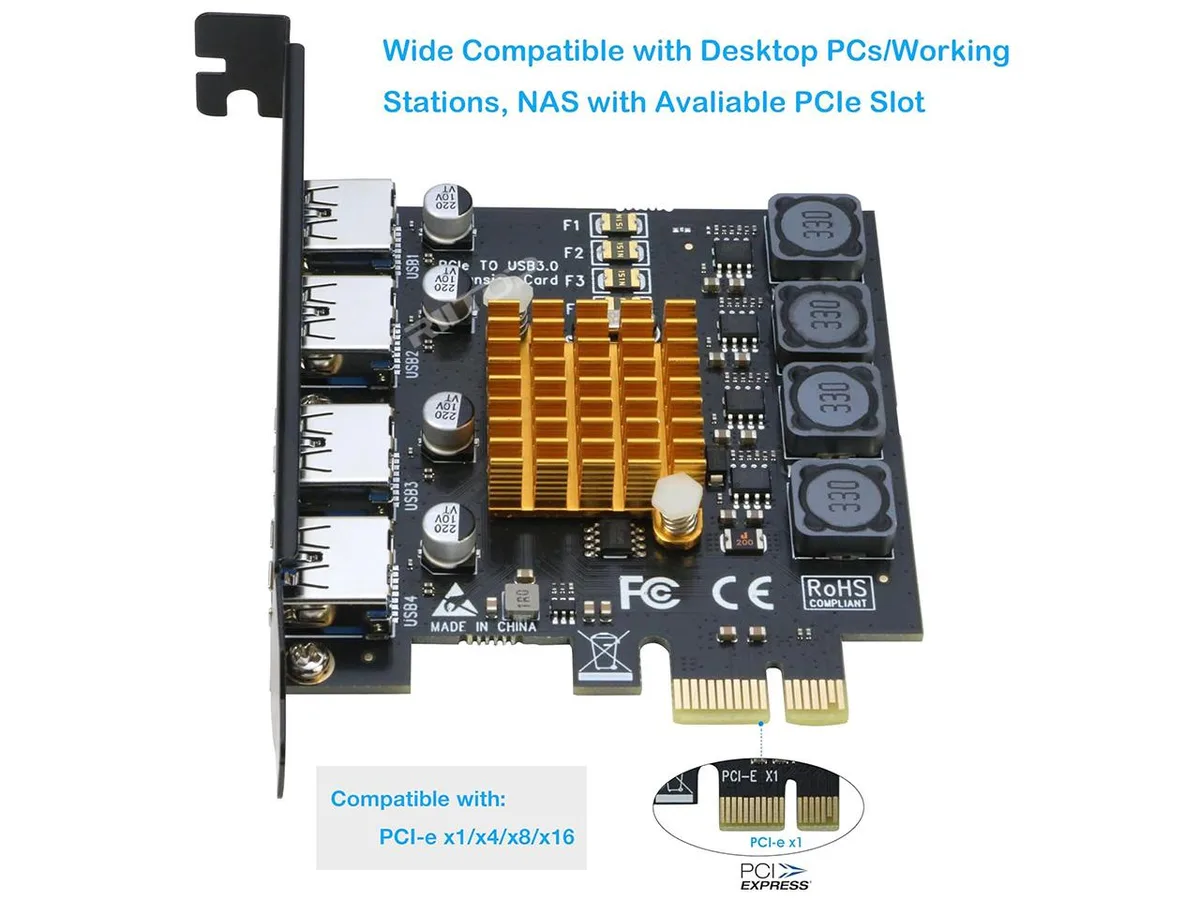

Four USB 3.0 ports on one PCIe x1 slot

This RIITOP expansion card adds four USB 3.0 Type-A ports to a desktop PC through a single PCIe x1 connection. It uses a Renesas UPD720201 controller and is aimed at users who need more high-speed ports for drives, cameras, printers or VR headsets. The card draws all power from the motherboard, so no extra cables are required. It supports Windows 11, 10, 8.x and Windows Server 2012 through 2022, plus Ubuntu Linux.

Shared 5 Gbps bandwidth and legacy support

All four ports share a total 5 Gbps bandwidth ceiling set by the USB 3.0 interface and the single-lane PCIe link. The controller is backward compatible with USB 2.0 and 1.1 devices, so older peripherals still work. Each port can deliver up to 10 W at 5 V and 2 A, with a combined limit of 40 W across the card. High-draw devices that exceed the motherboard slot power budget may not run reliably.

Passive heatsink and slot-powered design

An integrated aluminium heatsink covers the controller to keep temperatures down during sustained transfers. The card fits a standard low-profile bracket and occupies one rear slot. Because it needs no auxiliary power connector, installation is limited to seating the card and securing the bracket. Buyers who need more than four ports or dedicated high-current charging should look at powered hubs or cards with external power input.

Priekšrocības

  • Add four USB 3.0 Type-A ports via a single PCIe x1 slot
  • Renesas UPD720201 chipset shares 5Gbps bandwidth across all four ports
  • Built-in heatsink keeps the controller cool for stable operation
  • Self-powered design draws 5V/8A (40W total) from the motherboard, no extra power cable needed
  • Native driver support for Windows 11, 10, 8.x and Server 2012/2016/2019/2022 plus Ubuntu Linux

Specifikācijas

TypeUSB3.0 expansion card
External USB Ports4-port USB 3.0

Citas šī modeļa versijas

Vēl 1 šajā sērijā

Viena saime, taču atšķirīga atmiņa, dzesētājs vai frekvence — salīdziniet, pirms izlemjat.

Jautājumi par šo preci

Should I choose a PCIe x1 card or a different slot size for four USB 3.0 ports?

This card uses a PCIe x1 slot and adds four USB 3.0 Type-A ports, so it fits any x1, x4, x8 or x16 slot on your desktop motherboard.

What does the 5 Gbps figure mean when I plug in drives and cameras?

The four ports share a total 5 Gbps bandwidth from the Renesas UPD720201 chipset, so combined throughput across all devices cannot exceed that limit.

Does the PCIe x1 interface cap the speed of the USB 3.0 ports?

The card runs on a PCIe x1 link and delivers the full 5 Gbps USB 3.0 rate; no additional power cable is required because it draws up to 5 V/8 A (40 W) from the slot.
