Rectangular metal power supply with terminal outputs and built-in fan

ALITOVE 24V 15A 360W Industrial Power Supply

SKU CH-5M9W-4R3TQ

Delivers a regulated 24 V DC output at up to 15 A (360 W) from 110 V or 220 V AC with adjustable voltage, three output channels, built-in fan that starts at 45 °C, and overload, over-voltage.

  • TypeInverter Generators
  • Watts360 watts
  • Surge Wats360 watts
  • Engine BrandALITOVE
  • Voltage12
  • Amps8.5
  • Adjustable 24 V output with 5 % range for precise LED control
  • 360 W continuous power from 110 V or 220 V AC input
  • Overload, over-voltage, thermal and short-circuit protection built in
  • Fan starts at 45 °C for quiet, efficient cooling

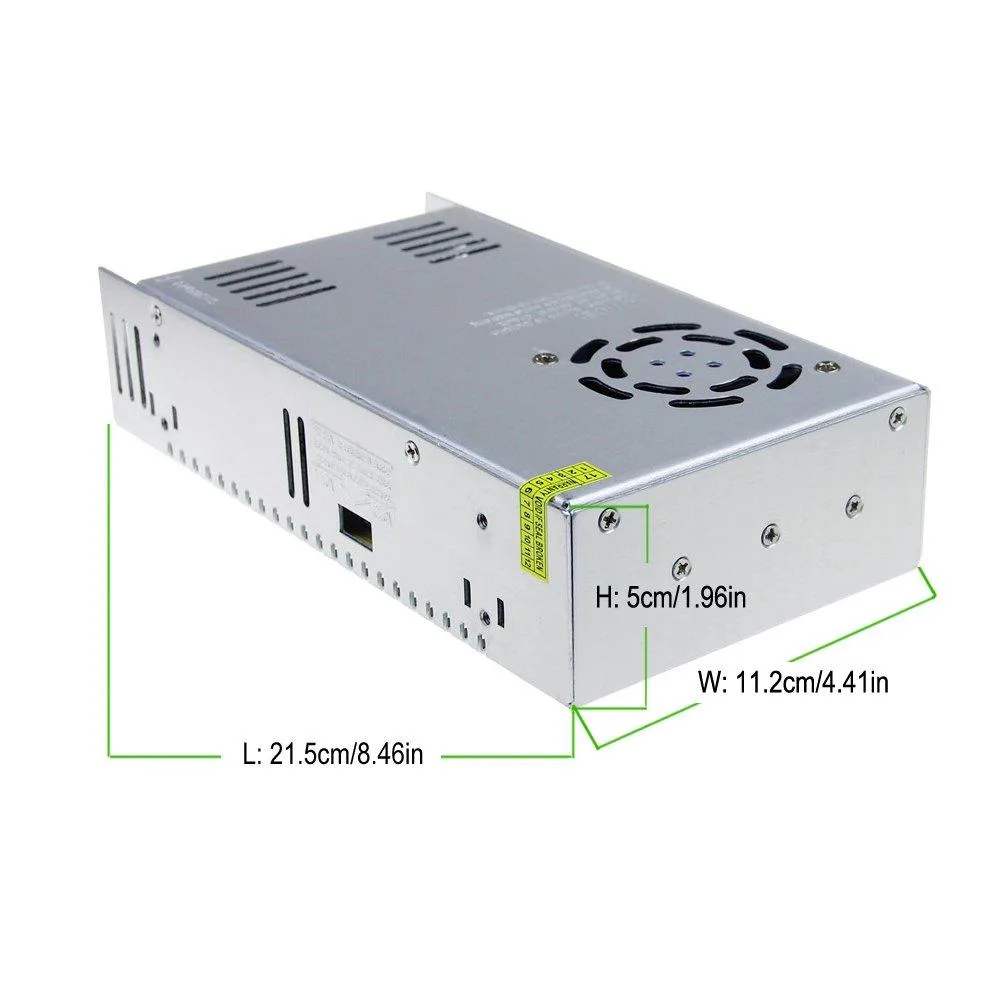

  • Compact 4.41 in x 8.46 in x 1.96 in design for indoor mounting

ALITOVE 24V 360W Industrial Supply

This ALITOVE unit is a regulated switching power supply that converts 110V or 220V AC input into a stable DC 24V output rated at 15A and 360W. It is built for indoor installations such as LED strip lighting, CCTV systems and radio equipment where consistent voltage matters.

Suits lighting and security installs.

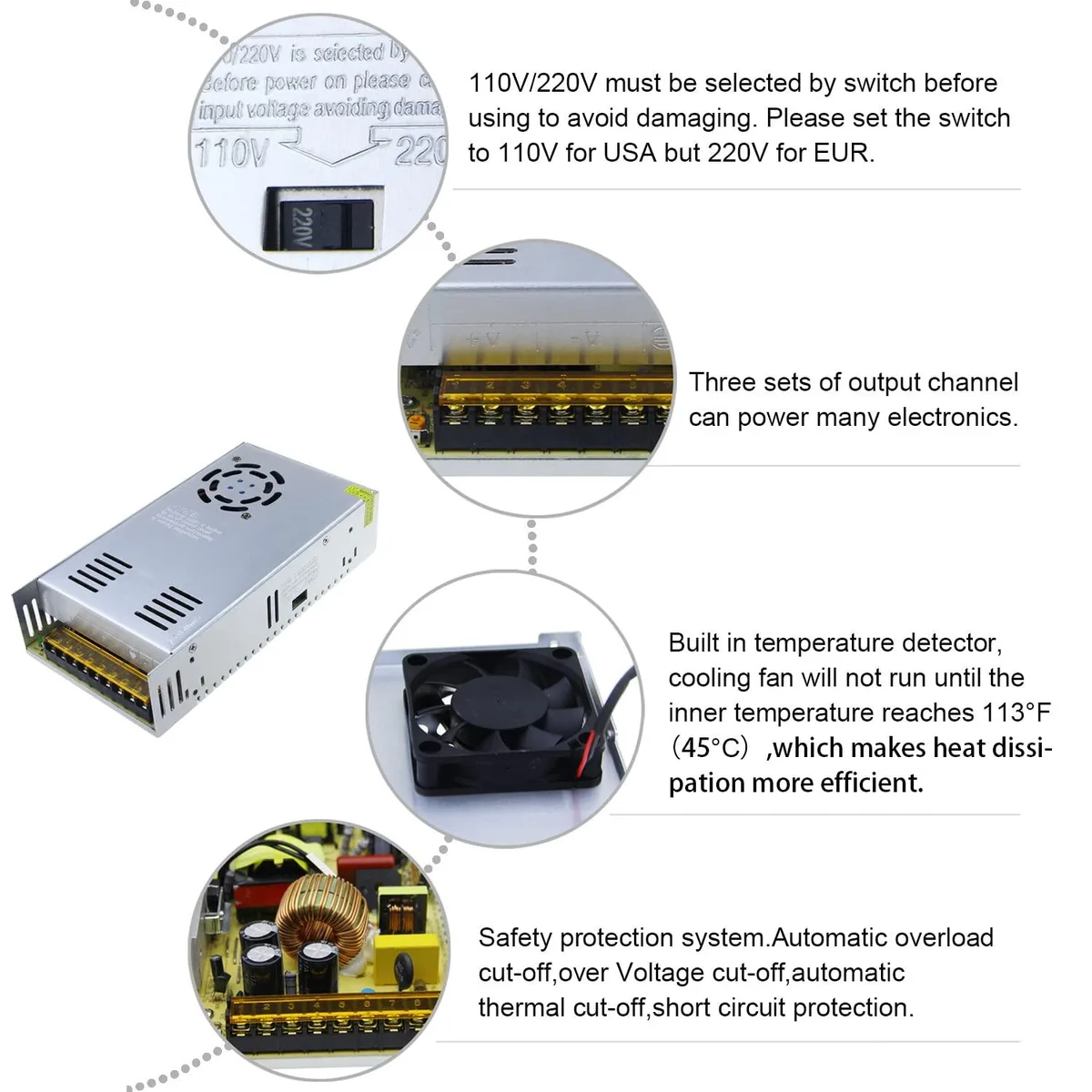

Installers running 24V LED strips, camera arrays or low-voltage radios will find the adjustable 5% output and three output channels convenient. The supply lacks weather proofing and a DC input option, so it cannot serve outdoor signage, vehicle-mounted gear or battery-backed systems.

360W continuous with thermal management

The unit delivers its full 360W continuously and the built-in fan spins up only when internal temperature reaches 113°F, keeping noise low during typical loads. Overload, over-voltage, thermal and short-circuit cut-offs protect connected devices, but there is no headroom beyond the rated 360W for sustained peaks.

Ciri-ciri utama

  • Adjustable 24 V output with 5 % range for precise LED control
  • 360 W continuous power from 110 V or 220 V AC input
  • Overload, over-voltage, thermal and short-circuit protection built in
  • Fan starts at 45 °C for quiet, efficient cooling
  • Compact 4.41 in x 8.46 in x 1.96 in design for indoor mounting

Spesifikasi

TypeInverter Generators
Watts360 watts
Surge Wats360 watts
Engine BrandALITOVE
Voltage12
Amps8.5
Size/Dimensions4.41 in x 8.46 in x 1.96 in
Horsepower15
Input Voltage24 volts_of_direct_current
Output Voltage24
Output Amps15 amps
Input Amps15 amps
Series4328506385
Compatibility/FitmentAdhesives; Enamels; Epoxies

Soalan tentang produk ini

What AC mains voltage range must be available at the installation site for the 110V/220V AC input?

The unit accepts AC 100V~120V or 200V~260V, so standard 110V or 220V mains supplies are compatible.

Can the three sets of output channels share the 15A rating with existing 24V loads such as LED strips or CCTV cameras?

Yes, the three output channels deliver a combined maximum of 15A at 24V, allowing multiple 24V devices to run simultaneously within that total.

How can I confirm the internal cooling fan is operating correctly after power-up?

The fan starts automatically once the internal temperature reaches 113°F (45°C); you will hear it spin up under sustained load.
