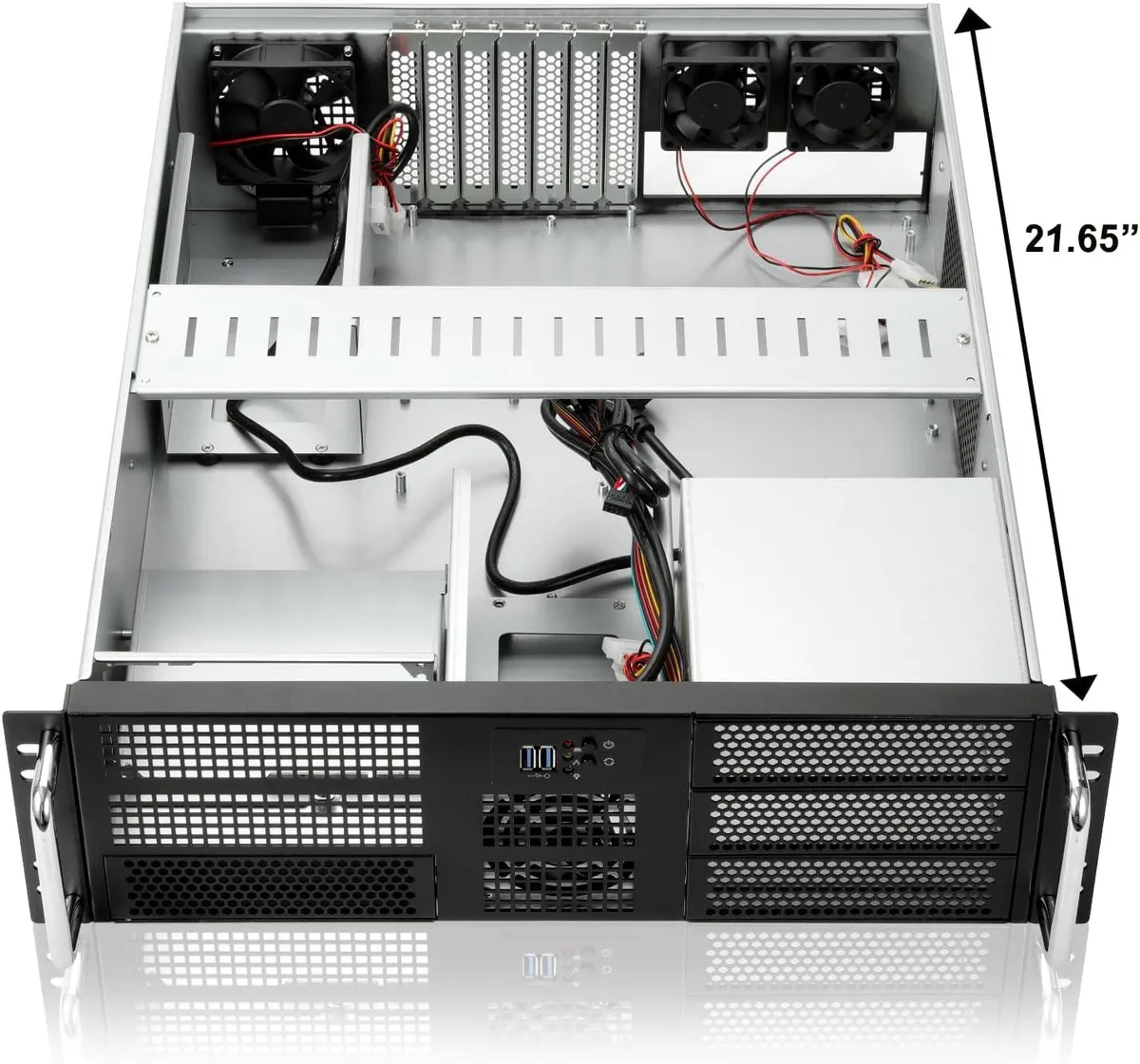

Silver 3U rackmount chassis with front drive bays and USB ports

BFKK

BFKK 3U Rackmount Server Chassis EATX/ATX/MATX 4x5.25 6x3.5 Top/Side Cooling

SKU CH-DQGW-W5D9T

A 3U rackmount server chassis supporting EATX, ATX and Micro-ATX motherboards with four 5.25-inch external bays and six internal 3.5-inch drive bays

  • Chassis TypeRackmount
  • Supports EATX, ATX and Micro-ATX motherboards up to 12 x 13 inches
  • Four 5.25-inch external bays plus six internal 3.5-inch drive bays
  • Pre-installed 80 mm and 60 mm fans with additional 80 mm fan space
  • Front-access USB 3.0 ports compatible with USB 2.0 devices
  • Accepts ATX PS2 PSU with side 80 mm or top 120 mm cooling

3U Rackmount Server Chassis

This 3U rackmount server chassis supports EATX, ATX and Micro-ATX motherboards. It provides four external 5.25-inch drive bays and six internal 3.5-inch drive bays. The unit is new and includes two front-access USB 3.0 ports compatible with USB 2.0 devices.

Cooling and power flexibility

Pre-installed fans include one 80 mm and two 60 mm units with space for an additional 80 mm fan. The design accepts ATX PS2 power supplies with either side-mounted 80 mm or top-mounted 120 mm cooling fans. Two extension power cords are included to fit a wider range of PSU dimensions.

Motherboard form-factor support

The maximum supported motherboard size is EATX at 12 by 13 inches, alongside standard ATX at 12 by 9.6 inches and Micro-ATX at 9.6 by 9.6 inches. Builders needing larger proprietary boards or more than six 3.5-inch internal bays should consider a different chassis.

Ciri-ciri utama

  • Supports EATX, ATX and Micro-ATX motherboards up to 12 x 13 inches
  • Four 5.25-inch external bays plus six internal 3.5-inch drive bays
  • Pre-installed 80 mm and 60 mm fans with additional 80 mm fan space
  • Front-access USB 3.0 ports compatible with USB 2.0 devices
  • Accepts ATX PS2 PSU with side 80 mm or top 120 mm cooling

Spesifikasi

Chassis TypeRackmount

Soalan tentang produk ini

How loud and hot does the 3U rackmount chassis get with the pre-installed 80 mm and 60 mm fans running continuously?

The case ships with one 80 mm fan, two 60 mm fans and space for another 80 mm fan; together they move air across the EATX/ATX/Micro-ATX board and six 3.5" drives while the ATX PSU exhausts through its own 80 mm or 120 mm fan.

Which motherboard form-factors and power-supply type must I already own to install in this chassis?

It accepts EATX 12x13, ATX 12x9.6 and Micro-ATX 9.6x9.6 boards and requires a standard ATX PS2 power supply.

Will my existing 5.25" optical drives and 3.5" hard disks fit without extra brackets?

Four front-accessible 5.25" bays and six internal 3.5" bays are built in, so legacy optical drives and mechanical disks mount directly.
