Compact silver metal box with rounded edges and visible rear ports

BOESIIPC

BOESIIPC barebone mini PC i3-8130U 16GB 256GB NVME WIFI6 BT 5.2

SKU CH-YT5T-B42XY

Fanless industrial mini PC with Core i3-8130U, 16 GB DDR4, 256 GB NVME, dual 2.5 GbE LAN, WIFI6 and Bluetooth 5.2 in a rugged metal chassis

  • Max Memory Supported32GB
  • Integrated GraphicsIntel UHD Graphics
  • Max LAN SpeedDual 2.5Gbps
  • Wireless LAN802.11ax
  • WiFi GenerationWi-Fi 6
  • BluetoothBluetooth 5.2

RAM SSD 16GB 256GB

  • i3-8130U dual-core up to 3.4GHz handles industrial workloads
  • 16GB DDR4 plus 256GB NVME storage expandable to 32GB RAM and 2.5-inch SATA
  • Dual 2.5Gbps LAN with Wi-Fi 6 and Bluetooth 5.2 for reliable connectivity
  • 6 COM RS232, 4 USB 3.0, HDMI 4K@60Hz and VGA support diverse peripherals
  • Fanless sealed metal chassis resists dust, shock and interference in harsh environments

Industrial Mini PC i3-8130U 16GB 256GB

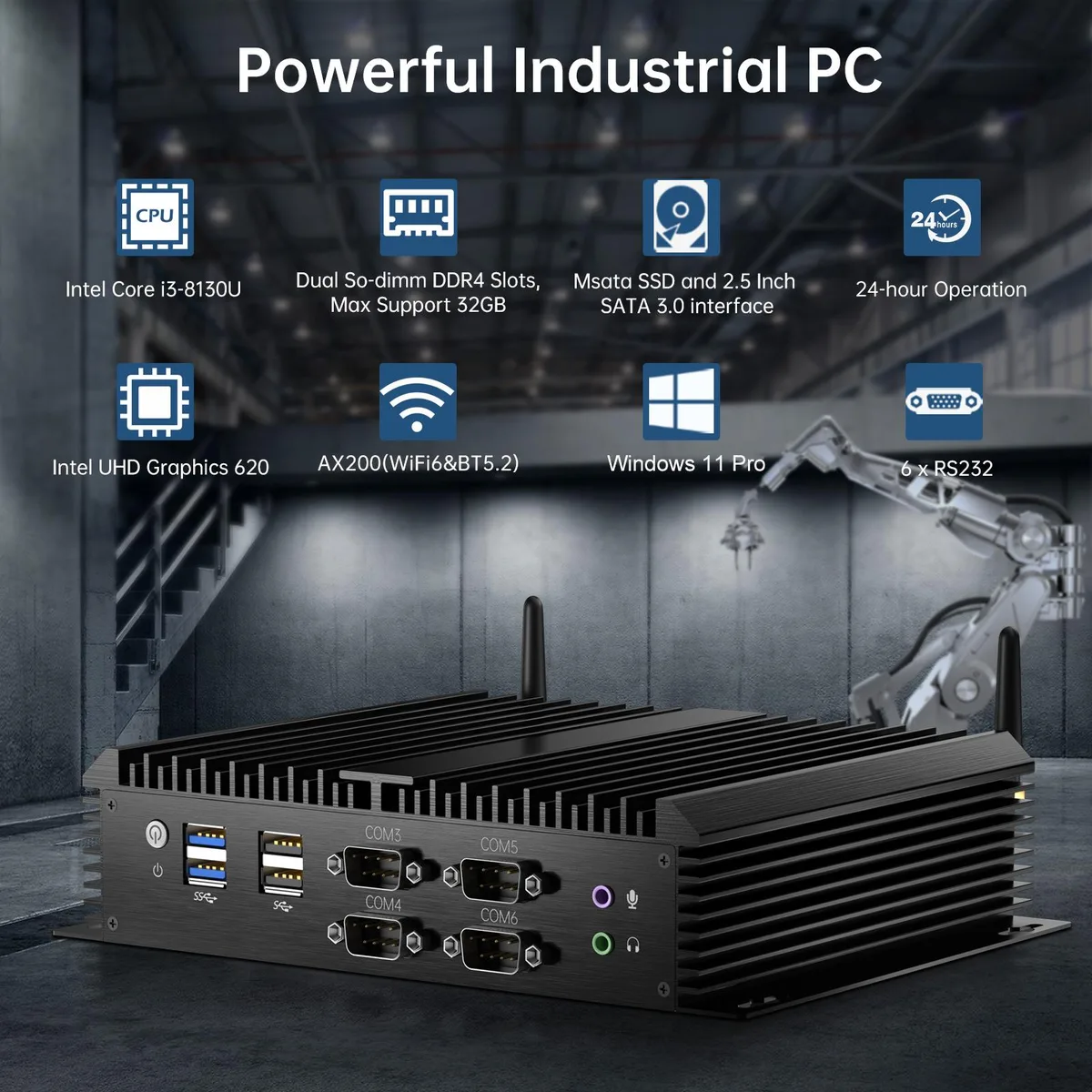

This compact barebone system arrives with an Intel Core i3-8130U processor running at 2.2GHz base and up to 3.4GHz boost. It includes 16GB DDR4 memory and a 256GB NVME SSD, plus a pre-installed Windows 11 Pro licence. The fanless metal chassis is built for continuous operation in dusty or vibration-prone locations.

Connectivity and expansion fit industrial workflows

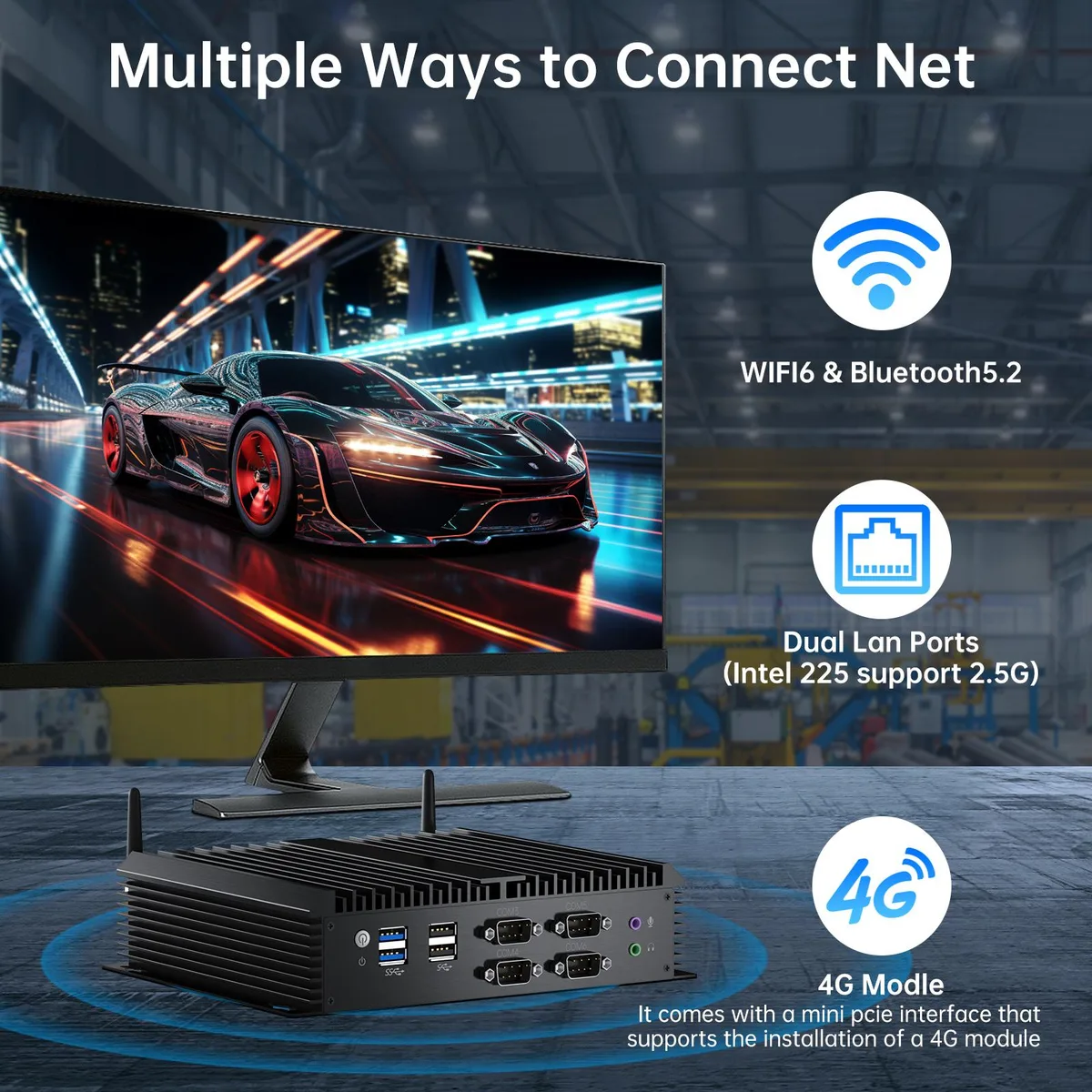

Dual 2.5Gbps LAN ports, Wi-Fi 6 and Bluetooth 5.2 handle modern network demands, while six COM RS232 ports support legacy serial equipment. Four USB 3.0 and two USB 2.0 sockets give ample peripheral bandwidth. An internal 2.5-inch SATA bay and an mSATA slot allow extra storage, and a mini PCIe slot accepts a 4G module. Buyers who need discrete graphics, additional video outputs beyond HDMI and VGA, or more than two LAN ports should look elsewhere.

HDMI 4K at 60Hz drives dual-display signage

The integrated Intel UHD Graphics 620 outputs 4K resolution at 60Hz over HDMI, with a second independent stream on VGA. This single specification decides whether the unit can drive the required display layout for digital signage, kiosk or monitoring stations.

Ciri-ciri utama

  • i3-8130U dual-core up to 3.4GHz handles industrial workloads
  • 16GB DDR4 plus 256GB NVME storage expandable to 32GB RAM and 2.5-inch SATA
  • Dual 2.5Gbps LAN with Wi-Fi 6 and Bluetooth 5.2 for reliable connectivity
  • 6 COM RS232, 4 USB 3.0, HDMI 4K@60Hz and VGA support diverse peripherals
  • Fanless sealed metal chassis resists dust, shock and interference in harsh environments

Spesifikasi

BrandIntel
Max Memory Supported32GB
Integrated GraphicsIntel UHD Graphics
Max LAN SpeedDual 2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6
BluetoothBluetooth 5.2
2.5" Internal Bays1
HDMI1
Rear USB6
RJ452

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

What dual-display resolutions can the HDMI and VGA ports drive?

HDMI supports 4K at 60Hz; VGA adds a second independent monitor for dual-screen setups.

Which internal drive bays and slots are available for storage expansion?

One M.2 NVMe slot, one mSATA slot, and one 2.5-inch SATA bay for SSD or HDD.

How is the RAM upgraded, and what is the maximum supported capacity?

Open the chassis, insert DDR4 SO-DIMMs into the two slots; the system supports up to 32GB total.
