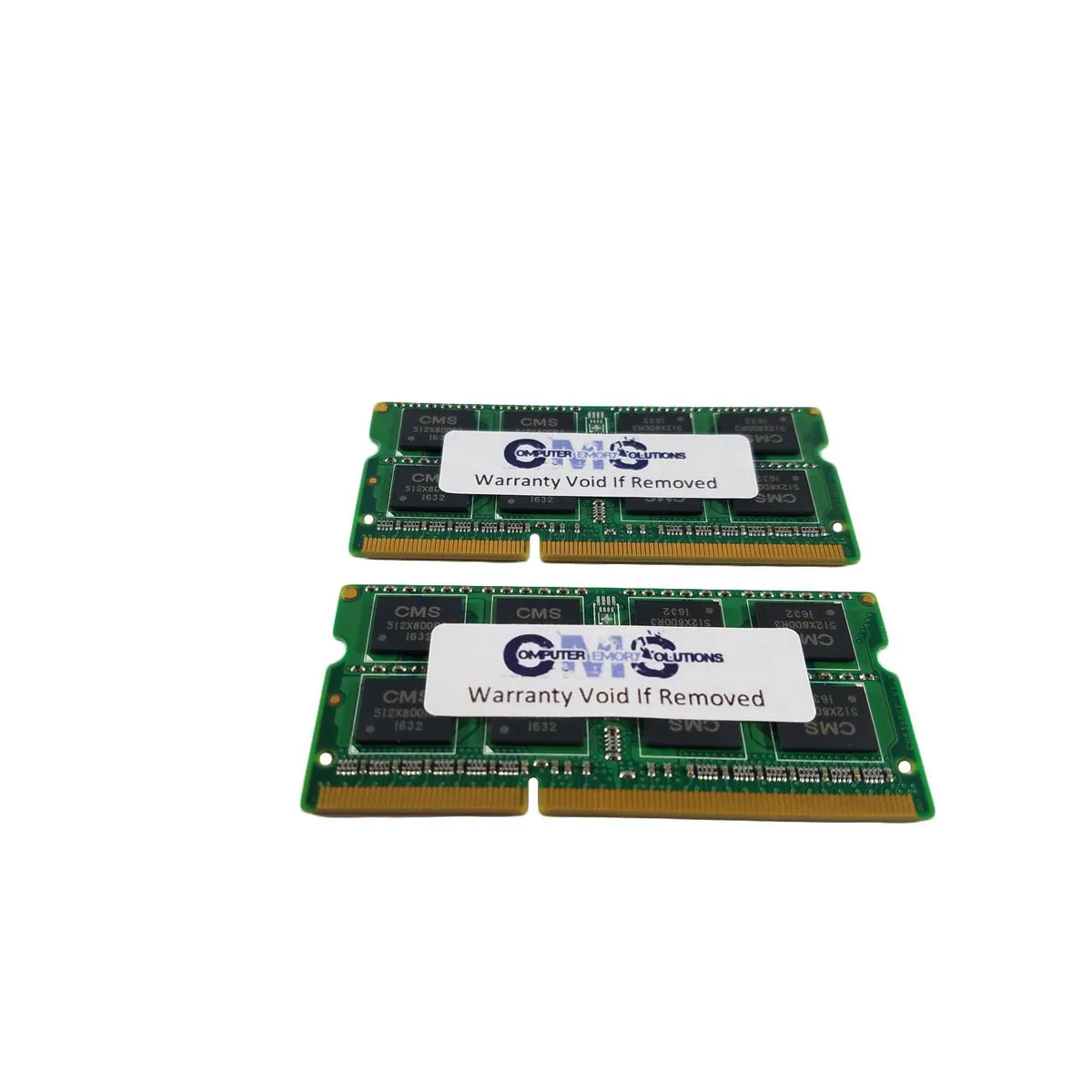

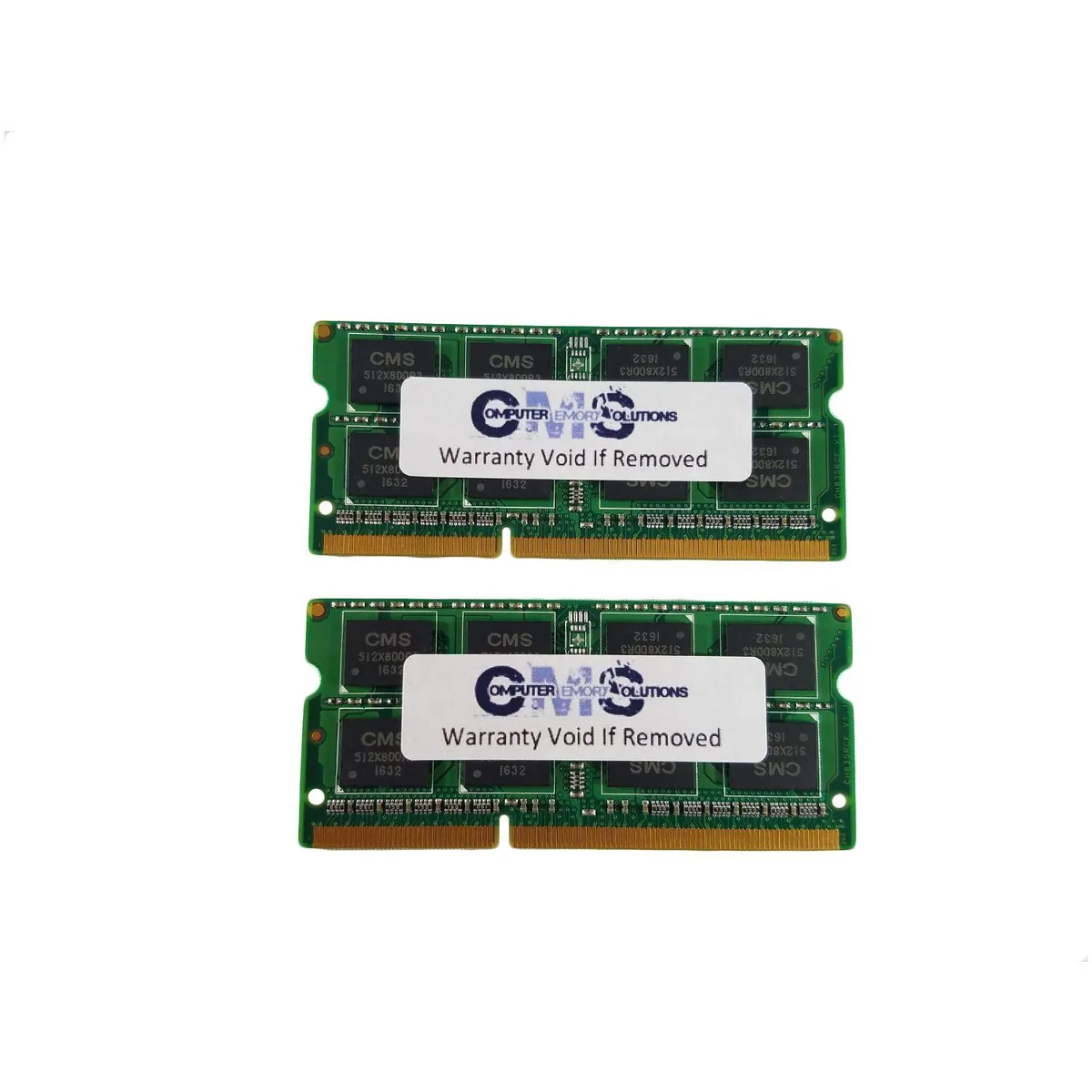

Two green circuit boards with black memory chips and gold edge connectors

Computer Memory Solutions

Computer Memory Solutions CM5126412800SOSRL 8GB DDR3L 1600 memory upgrade

SKU CH-CGHB-C34RR

8GB DDR3L 1600 two-stick kit for ZOTAC ZBOX BI322, BI323, BI324, BI325 and BI325 Plus systems

  • Capacity8GB (2 x 4GB)
  • Type204-Pin DDR3 SO-DIMM
  • SpeedDDR3L 1600 (PC3L 12800)
  • CAS LatencyCL11
  • Timing11-11-11
  • Voltage1.35V
  • 8GB dual-channel kit boosts responsive multitasking on ZOTAC ZBOX BI322, BI323, BI324, BI325, BI325 Plus
  • DDR3L 1600 speed at 1.35V lowers power draw versus standard DDR3 1.5V modules
  • CL11 11-11-11 timings deliver snappy application loading for everyday workloads
  • 204-pin SO-DIMM form factor fits both memory slots in supported ZBOX mini PCs
  • Major-brand chipset with lifetime warranty ensures reliable long-term operation

CM5126412800SOSRL 8GB DDR3L kit for ZOTAC ZBOX

This kit supplies 8GB of DDR3L memory in two 4GB SO-DIMM modules built for ZOTAC ZBOX BI322, BI323, BI324, BI325 and BI325 Plus systems. It runs at 1600MHz with CL11 timings and operates at 1.35V for low-power DDR3L compatibility. The 204-pin unbuffered design installs directly into the two available sockets.

Upgraders with matching ZOTAC ZBOX models

Owners of the listed ZBOX units who need the maximum 8GB capacity will find this kit a direct fit. Buyers whose systems require ECC, registered modules, higher voltage DDR3, or a different pin count should look elsewhere. The kit is not suited for desktops using full-size DIMM slots or for platforms limited to lower speeds.

204-pin DDR3L SO-DIMM at 1600MHz

The single specification that determines fit is the 204-pin DDR3L SO-DIMM interface running at 1600MHz (PC3L 12800). Only systems that accept this exact module type, voltage and speed will recognise the memory. Verify the ZBOX model number before ordering.

Ciri-ciri utama

  • 8GB dual-channel kit boosts responsive multitasking on ZOTAC ZBOX BI322, BI323, BI324, BI325, BI325 Plus
  • DDR3L 1600 speed at 1.35V lowers power draw versus standard DDR3 1.5V modules
  • CL11 11-11-11 timings deliver snappy application loading for everyday workloads
  • 204-pin SO-DIMM form factor fits both memory slots in supported ZBOX mini PCs
  • Major-brand chipset with lifetime warranty ensures reliable long-term operation

Spesifikasi

BrandComputer Memory Solutions
ModelCM5126412800SOSRL
Capacity8GB (2 x 4GB)
Type204-Pin DDR3 SO-DIMM
SpeedDDR3L 1600 (PC3L 12800)
CAS LatencyCL11
Timing11-11-11
Voltage1.35V
ECCNo
Buffered/RegisteredUnbuffered
Rank1Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemZOTAC ZBOX BI322, ZBOX BI323, ZBOX BI324, ZBOX BI325, ZBOX BI325 Plus
Package Content2 Memory RAM Sticks

Soalan tentang produk ini

How much heat and power does this 1.35V DDR3L kit draw when the ZBOX runs all day?

The modules operate at 1.35V DDR3L voltage, which is lower than standard DDR3, so they generate less heat and draw less power during continuous use in the ZBOX.

What must my ZBOX already have for this 204-pin SODIMM kit to work?

Your ZBOX needs two free 204-pin SO-DIMM slots and BIOS support for DDR3L 1600 (PC3L 12800) unbuffered non-ECC memory at 1.35V.

Will this CL11 1600MHz kit work reliably in my ZBOX BI322 alongside any original modules I keep?

The kit is guaranteed compatible with the ZBOX BI322, BI323, BI324, BI325 and BI325 Plus when installed as a matched 2 x 4GB set.
