Grey rectangular powered breadboard unit with white tie-point grid, red and black binding posts, two LED voltmeter displays

Electronix Express

Electronix Express Powered Solderless Breadboard 2390 Tie Points 3 Regulated Power Supplies 2 LED Voltmeters

SKU CH-NEQJ-E7QKT

A powered solderless breadboard with 2390 tie points, three regulated DC supplies including fixed +5V and variable ±15V rails, and dual LED voltmeters for 0-15V monitoring

  • TypePrototyping Products
  • Efficient circuit prototyping with 2390 solderless tie points
  • Three regulated DC supplies: fixed 5 V 1 A, variable ±15 V 500 mA each
  • Dual LED voltmeters display 0-15 V positive and negative rails
  • Adjustable voltage knobs, banana plugs and overcurrent protection for safe bench use

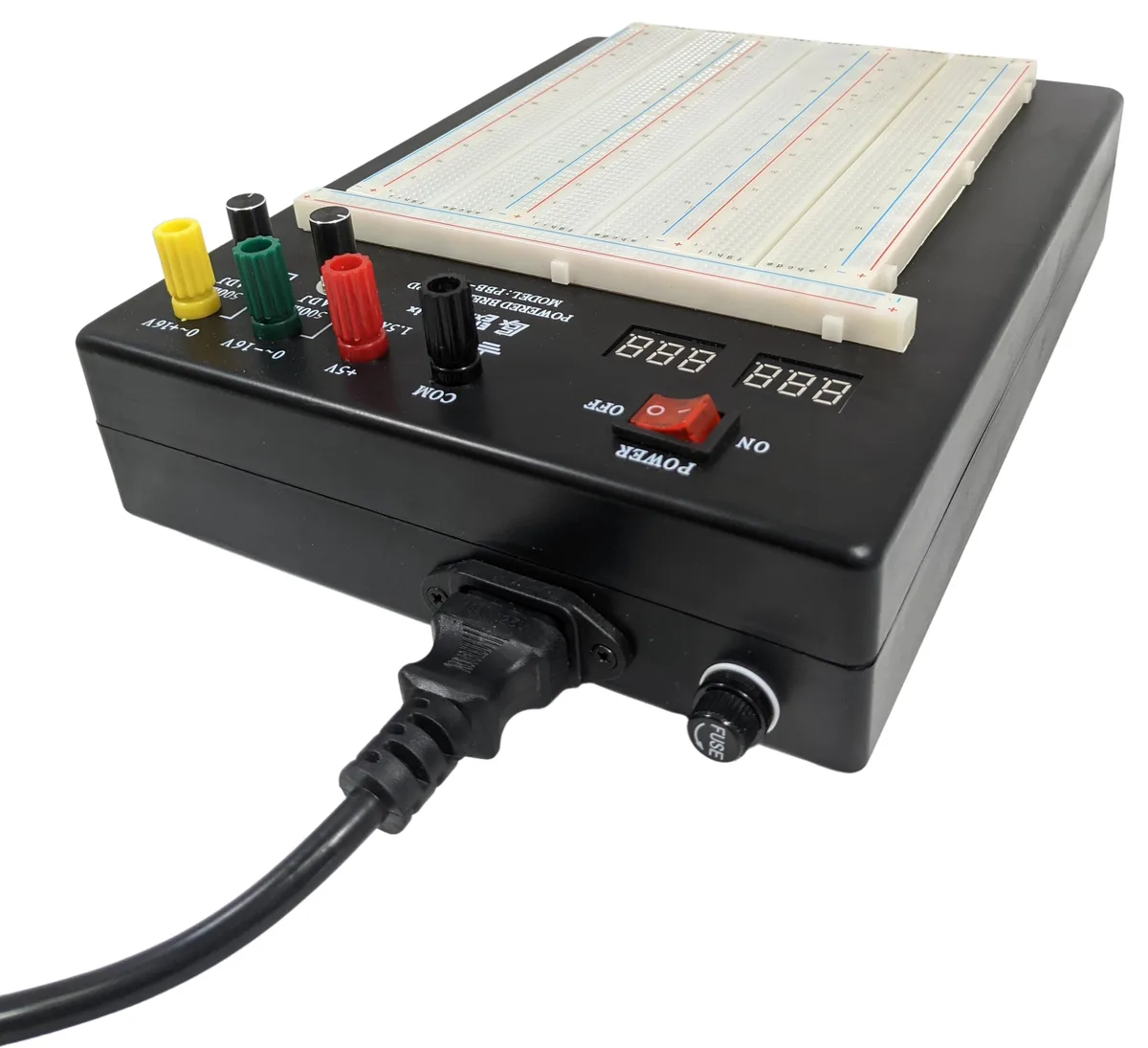

  • Universal 100-240 V AC input, 5.5 ft IEC cord, flame-resistant ABS case with rubber feet

Efficient Circuit Prototyping Platform

This powered solderless breadboard gives students, hobbyists and engineers a self-contained workspace for building and testing analogue and digital circuits. It combines a large tie-point area with three built-in regulated supplies so no external bench unit is required. The flame-resistant ABS case and illuminated switch make it ready for bench or classroom use.

Three Supplies and 2390 Tie Points

The board provides a fixed +5 V DC rail at 1 A plus variable 0 to +15 V and 0 to -15 V rails each at 500 mA, all accessible through banana plugs with overcurrent protection. Five distribution strips and three terminal strips deliver 2390 connection points for components and jumper wires. Two LED voltmeters display the positive and negative variable outputs in real time. A 5.5 foot IEC cord accepts 100 to 240 V AC input worldwide.

Thermals Noise and Power Draw

The linear regulators and enclosed supply run silently with no fan, so acoustic noise is limited to the faint click of the power switch. Heat stays low during typical prototyping loads thanks to the vented ABS chassis and rubber feet that promote passive airflow. Power draw from the mains scales with the combined output current of the three rails and remains modest for breadboard-scale experiments.

Ciri-ciri utama

  • Efficient circuit prototyping with 2390 solderless tie points
  • Three regulated DC supplies: fixed 5 V 1 A, variable ±15 V 500 mA each
  • Dual LED voltmeters display 0-15 V positive and negative rails
  • Adjustable voltage knobs, banana plugs and overcurrent protection for safe bench use
  • Universal 100-240 V AC input, 5.5 ft IEC cord, flame-resistant ABS case with rubber feet

Spesifikasi

TypePrototyping Products

Soalan tentang produk ini

What current limit will I hit first when running the ±15 V rails continuously?

Each variable 0 to 15 V supply is rated at 500 mA, so the 500 mA current limit on the positive or negative rail will be reached before the fixed 1 A +5 V rail.

How much heat and noise should I expect after hours of operation?

The unit has no fan; it relies on passive cooling through the flame-resistant ABS case, so it runs silently and produces only modest warmth under normal load.

What mains lead do I need to have on hand before powering it up?

A 5.5-foot flame-resistant IEC power cord is already attached, so no separate mains lead is required for 100 V to 240 V AC input.
