Black 5.25 inch internal front panel with card slots three USB Type-A ports one USB Type-C port and one eSATA port

EN-Labs

EN-Labs 5.25" Internal Card Reader USB 2.0 3×USB 3.0 Type-C eSATA Black

SKU CH-Q6JC-TBNZ8

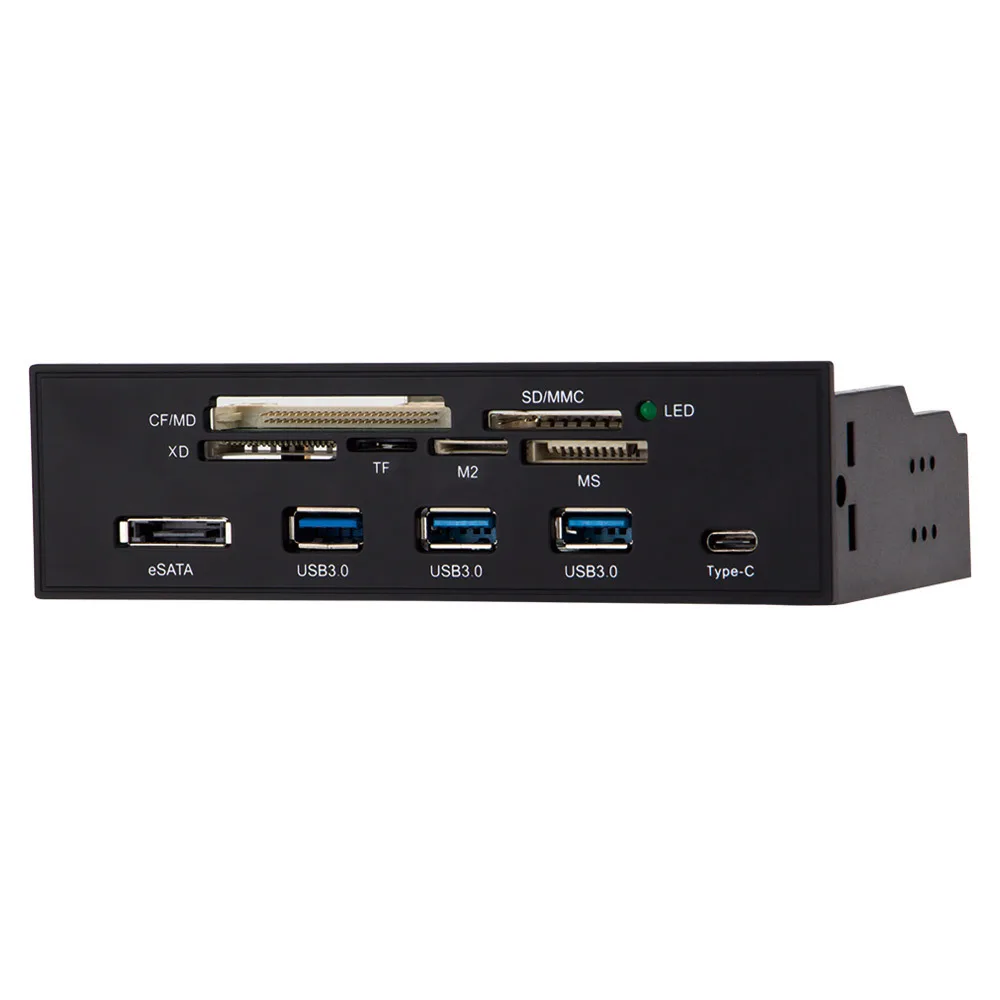

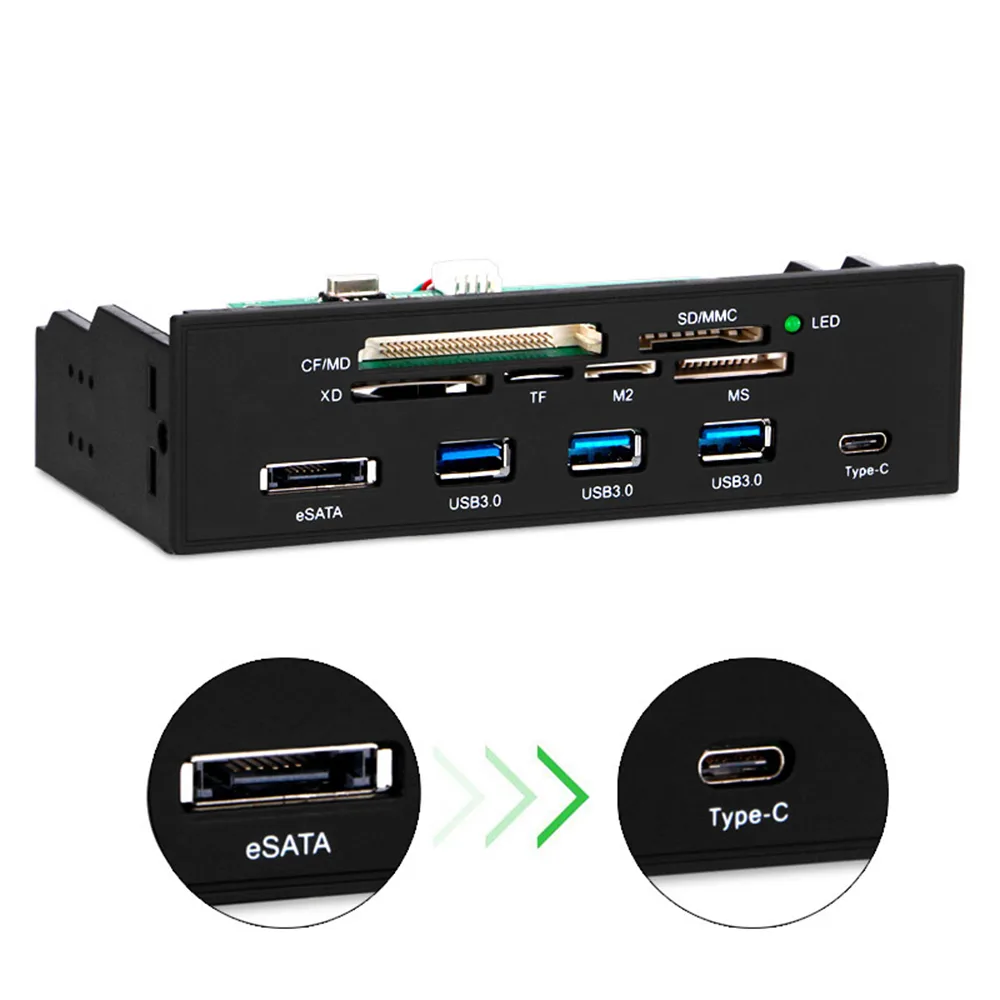

A 5.25" internal front panel with USB 2.0 card reader, three USB 3.0 Type-A ports, one USB 3.1 Type-C port and an eSATA port

  • Installation TypeInternal
  • ColorBlack
  • InterfaceUSB & eSATA
  • Support - Compact FlashYes
  • Support - Memory StickYes
  • Support - SDYes
  • Read many card formats with a 6-slot USB 2.0 reader
  • Add three USB 3.0 Type-A ports running at 5 Gbps
  • Connect USB 3.1 Type-C devices at up to 5 Gbps
  • Link eSATA drives with speeds up to 6 Gbps
  • Fits a standard 5.25 inch front bay for easy access

5.25" front panel card reader and hub

This internal 5.25" unit combines a USB 2.0 all-in-one card reader with a USB 3.0 hub and eSATA port. It fits a standard front bay and connects via motherboard USB 3.0 20-pin and USB 2.0 10-pin headers. The panel adds three USB 3.0 Type-A ports and one USB 3.1 Type-C port.

Builders who want front access to legacy cards

It suits builders who need to read CF, SD, XD, TF, M2 or Memory Stick media up to 32 GB capacity. The USB 3.0 ports deliver up to 5 Gbps bandwidth and remain backward compatible with USB 2.0 and 1.1. Users requiring faster card interfaces or internal drive bays should consider other options.

USB 2.0 card reader limited to 32 GB media

The integrated card reader operates over USB 2.0 and supports maximum memory capacities of 32 GB. This specification determines whether your existing media will work at full capacity.

Ciri-ciri utama

  • Read many card formats with a 6-slot USB 2.0 reader
  • Add three USB 3.0 Type-A ports running at 5 Gbps
  • Connect USB 3.1 Type-C devices at up to 5 Gbps
  • Link eSATA drives with speeds up to 6 Gbps
  • Fits a standard 5.25 inch front bay for easy access

Spesifikasi

Installation TypeInternal
ColorBlack
InterfaceUSB & eSATA
Support - Compact FlashYes
Support - Memory StickYes
Support - SDYes
Support - SmartMediaNo
Support - xDYes
Windows VistaWorks with Windows Vista
FeaturesA multi-function front panel device with USB 3.0 hub, card reader, USB 3.1 port, and eSATA port. It supports Super Speed USB 3.0 up to 5 Gbps bandwidth with three front accessible USB Type-A ports, one front accessible USB 3.1 Type-C port, one front accessible eSATA port, and all in 1 high speed card reader. The high speed card reader is compatible with most popular formats of flash media on the market, SD/MMC/SDHC, CF/CF II/HS CF/MD, MS/MS Duo/MS Pro, XD, TF/T-Flash, M2. The USB 3.0 hub is also backwards compatible with USB 2.0/USB1.0/USB1.1. It provides easy access of your data thr
Package Contents1 x 5.25" USB2.0 Card Reader Panel, 4 x Screws,user manual

Soalan tentang produk ini

Do I need specific motherboard headers to connect the USB 3.0 and USB 2.0 parts of this panel?

Yes, the panel requires a USB 3.0 20-pin header and a USB 2.0 10-pin header on your motherboard for the hub and card reader to function.

Will my older USB 2.0 flash drives work at full speed in the three Type-A ports?

The three USB 3.0 Type-A ports are backwards compatible with USB 2.0, 1.1 and 1.0 devices, so older drives will work at their native speed.

How can I confirm the card reader is reading my 32 GB CF card correctly after installation?

Insert the card; it should appear in File Explorer with the correct capacity and allow error-free file transfers to and from the drive.
