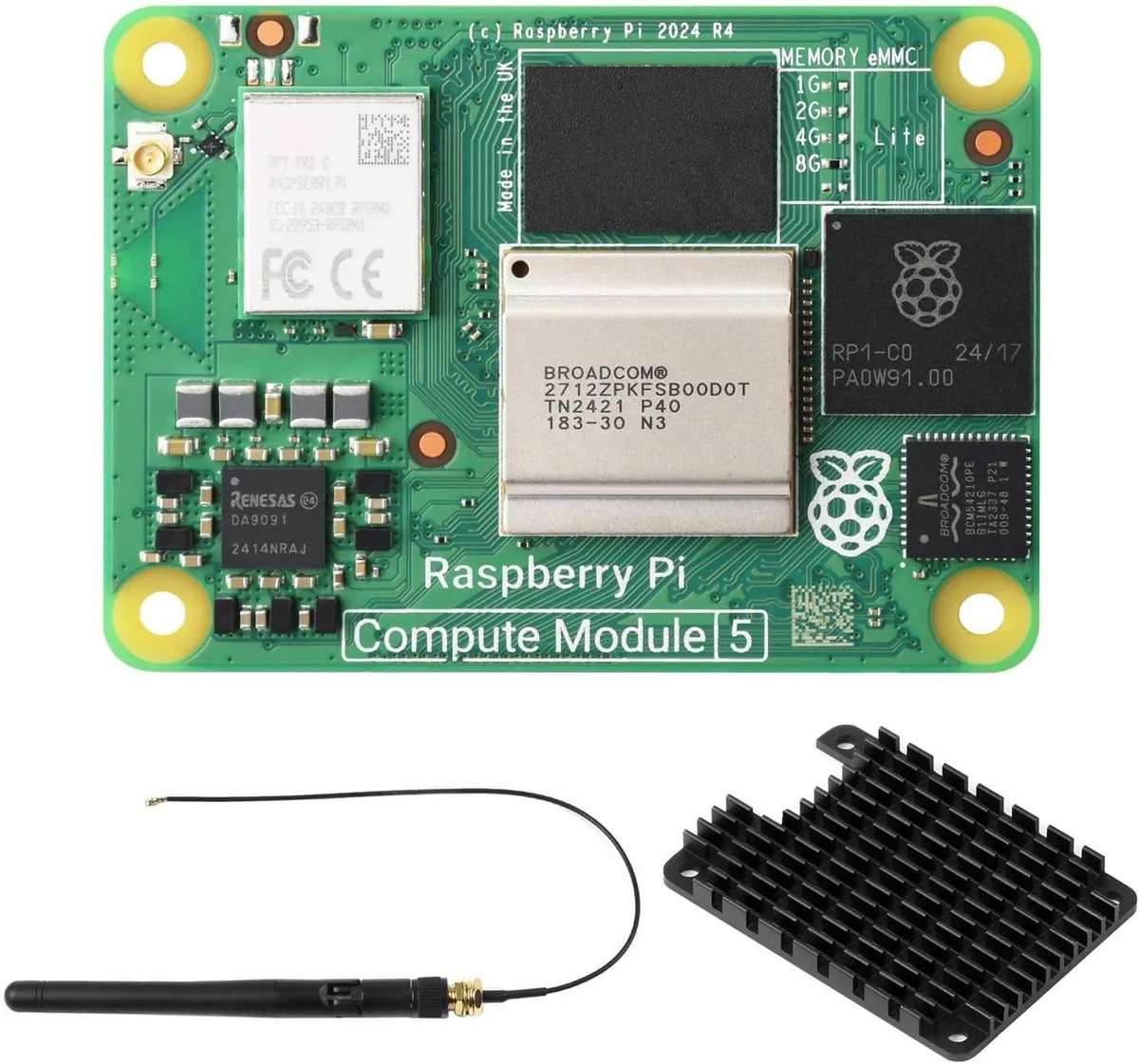

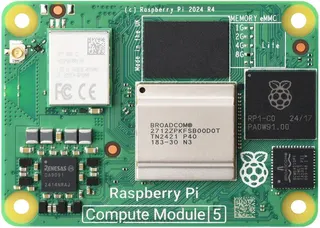

Raspberry Pi Compute Module 5 board with heatsink and antenna kit

Enfain

Enfain CM5108000 Compute Module 5 8GB Lite Wireless Antenna Heatsink development board

SKU CH-FYNR-HNG8Q

A Raspberry Pi Compute Module 5 with 8GB RAM, Lite eMMC, wireless antenna kit and heatsink for custom embedded systems

  • 8GB RAM powers demanding edge workloads
  • BCM2712 quad-core Cortex-A76 SoC delivers Raspberry Pi 5 performance
  • 0GB Lite eMMC frees storage choice for custom boards
  • Onboard Gigabit Ethernet PHY with IEEE1588 suits timed networks
  • PCIe Gen 2 x1 interface expands peripheral options

Compute Module 5 for custom embedded systems

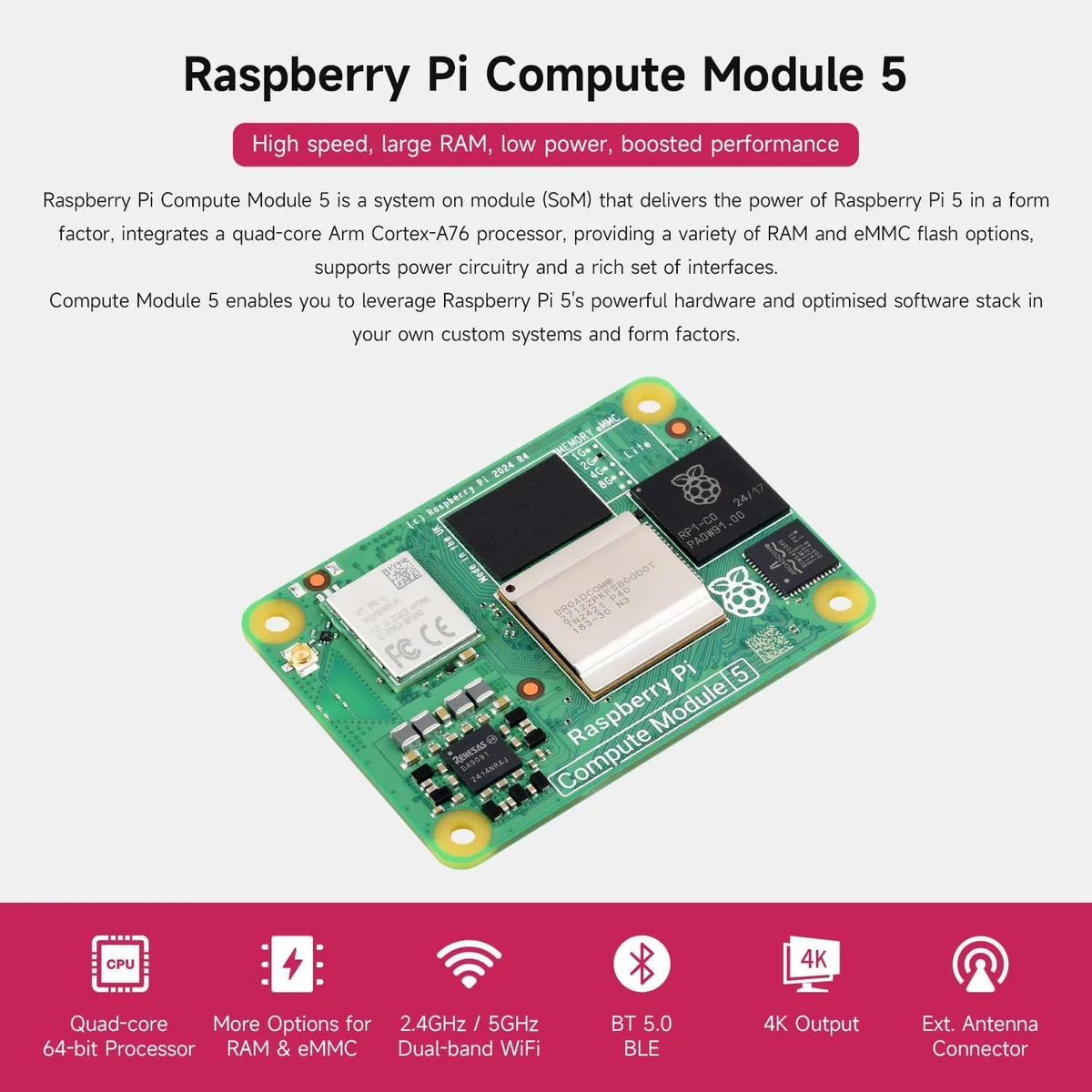

This development board bundles the official Raspberry Pi Compute Module 5 with 8 GB of RAM and no onboard eMMC flash. The BCM2712 quad-core Cortex-A76 processor delivers Raspberry Pi 5 class performance in a compact system-on-module form factor. It targets engineers building custom carrier boards for industrial or maker projects.

Carrier-board integration

The module uses B-to-B connectors compatible with existing Compute Module 4 carrier designs, easing migration. An external antenna kit is included for the certified radio module, while the supplied heatsink addresses thermal needs without requiring a custom cooling solution. Onboard Gigabit Ethernet PHY with IEEE 1588 support and a PCIe Gen 2 x1 interface provide wired networking and expansion without additional chips.

Sustained operation with external storage

Without onboard flash, the system boots from storage on the carrier board, allowing capacity choices that match workload write endurance. The heatsink maintains lower junction temperatures during continuous compute tasks, reducing throttling compared to an uncooled module. PCIe Gen 2 x1 bandwidth remains steady for attached peripherals under prolonged load.

Ciri-ciri utama

  • 8GB RAM powers demanding edge workloads
  • BCM2712 quad-core Cortex-A76 SoC delivers Raspberry Pi 5 performance
  • 0GB Lite eMMC frees storage choice for custom boards
  • Onboard Gigabit Ethernet PHY with IEEE1588 suits timed networks
  • PCIe Gen 2 x1 interface expands peripheral options

Spesifikasi

Belum ada spesifikasi diterbitkan untuk produk ini.

Soalan tentang produk ini

How much eMMC storage does the CM5108000 module provide for the operating system and data?

The module has 0 GB (Lite) eMMC flash, so you must boot from an external carrier board with an SD card slot or PCIe storage.

Does the included heatsink keep the BCM2712 processor cool enough for continuous full-load operation without a fan?

The heatsink is a passive aluminium block; it helps spread heat but the quad-core Cortex-A76 can still throttle under sustained heavy workloads without active airflow.

What carrier board or baseboard is required to use this Compute Module 5 development kit?

You need a CM5-compatible carrier board with B-to-B connectors that breaks out power, Gigabit Ethernet, PCIe Gen 2 x1 and the antenna U.FL port for the wireless kit.
