Compact green server motherboard with silver I/O ports and black SO-DIMM slot

GIGABYTE

GIGABYTE 9MADN9BHMR-SI server motherboard Intel N97 16GB DDR4 3200

SKU CH-DAVY-7YXT2 MPN 9MADN9BHMR-SI

Embedded server board with Intel Processor N97, 16 GB DDR4 3200, dual 1 GbE LAN, three HDMI outputs and 10×10 cm form factor

  • CPU TypeIntel Processor N97 Embedded
  • Number of DDR4 Slots1 x 260-pin
  • DDR4 StandardDDR4 3200
  • Maximum Memory Supported16GB
  • Other Slots1 x 2230 M.2 E-Key
  • SATA1 x SATA 6.0Gb/s
  • Intel Processor N97 embedded CPU for low-power server tasks
  • Single-channel DDR4 3200 SO-DIMM slot supporting up to 16GB
  • Dual 1Gbps LAN ports via Realtek RTL8111H for redundant networking
  • Three HDMI outputs plus one on front I/O for multi-display setups
  • Compact 10x10 form factor measuring 4.13" x 4.33" for space-constrained deployments

Compact embedded board for low-power edge workloads

The GIGABYTE 9MADN9BHMR-SI integrates an Intel Processor N97 with a single 260-pin DDR4 3200 SO-DIMM slot supporting up to 16GB. Dual 1GbE LAN ports and three HDMI outputs suit digital signage, kiosks or thin-client deployments where space and power are constrained.

Sustained operation within a 12-24VDC input range

The N97’s four efficient cores maintain steady throughput for streaming or data-logging tasks without thermal spikes. A single SATA 6.0Gb/s port and an M.2 2280 M-Key slot running PCIe Gen 3x1 or SATA provide local storage that keeps pace with continuous write workloads.

4.13" x 4.33" 10x10 form factor with versatile I/O

Two USB 3.2 Gen 2x1 ports on each face, a RS-232 COM header and Realtek ALC269 audio cover legacy and modern peripherals. Screw-type DC jack, CPU fan header and front-panel connectors simplify integration into sealed enclosures, while the 2230 E-Key slot leaves room for a wireless module. Builders needing more than one SATA drive or dual-channel memory should look elsewhere.

Ciri-ciri utama

  • Intel Processor N97 embedded CPU for low-power server tasks
  • Single-channel DDR4 3200 SO-DIMM slot supporting up to 16GB
  • Dual 1Gbps LAN ports via Realtek RTL8111H for redundant networking
  • Three HDMI outputs plus one on front I/O for multi-display setups
  • Compact 10x10 form factor measuring 4.13" x 4.33" for space-constrained deployments

Spesifikasi

BrandGIGAIPC
ModelQBi-N97B
CPU TypeIntel Processor N97 Embedded
Number of DDR4 Slots1 x 260-pin
DDR4 StandardDDR4 3200
Maximum Memory Supported16GB
Other Slots1 x 2230 M.2 E-Key
SATA1 x SATA 6.0Gb/s
M.21 x 2280 M.2 M-Key (PCIe Gen 3x1, SATA 6Gb/s)
Audio ChipsetRealtek ALC269
LAN ChipsetRealtek RTL8111H
LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps

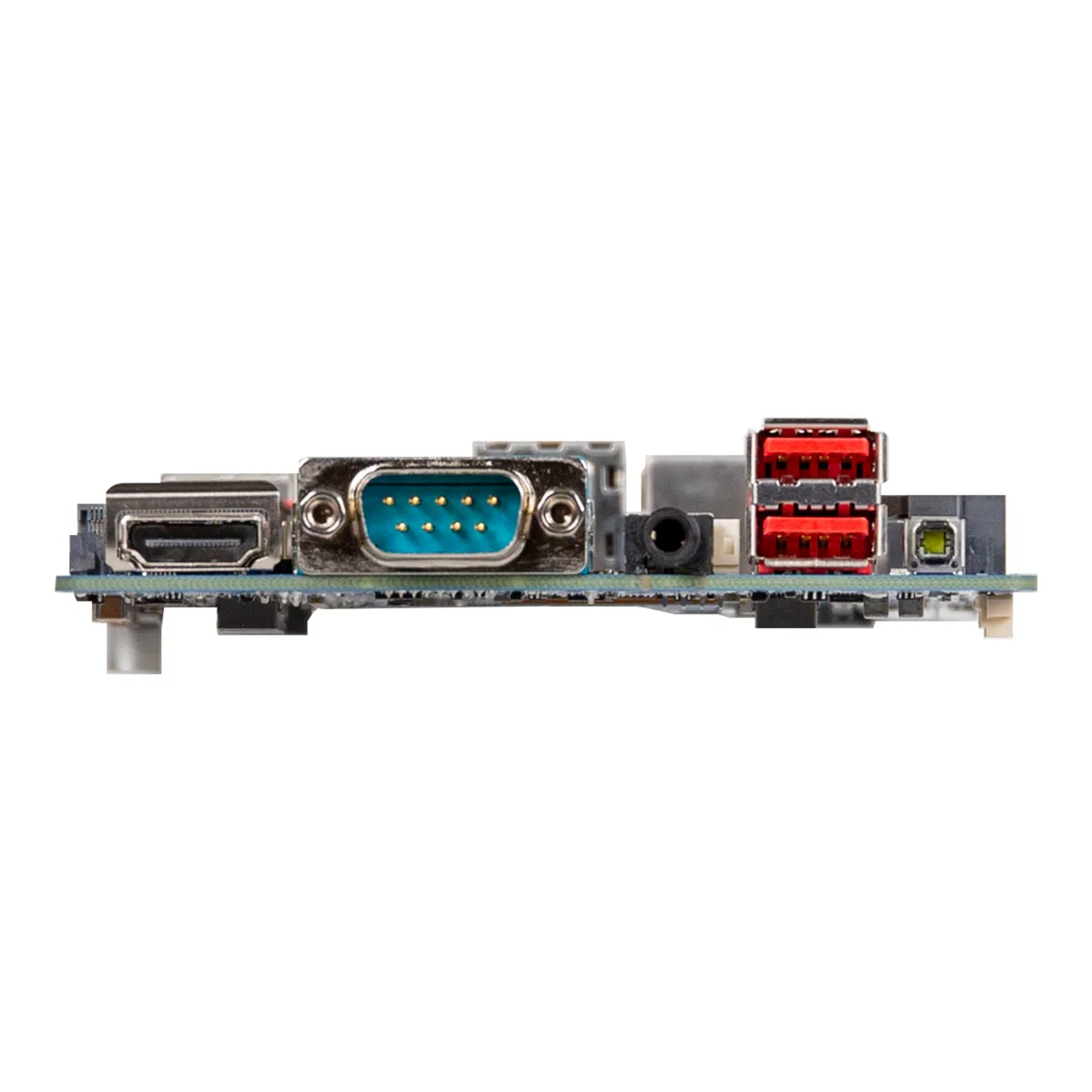

Back I/O PortsFront I/O
2 x USB 3.2 Gen 2x1
1 x Power button with LED
1 x COM Port (RS-232)
1 x Combo audio jack (Headphone & Headset)
1 x HDMI

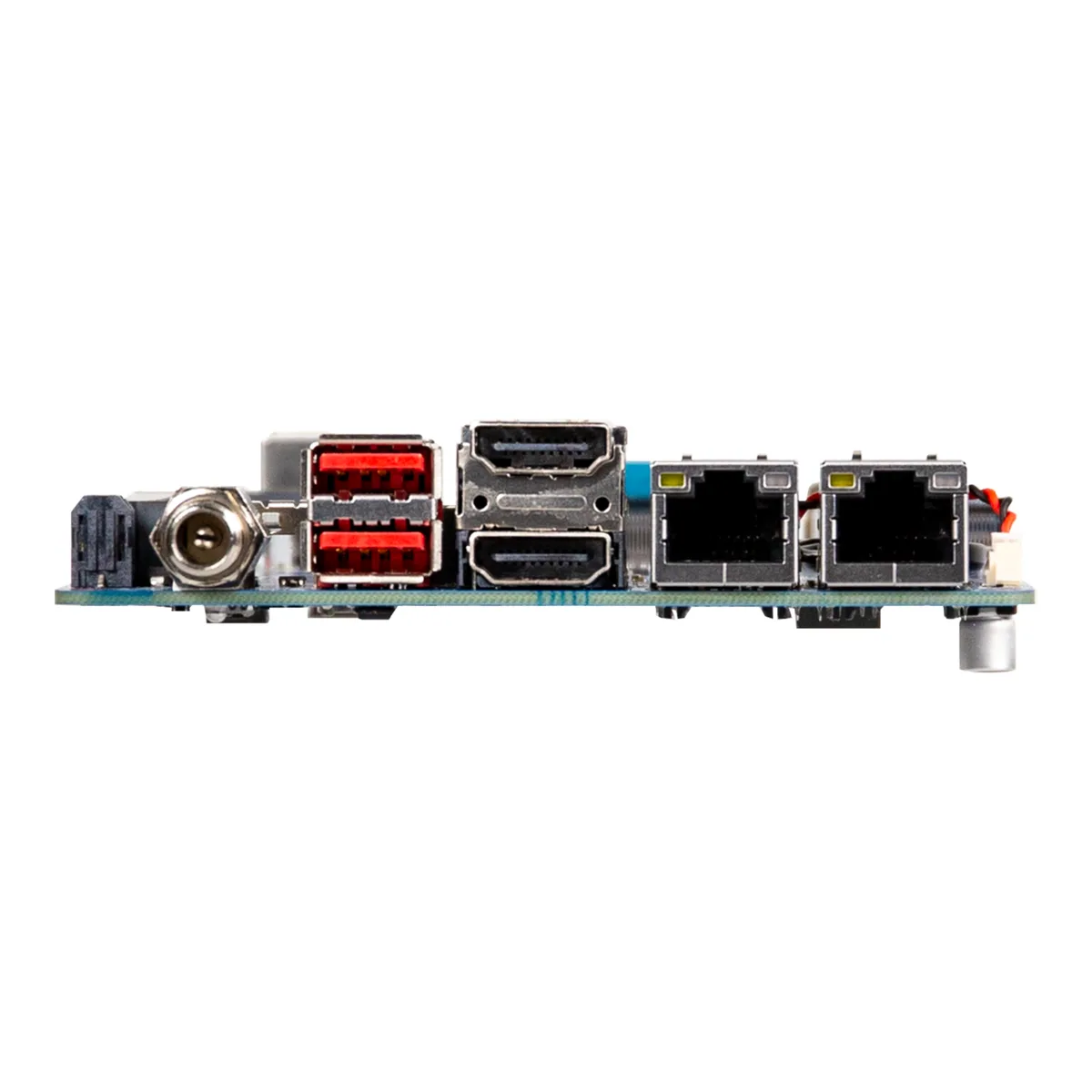

Rear l/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x HDMI
1 x Screw type DC Jack (+12V~24VDC)
Other Connectors1 x 2-pin power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
1 x Speaker out header
2 x USB 2.0 headers
Form Factor10x10 M/B
Dimensions (W x L)4.13" x 4.33"
Berat penghantaran1.70 kg
Dimensi bungkusan249 × 173 × 102 mm

Soalan tentang produk ini

How much power does the Intel N97 processor draw under continuous load?

The Intel Processor N97 Embedded has a 12 W base power rating, so the board stays cool and quiet during all-day operation with the included CPU fan header.

Which memory module do I need to add before the board will boot?

You must supply one 260-pin DDR4 3200 SO-DIMM up to 16 GB; the board has a single slot and no memory is pre-installed.

Can I keep using my existing 2.5-inch SATA SSD with this motherboard?

Yes, the board provides one SATA 6.0 Gb/s port and a dedicated SATA power header for a 2.5-inch drive.
