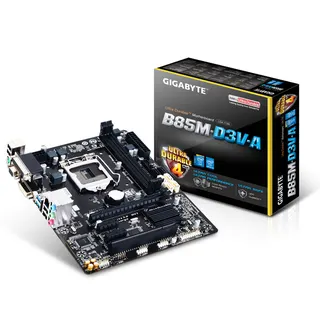

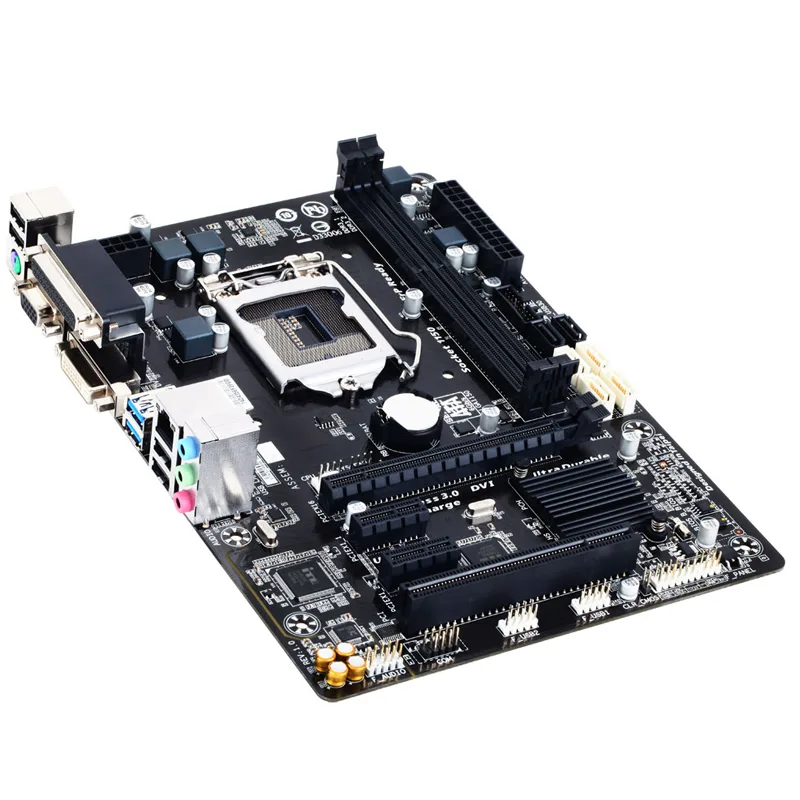

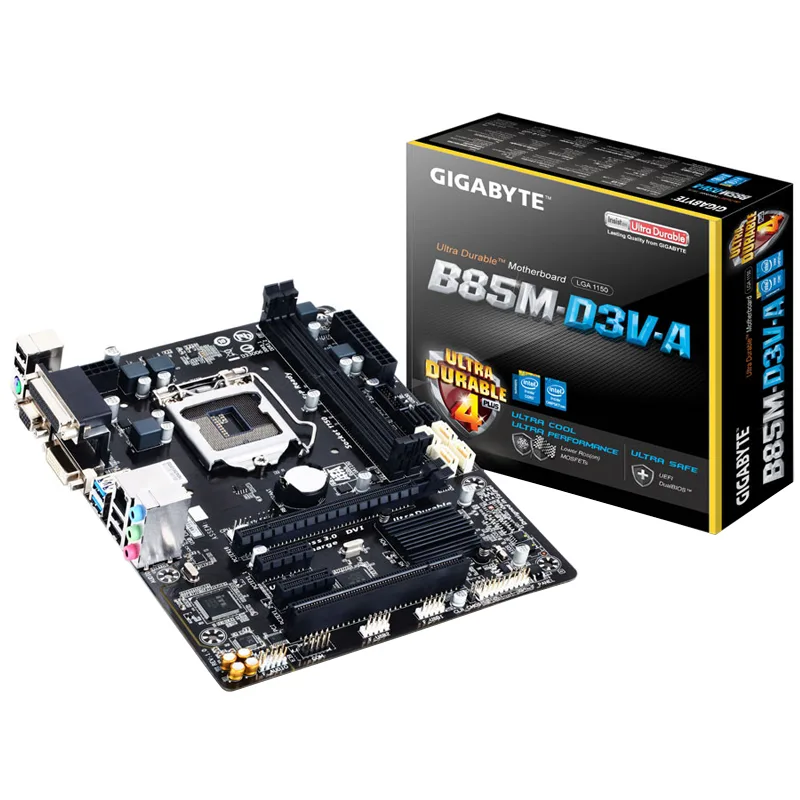

Green Micro ATX motherboard with silver ports and black slots

GIGABYTE

GIGABYTE B85M-D3V-A motherboard accessory

SKU CH-HT8Y-CBQQM

Micro-ATX LGA 1150 board with Intel B85 chipset, dual DDR3 slots up to 16 GB, Realtek ALC887 audio and gigabit LAN

  • Supports up to 16GB DDR3 memory
  • Intel B85 chipset for LGA 1150 processors
  • Integrated Realtek ALC887 8-channel audio
  • Onboard Realtek gigabit network card
  • Micro ATX form factor measuring 24.4 × 17.4cm

Chipset and Socket

This Gigabyte B85M-D3V-A motherboard accessory uses the Intel B85 chipset and an LGA 1150 socket. It accepts Intel 22nm Core i7, i5, i3, Pentium and Celeron processors. The Micro ATX form factor measures 24.4 × 17.4cm and fits compatible chassis.

Build Suitability

The board suits builders assembling a compact system with two DDR3 DIMM slots supporting up to 16 GB of memory. It is not for users who require four memory slots or a different socket type. The three-phase power delivery uses one 8-pin and one 24-pin connection.

Maximum Memory Capacity

The single specification that decides fit is the 16 GB maximum memory capacity across two DDR3 DIMM slots. If your planned configuration stays within that limit the board matches the requirement; if you need more capacity you must select a different motherboard.

Ciri-ciri utama

  • Supports up to 16GB DDR3 memory
  • Intel B85 chipset for LGA 1150 processors
  • Integrated Realtek ALC887 8-channel audio
  • Onboard Realtek gigabit network card
  • Micro ATX form factor measuring 24.4 × 17.4cm

Spesifikasi

BrandGIGABYTE
ModelB85M-D3V-A

Soalan tentang produk ini

How much DDR3 memory can the B85M-D3V-A accept before it stops recognising it?

The board supports a maximum of 16 GB across its two DDR3 DIMM slots.

What power connectors must the PSU provide for the B85M-D3V-A to run continuously?

It requires one 24-pin ATX connector and one 8-pin CPU power connector fed by a three-phase supply design.

Which processor socket must the buyer already have to install this motherboard?

The board uses the LGA 1150 socket, so a compatible Intel Core i7, i5, i3, Pentium or Celeron 22 nm processor is required.
