Black metal mobile rack for one 2.5 inch drive in a slim bay

ICY DOCK

ICY DOCK MB411SPO-B 2.5" SATA/SAS HDD/SSD mobile rack

SKU CH-CFFR-VA4AJ MPN MB411SPO-B

A full-metal mobile rack that hot-swaps one 2.5" SATA or SAS drive into a slim optical or floppy bay

  • ColorBlack
  • Mobile Rack InterfaceSATA I/II/III
  • Protection CaseSingle Drive
  • Compatible ProductsSingle 2.5" SAS/SATA HDD/SSD (SAS host required for SAS driv
  • SpecificationsDevice Interface : Single 22pin SATA (Support SAS single cha

Model ToughArmors Slim ODD

Lihat 4 konfigurasi lagi

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

Option ToughArmor Slim ODD MinSATA

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • Fits slim ODD or FDD bays with ultra-small form factor
  • Full metal construction withstands harsh environments
  • Hot-swap EZ Slide Micro tray enables tool-free drive changes
  • Supports 2.5" SATA/SAS drives up to 6Gbps
  • Accommodates 7mm to 9.5mm drive heights

Mobile rack for slim optical bay

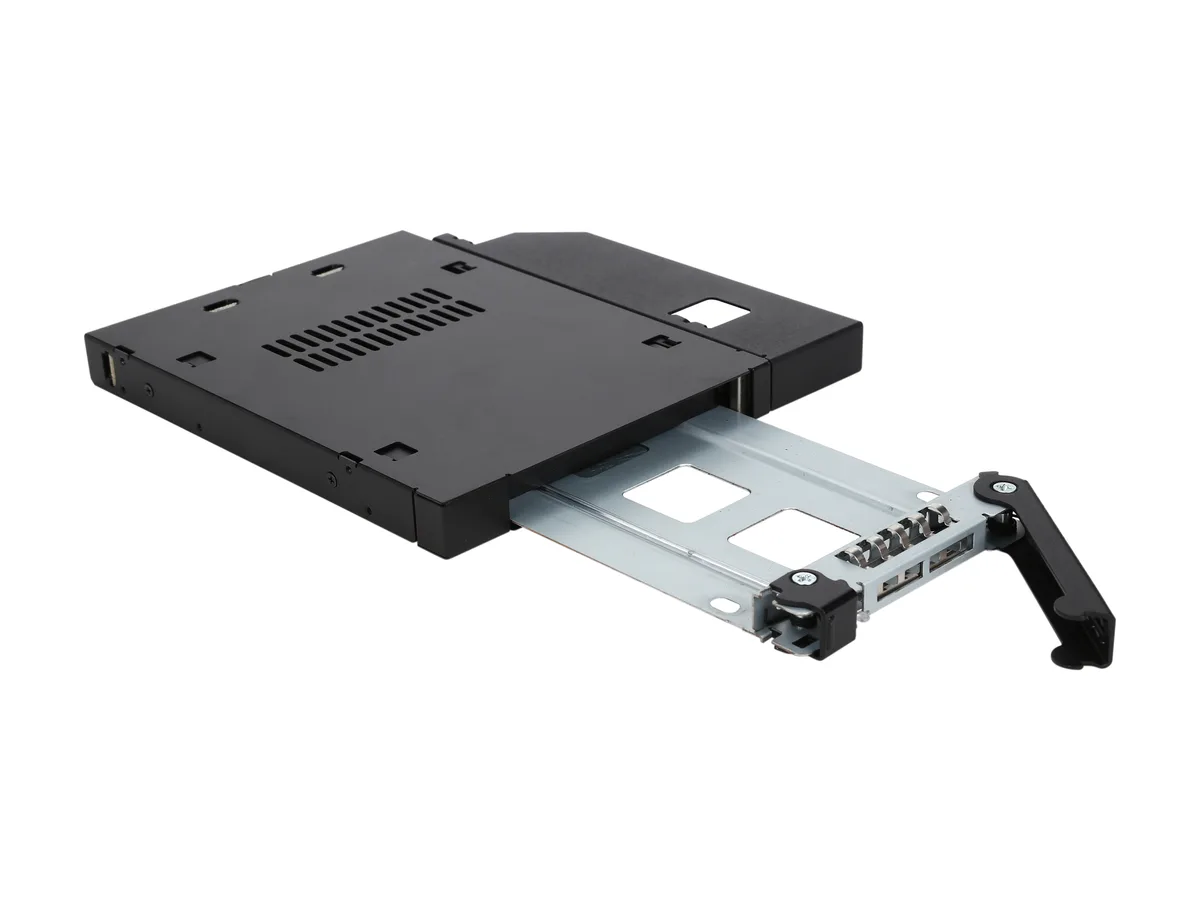

The ICY DOCK MB411SPO-B installs a single 2.5 inch SATA or SAS drive into a slim ODD or FDD bay. A removable EZ Slide Micro tray enables hot-swap drive changes without tools. Full metal construction protects the drive in harsh environments. The unit supports drive heights from 7mm to 9.5mm.

Suits space-constrained embedded systems

This rack fits industrial PCs, rackmount servers and OEM builds where only a slim optical bay is available. It is not for builders who need to install multiple drives in one bay. It is not for systems that lack a SATA host connection for the drive.

Single 22-pin SATA device interface

The tray connects to the drive through a single 22-pin SATA connector that carries both data and power. The host side uses a standard 7-pin SATA cable. SAS drives require a SAS-capable host controller to function.

Ciri-ciri utama

  • Fits slim ODD or FDD bays with ultra-small form factor
  • Full metal construction withstands harsh environments
  • Hot-swap EZ Slide Micro tray enables tool-free drive changes
  • Supports 2.5" SATA/SAS drives up to 6Gbps
  • Accommodates 7mm to 9.5mm drive heights

Spesifikasi

BrandICY DOCK
ModelMB411SPO-B
ColorBlack
Mobile Rack InterfaceSATA I/II/III
Protection CaseSingle Drive
Compatible ProductsSingle 2.5" SAS/SATA HDD/SSD (SAS host required for SAS drives)
SpecificationsDevice Interface :
Single 22pin SATA (Support SAS single channel)
Drive Fit :
Single 2.5" SAS/SATA HDD/SSD (SAS host required for SAS drives)
Compatible Drive Heights :
7mm to 9.5mm
Host Interface :
Single 7pin SATA
Device Fit :
Slim ODD or slim FDD bay
Transfer Rate :
Up to 6 Gb/sec. (depending on hard drive speed)
Power Input :
Mini 4-pin power wafer
Insert& Extract connection Via :
Direct SAS/SATA hard drive connection
Structure :
Full metal
Drive Cooling :
Metal heat dispersion
Power Indicator :
Solid green LED
HDD Access Indicator :
Flashing green LED
Drive Security :
Eagle-hook
Berat penghantaran0.26 kg
Dimensi bungkusan147 × 137 × 23 mm

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

What SATA speeds does the 22-pin interface support?

The 22-pin connector handles SATA I, II and III, so the practical ceiling is 6 Gbps.

Will this fit a standard 5.25-inch bay or only a slim optical bay?

It mounts only in a slim ODD or slim FDD bay; the frame is built for that narrower opening.

How do I install a 9.5 mm drive without jamming the tray?

Slide the drive into the EZ Slide Micro tray, secure it with the supplied screws, then insert the tray until it clicks; forcing it before the screws are tight is the common mistake.
