Small rectangular e-paper board in black ABS case, 2.13 inch display

LORDWORLD

LORDWORLD 2.13" Passive NFC-Powered e-Paper Development Board 250×122

SKU CH-WQ08-S00PK

A 2.13 inch NFC-powered e-paper development board with 250×122 resolution that refreshes wirelessly from a smartphone or NFC reader in two seconds without batteries

  • Zero-battery operation powered wirelessly via NFC
  • 250×122 resolution on a 2.13" e-paper screen
  • Refreshes in 2 seconds using a smartphone or NFC reader
  • Wide >170° viewing angle for clear readability
  • Lightweight ABS case protects the display without wiring

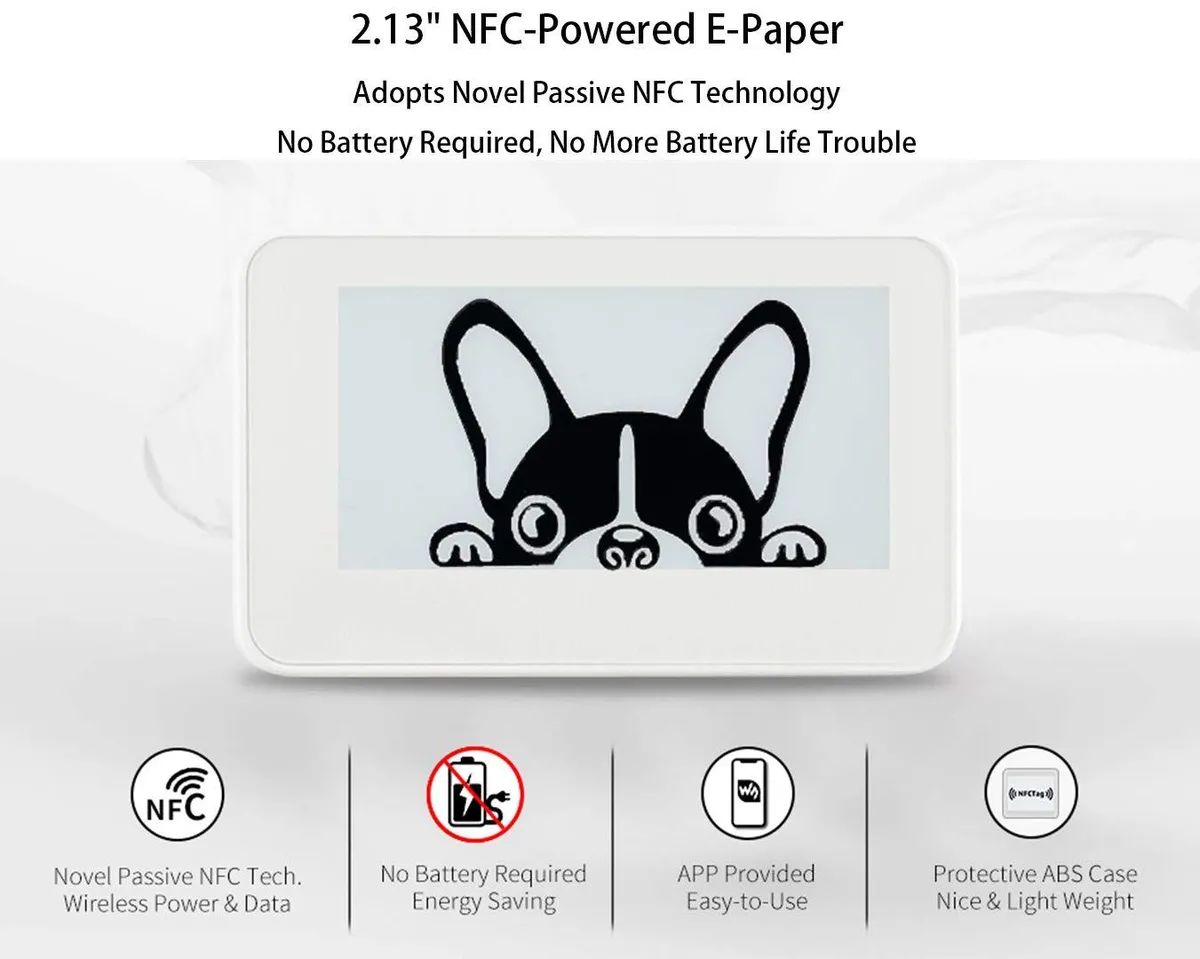

2.13 inch Passive NFC e-Paper Board

This development board integrates a 2.13 inch electrophoretic display that draws both power and data wirelessly through NFC. No battery or wiring is required, and an Android application is supplied for immediate content updates. The panel shows black and white pixels at 250×122 resolution within a compact ABS enclosure.

Makers prototyping battery-free displays

Engineers building NFC-driven signage, sensor read-outs or access badges will appreciate the zero-maintenance power model. Projects needing colour, greyscale beyond two levels, or continuous animation should consider alternative display technologies.

250×122 resolution refreshes in two seconds

The 250×122 pixel array updates in approximately two seconds once the NFC transaction completes, making it suitable for static or infrequently changing information. Faster refresh requirements would need a different panel.

Ciri-ciri utama

  • Zero-battery operation powered wirelessly via NFC
  • 250×122 resolution on a 2.13" e-paper screen
  • Refreshes in 2 seconds using a smartphone or NFC reader
  • Wide >170° viewing angle for clear readability
  • Lightweight ABS case protects the display without wiring

Spesifikasi

BrandLORDWORLD

Soalan tentang produk ini

Does the 2.13" e-Paper generate heat or noise when refreshed repeatedly through NFC?

The passive NFC-powered display has no battery or active electronics that produce heat or noise; it only draws wireless energy during the brief two-second refresh, then remains completely inert.

What phone or reader must I already own to update the 250×122 display?

You need an Android smartphone with built-in NFC or an ST25R3911B NFC board; the supplied Android app handles the wireless powering and data transfer when the device is held close.

Can I keep using my older ST25R3911B NFC board to drive this 2.13" panel?

Yes, the board is explicitly listed as a supported refresh source, so it will wirelessly power and update the 250×122 e-Paper exactly as a smartphone does.
