Small green circuit board with a 1.47 inch colour touch screen and pin headers

LORDWORLD

LORDWORLD ESP32-C6 1.47" Touch Development Board 172×320 262K Wi-Fi 6 Bluetooth 5 160MHz RISC-V

SKU CH-300G-8XS9K

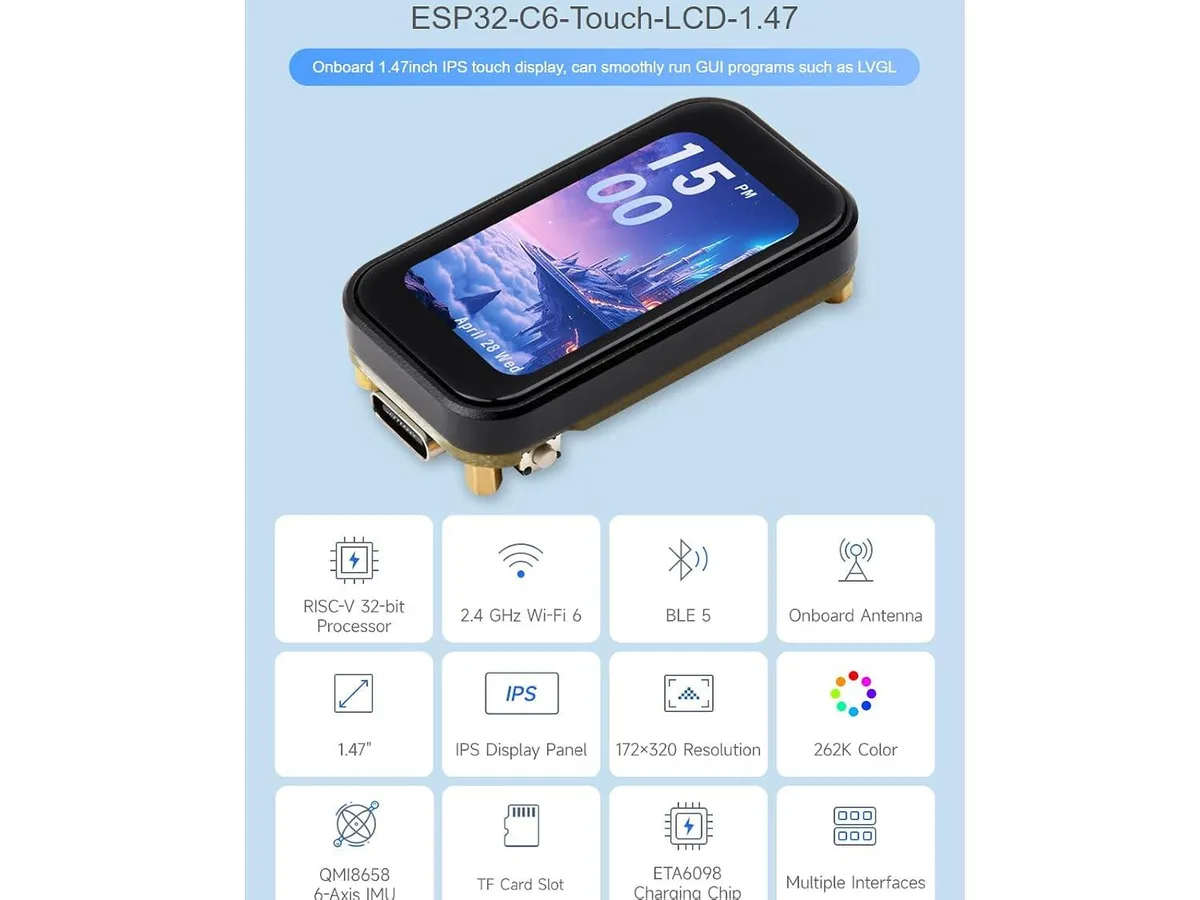

A 1.47 inch IPS capacitive touch display runs LVGL GUIs on a 160 MHz dual-core RISC-V processor with Wi-Fi 6 and Bluetooth 5 connectivity

  • Smooth GUI rendering with 1.47" IPS touch display
  • AIoT-ready performance from 160 MHz dual RISC-V cores
  • Wi-Fi 6 connectivity at 2.4 GHz with 40 MHz bandwidth
  • Bluetooth 5 LE and Mesh support for low-power links
  • Expandable I/O via GPIO header for peripheral add-ons

Maker development board

The LORDWORLD ESP32-C6 board integrates a 1.47 inch IPS capacitive touch display with a 172×320 resolution and 262K colour depth. It targets engineers and hobbyists building AIoT prototypes that need a compact, self-contained GUI platform. The board ships new and ready for immediate firmware development.

160 MHz RISC-V processor

A high-performance 32-bit RISC-V core runs at up to 160 MHz alongside a low-power 32-bit RISC-V co-processor. This dual-core arrangement delivers the compute headroom required for local AI inference and real-time graphics rendering on the onboard display.

Sustained GUI and wireless load

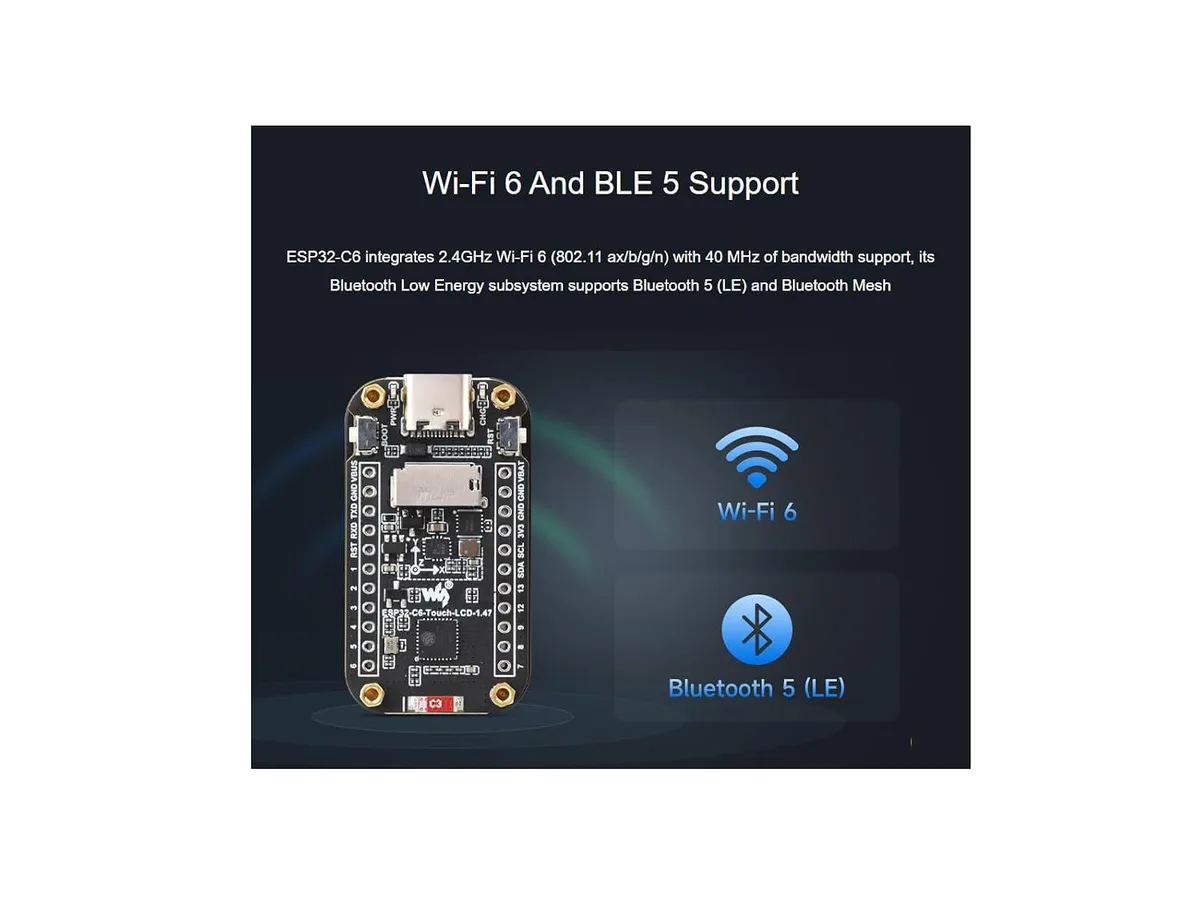

The AXS5106L touch driver and LVGL support enable continuous touch-driven interfaces without frame drops. Wi-Fi 6 at 2.4 GHz with 40 MHz bandwidth and Bluetooth 5 LE with Mesh maintain stable connectivity during long-running edge tasks while the low-power core manages background housekeeping.

Ciri-ciri utama

  • Smooth GUI rendering with 1.47" IPS touch display
  • AIoT-ready performance from 160 MHz dual RISC-V cores
  • Wi-Fi 6 connectivity at 2.4 GHz with 40 MHz bandwidth
  • Bluetooth 5 LE and Mesh support for low-power links
  • Expandable I/O via GPIO header for peripheral add-ons

Spesifikasi

BrandLORDWORLD

Soalan tentang produk ini

How does the 160 MHz RISC-V processor perform when driving the 1.47-inch touch display?

The 32-bit RISC-V core runs at up to 160 MHz and is designed to smoothly run GUI frameworks such as LVGL on the onboard 172×320 IPS touch panel.

What does Wi-Fi 6 with 40 MHz bandwidth mean for real-world throughput on this board?

The ESP32-C6 supports 2.4 GHz 802.11ax with 40 MHz channels, giving higher efficiency and lower latency than older Wi-Fi standards while staying in the 2.4 GHz band.

What expansion options does the GPIO header provide for adding sensors or actuators?

The header breaks out multiple GPIOs so you can attach additional peripherals directly to the ESP32-C6 for AIoT projects.
