LORDWORLD ESP32-P4-WIFI6 4.3inch LCD Development Board with 5MP OV5647 Camera

ESP32-P4 development board with LCD

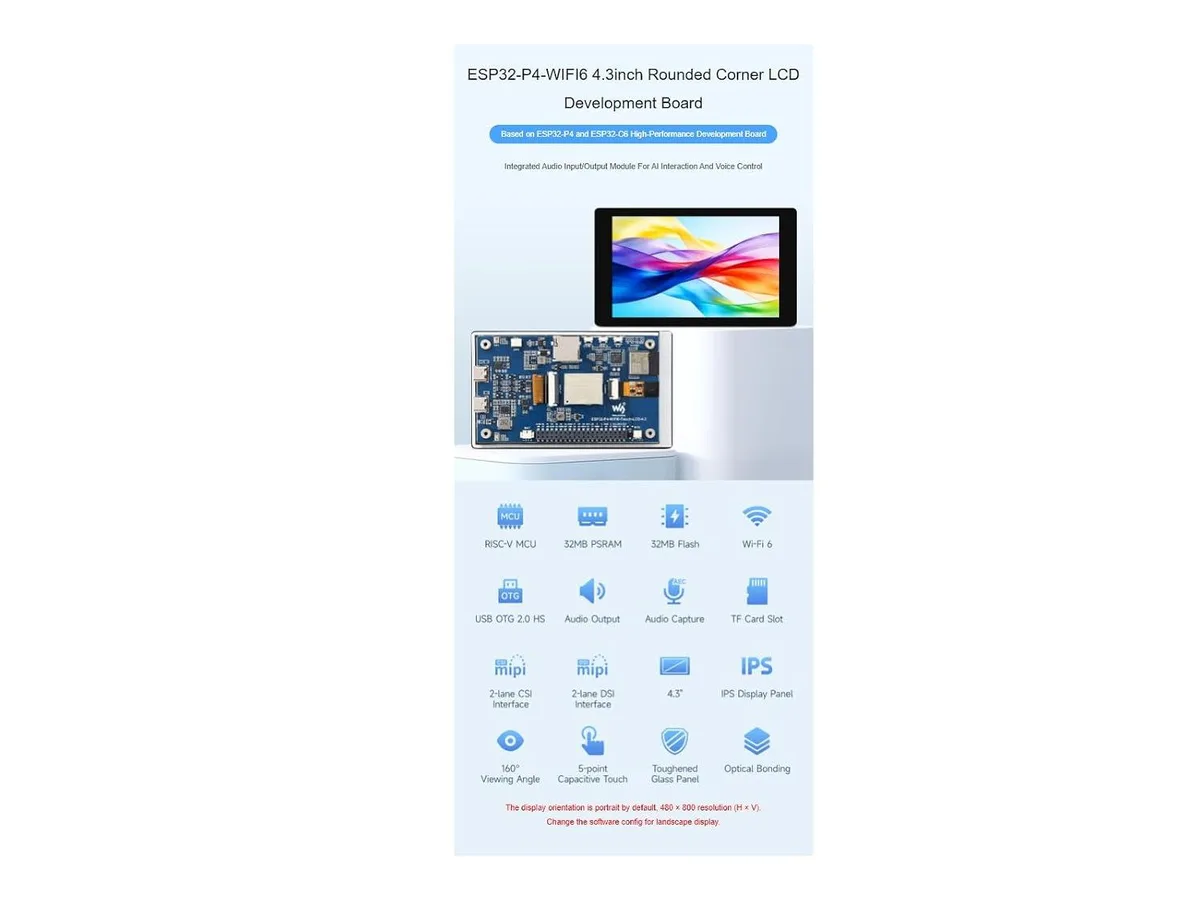

This LORDWORLD board combines an ESP32-P4 microcontroller with a 4.3 inch IPS display and a 5MP OV5647 camera. The capacitive touch panel supports 5-point input across a 480×800 resolution and 160° viewing angle. Onboard audio input and output enable voice control and AI speech interaction. An ESP32-C6-MINI module adds Wi-Fi 6 and Bluetooth 5 (LE) connectivity via SDIO.

Check power and software needs before ordering

The board requires a suitable power source for the ESP32-P4, display, camera and audio modules; verify your supply can deliver the necessary current. Development uses the ESP-IDF framework, so confirm your toolchain and drivers are configured for dual-core ESP32-P4 and ESP32-C6 targets. Camera and AI speech features need corresponding libraries and, for cloud models such as DeepSeek or Doubao, an active internet connection over the 2.4 GHz Wi-Fi 6 link.

Rounded display and integrated connectors

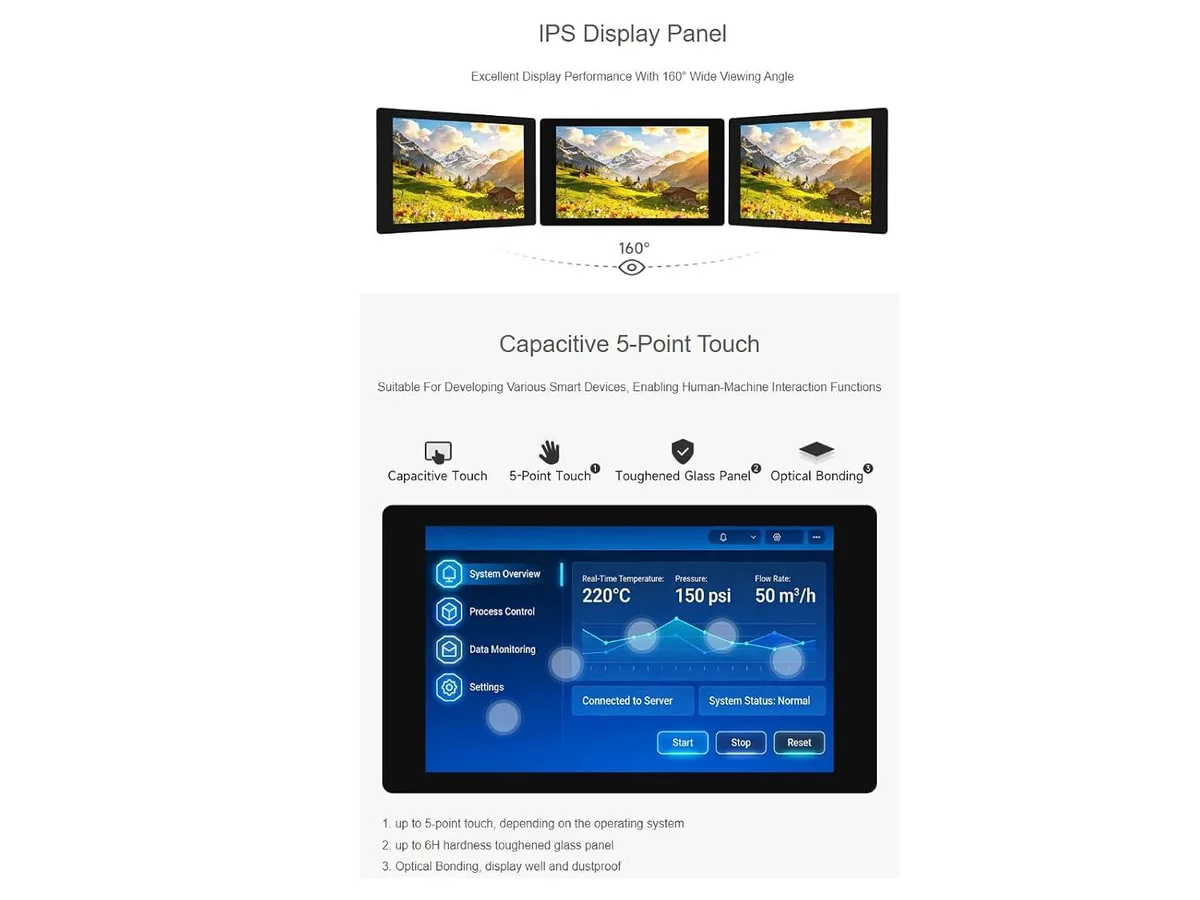

The 4.3 inch IPS panel has rounded corners and a wide 160° viewing angle, making it readable from multiple positions during bench testing. Capacitive 5-point touch allows gestures without pressure marks. Onboard audio jacks or headers let you attach a microphone and speaker directly for voice-driven demos. The ESP32-C6-MINI is soldered on the PCB, so the Wi-Fi 6 and Bluetooth 5 (LE) radios are fixed in place and do not require separate antenna routing.
