Rectangular development board with 5 inch IPS display, capacitive touch panel, exposed pin headers and ESP32-S3 module visible

LORDWORLD

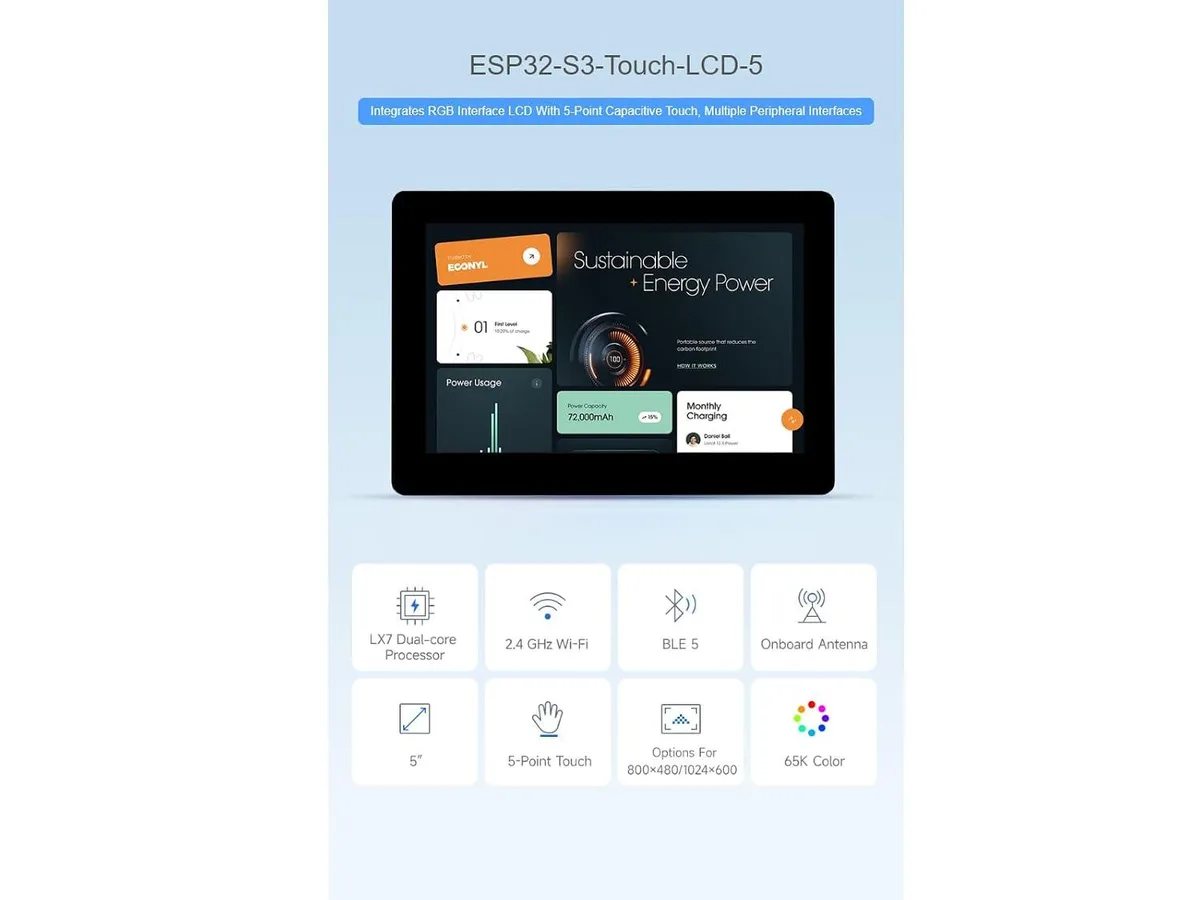

LORDWORLD ESP32-S3 5 inch 800×480 Capacitive Touch Development Board

SKU CH-JR59-JCSTJ

5 inch 800×480 IPS development board with 5-point capacitive touch, CAN, RS485, I2C and isolated IO, plus 2.4 GHz Wi-Fi and BLE 5

  • 5-inch 800×480 IPS display gives wide 160° viewing
  • 5-point capacitive touch enables smooth multi-point UI interaction
  • ESP32-S3 dual-core processor delivers responsive edge computing
  • CAN, RS485 and I2C interfaces simplify peripheral expansion
  • Hardware and software customisation options suit batch deployments

Target development board

The LORDWORLD ESP32-S3 board combines a 5 inch IPS display with an 800×480 resolution and a 32-bit LX7 dual-core processor. It is designed for makers building IoT edge devices that need a ready-to-use touchscreen interface. Buyers who want more storage or a larger screen should look elsewhere.

Deciding specification

The 5-point capacitive touch panel operates over I2C and supports multi-point gestures for flexible UI interaction. This touch capability is the single feature that determines whether the board fits a project needing direct screen input. Without it, the display would be view-only.

Sustained behaviour

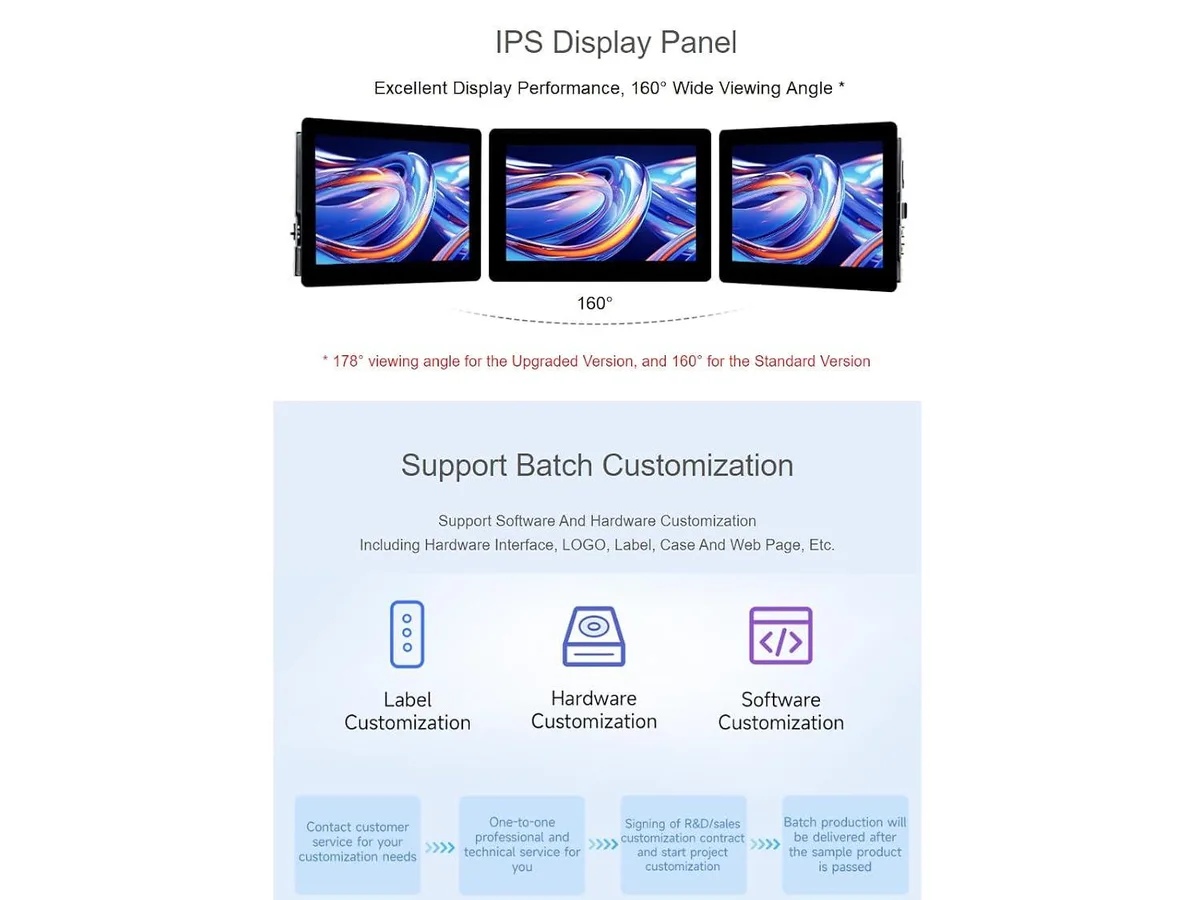

The IPS panel provides a 160° wide viewing angle so the image remains clear during long periods of use. Wireless connectivity uses 2.4 GHz WiFi and BLE for continuous data exchange in edge applications. The processor handles ongoing peripheral communication through CAN, RS485, I2C and isolated IO interfaces.

Ciri-ciri utama

  • 5-inch 800×480 IPS display gives wide 160° viewing
  • 5-point capacitive touch enables smooth multi-point UI interaction
  • ESP32-S3 dual-core processor delivers responsive edge computing
  • CAN, RS485 and I2C interfaces simplify peripheral expansion
  • Hardware and software customisation options suit batch deployments

Spesifikasi

BrandLORDWORLD

Soalan tentang produk ini

How does the 800×480 resolution look on the 5-inch IPS panel in practice?

The 5-inch IPS panel delivers an 800×480 pixel grid with a 160° wide viewing angle so text and graphics remain clear from most positions.

What does the RGB interface mean for driving the display?

The RGB interface connects the ESP32-S3 directly to the LCD controller, letting the dual-core 32-bit LX7 processor push pixels without an extra bridge chip.

What mounting holes or cut-out dimensions does the board need?

The board integrates the display and touch controller on a single PCB; mounting points follow the 5-inch module outline, so a cut-out matching that footprint secures it.
