Green printed circuit board with five inch IPS touchscreen display and exposed pin headers

LORDWORLD

LORDWORLD ESP32-S3 5inch LCD B development board 1024×600 IPS

SKU CH-6NSQ-4AZ4H

5-inch 1024×600 IPS display board with ESP32-S3 dual-core processor at 240 MHz, 2.4 GHz Wi-Fi, BLE, and CAN, RS-485, I2C plus isolated I/O expansion

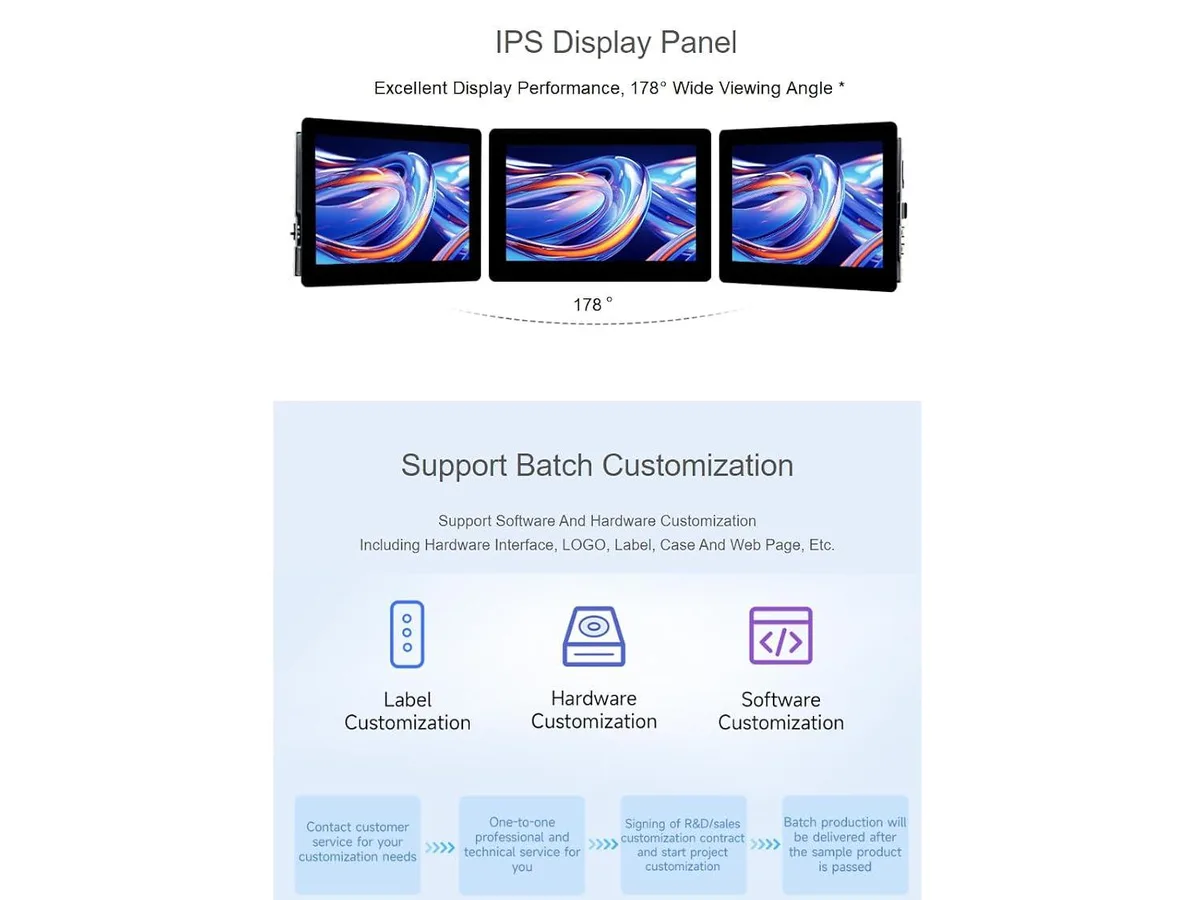

  • Sharp 1024×600 IPS visuals for clear UI
  • 240 MHz dual-core handles real-time tasks
  • 4 GHz Wi-Fi plus BLE 5 connects devices
  • CAN RS485 I2C isolated IO expands hardware
  • Custom logo label case firmware fits brand

IoT Development Board with 5-inch IPS Display

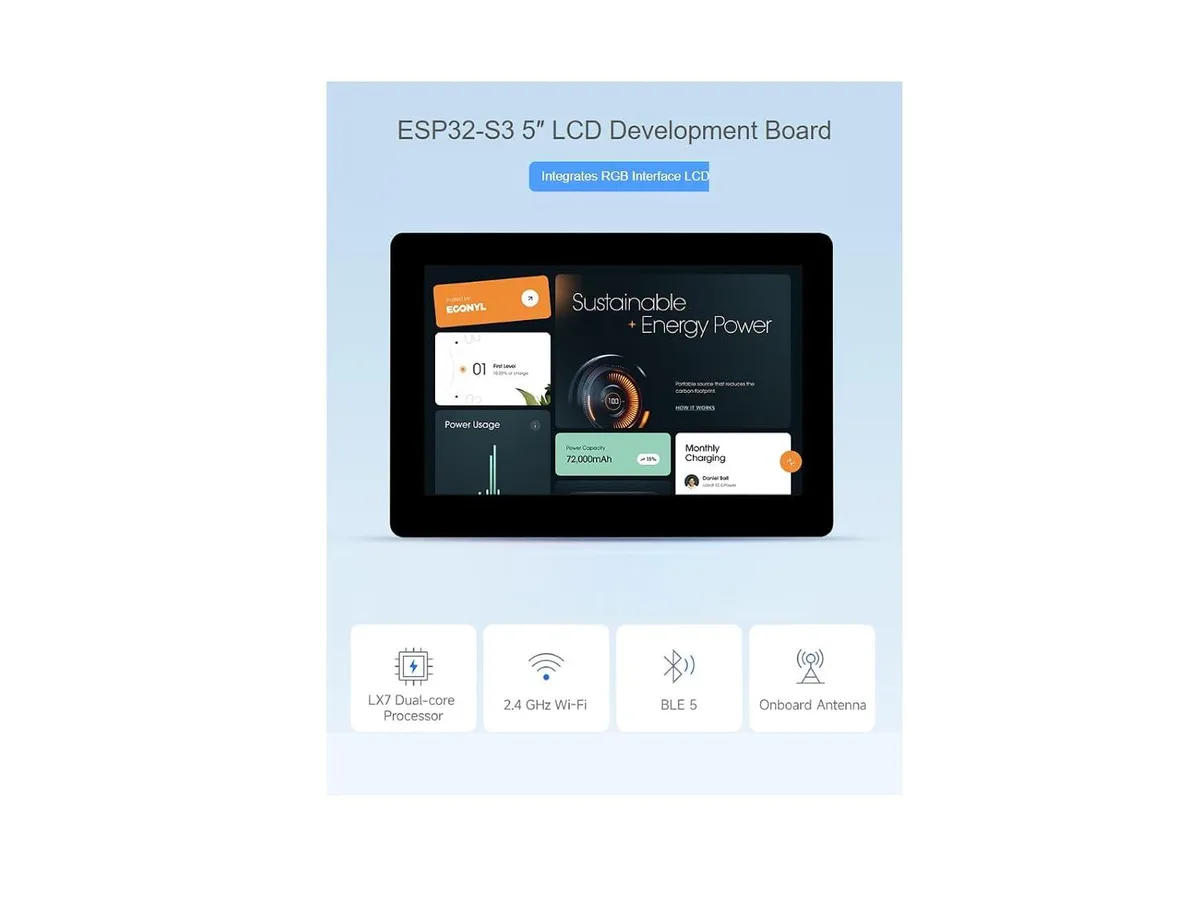

This board combines an ESP32-S3 dual-core processor with a 1024×600 IPS LCD panel over an RGB interface. It targets makers and engineers building edge devices that need local visual output alongside wireless connectivity. The integrated display and peripheral headers suit prototyping dashboards, sensor gateways and custom HMI panels.

240 MHz Dual-Core Headroom with Wireless

The 32-bit LX7 dual-core processor runs at up to 240 MHz and includes 2.4 GHz WiFi plus BLE 5 support with an onboard antenna. This provides enough compute for real-time display rendering, protocol handling and light edge analytics. Heavy cryptographic workloads or sustained high-throughput streaming will exceed the available cycles and memory bandwidth.

Rugged Interfaces for Industrial Expansion

CAN, RS485, I2C and isolated IO headers are brought out for direct wiring to buses and sensors without extra level shifters. The RGB LCD interface drives the panel natively, avoiding SPI bottlenecks. Buyers who need HDMI output, MIPI CSI camera input or high-speed USB host ports will find those interfaces absent.

Ciri-ciri utama

  • Sharp 1024×600 IPS visuals for clear UI
  • 240 MHz dual-core handles real-time tasks
  • 4 GHz Wi-Fi plus BLE 5 connects devices
  • CAN RS485 I2C isolated IO expands hardware
  • Custom logo label case firmware fits brand

Spesifikasi

BrandLORDWORLD

Soalan tentang produk ini

Will the 5 inch 1024×600 IPS display work alongside my older CAN and RS485 sensors?

The board exposes CAN and RS485 interfaces so you can connect legacy sensors directly to the ESP32-S3 module.

How can I confirm the 32-bit LX7 dual-core processor is running at 240 MHz after flashing firmware?

Read the CPU frequency register via serial monitor or blink an LED timed to the 240 MHz clock to verify operation.

Does the package include cables for the isolated IO, I2C and CAN headers or must I source them separately?

Only the development board itself is supplied; cables and connectors for isolated IO, I2C and CAN must be purchased separately.
