Small green circuit board with a 1.69 inch colour touchscreen display attached

LORDWORLD

LORDWORLD ESP32-S3 Development Board 1.69inch Touch LCD 240×280 262K Color Accelerometer Gyroscope

SKU CH-T458-RB413

ESP32-S3 board with a 1.69 inch capacitive touch LCD at 240×280 pixels and 262K colors, plus a 6-axis accelerometer and gyroscope sensor for motion-aware IoT prototypes

  • 69 inch capacitive touch LCD with 240×280 resolution
  • 262K colour display driven by ST7789V2 driver
  • CST816T capacitive touch controller enables interaction
  • 6-axis sensor with accelerometer and gyroscope
  • Lithium battery recharge manager and RTC included

ESP32-S3 board with 1.69inch touch LCD

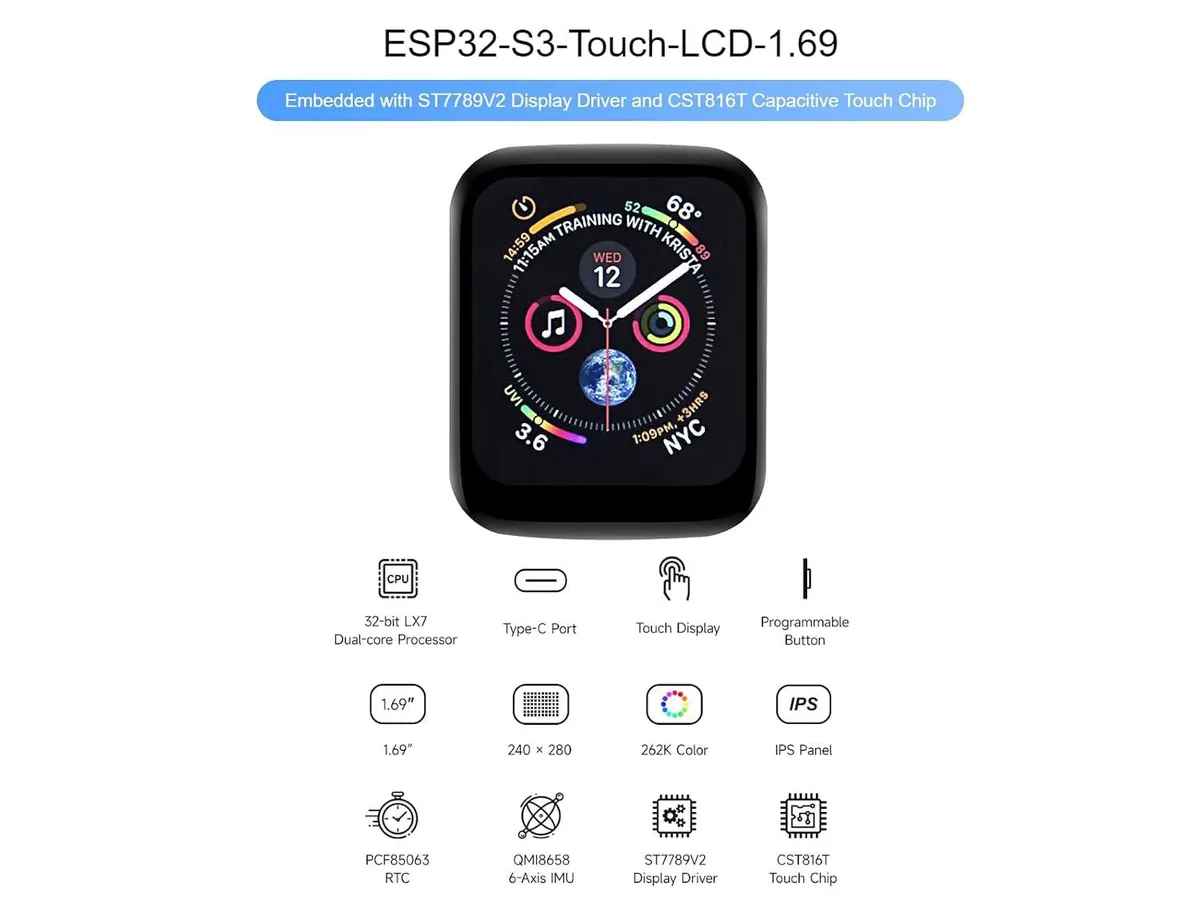

The LORDWORLD development board combines an ESP32-S3 microcontroller with an onboard 1.69inch capacitive touch LCD that shows 240×280 pixels in 262K colors. A CST816T touch chip and ST7789V2 display driver handle input and graphics. It targets makers building smart devices that need human-computer interaction in a tiny form factor.

Sustained operation with battery manager and sensors

A lithium battery recharge manager supports long sessions without a permanent USB tether. The 6-axis sensor packs a 3-axis accelerometer and 3-axis gyroscope for motion tracking. An onboard RTC keeps time during deep sleep. These blocks let the board run continuous sensing and display tasks rather than only short demos.

Compact build with integrated peripherals

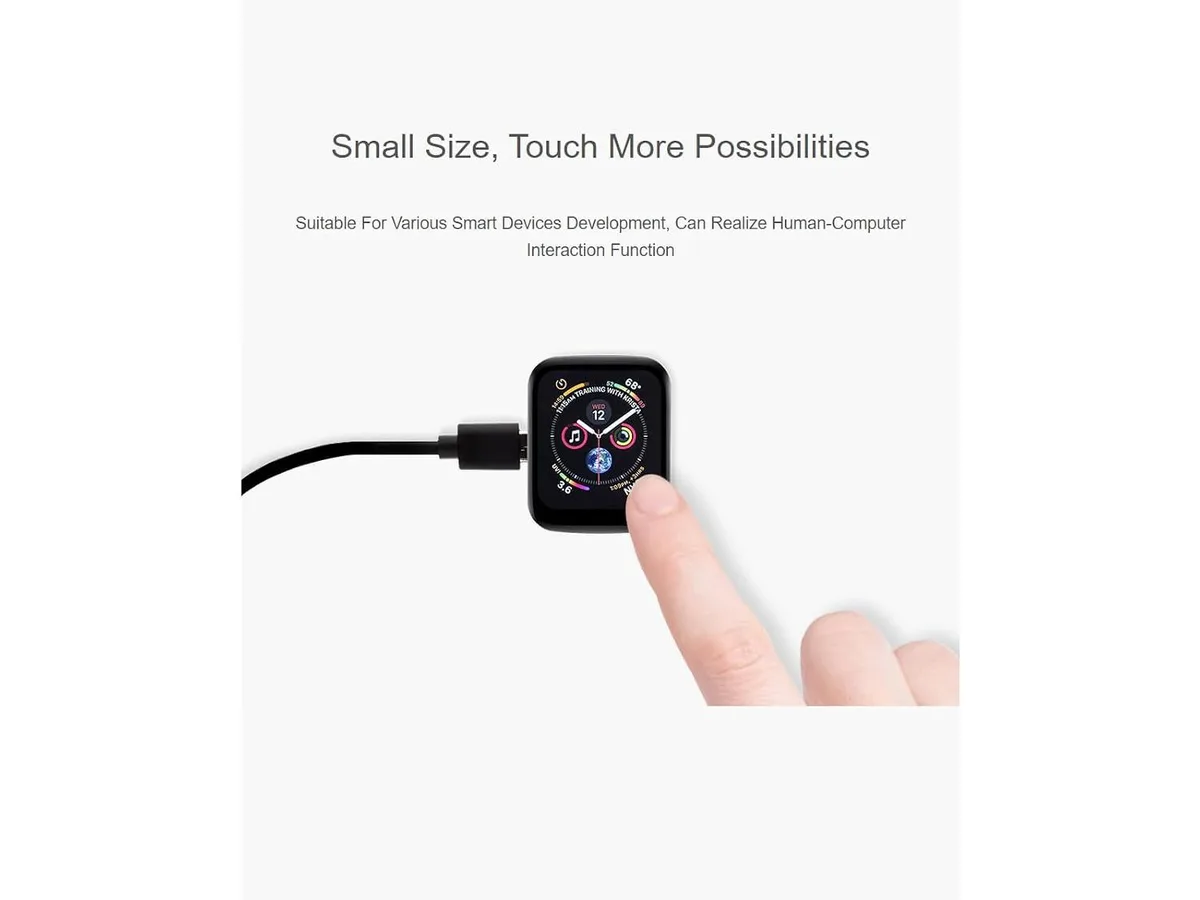

The tiny PCB fits the LCD, touch controller, motion sensors and power management in one piece, so no separate modules or wiring are required. Standard ESP32-S3 GPIO remains accessible for extra sensors or actuators. This integration reduces assembly time and mechanical failure points for wearable or handheld prototypes.

Ciri-ciri utama

  • 69 inch capacitive touch LCD with 240×280 resolution
  • 262K colour display driven by ST7789V2 driver
  • CST816T capacitive touch controller enables interaction
  • 6-axis sensor with accelerometer and gyroscope
  • Lithium battery recharge manager and RTC included

Spesifikasi

BrandLORDWORLD

Soalan tentang produk ini

How hot does the ESP32-S3 board get when the 1.69inch touch LCD runs continuously all day?

The board draws modest power; the 240×280 display and ESP32-S3 stay cool enough for enclosed projects without active cooling.

What power source must I already have to run the ESP32-S3 development board?

A USB-C cable or a single-cell lithium battery connects to the onboard recharge manager for immediate operation.

Will the onboard 6-axis sensor work with older Arduino libraries I already use?

Yes, the accelerometer and gyroscope expose standard I2C registers compatible with common Arduino motion libraries.
