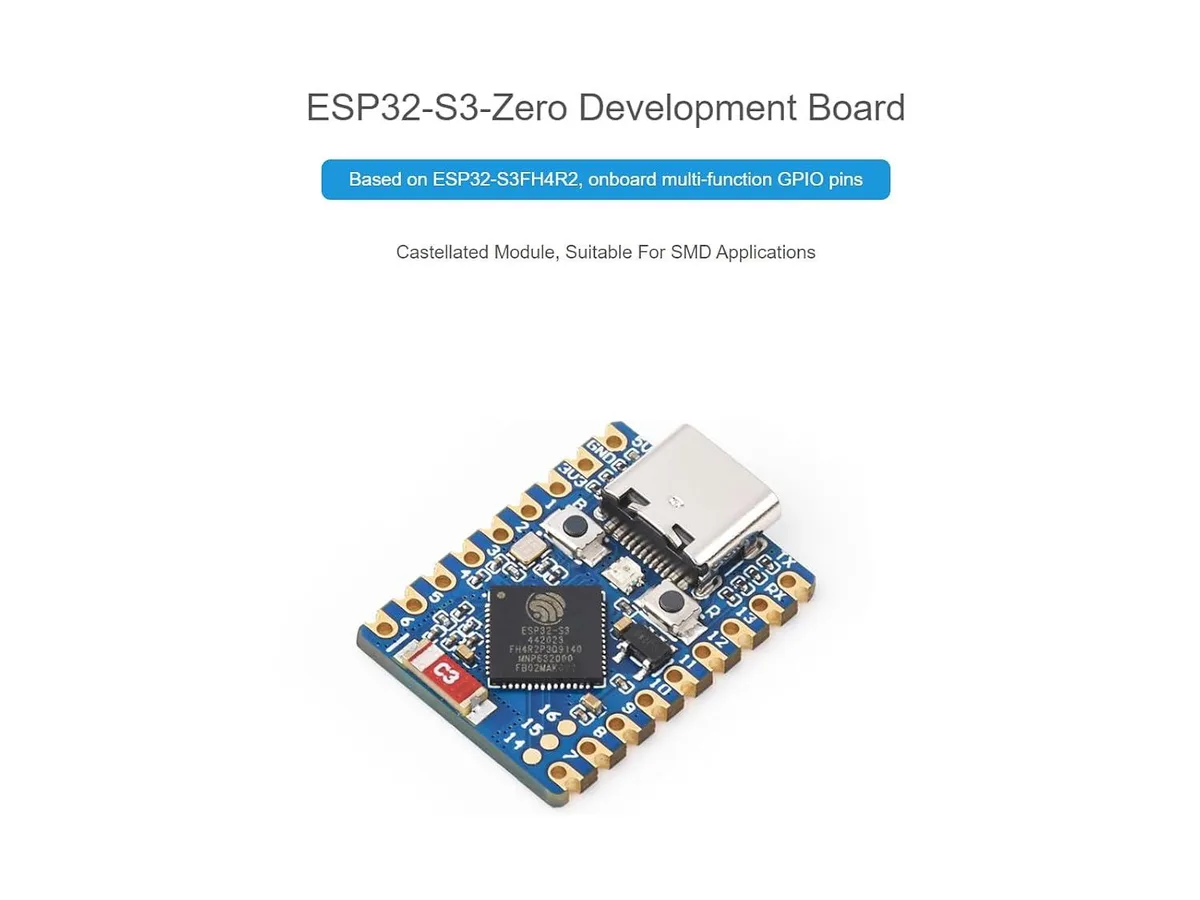

Small green circuit board with USB-C port and pre-soldered header pins

LORDWORLD

LORDWORLD ESP32-S3 Mini Development Board Pre-Soldered Header

SKU CH-C44H-TPVBG

Compact IoT board with 240 MHz dual-core processor, 2.4 GHz Wi-Fi, Bluetooth 5, 34 GPIO pins and pre-soldered headers

  • Dual-core 32-bit processor reaches 240MHz for responsive edge computing
  • 4GHz Wi-Fi and Bluetooth 5 enable wireless IoT connectivity
  • 512KB SRAM plus 384KB ROM with 4MB Flash and 2MB PSRAM support larger firmware
  • 34 GPIO pins with multiple interfaces allow flexible peripheral connections
  • Pre-soldered header and USB Type-C port simplify immediate development

Compact IoT development board

The LORDWORLD ESP32-S3 Mini is a dual-core microcontroller board aimed at hobbyists and engineers building wireless IoT prototypes. It ships with headers pre-soldered for immediate breadboard use. The Xtensa LX7 processor runs at up to 240MHz and integrates 2.4GHz Wi-Fi and Bluetooth 5 connectivity.

Check power and peripheral needs

Verify that your project can supply 5V via the USB Type-C port for programming and operation. The board exposes 34 GPIO pins with 4 SPI, 2 I2C, 3 UART, 2 I2S and 2 ADC channels; confirm the required interfaces match your sensors or actuators. Onboard memory includes 512KB SRAM, 384KB ROM, 4MB Flash and 2MB PSRAM.

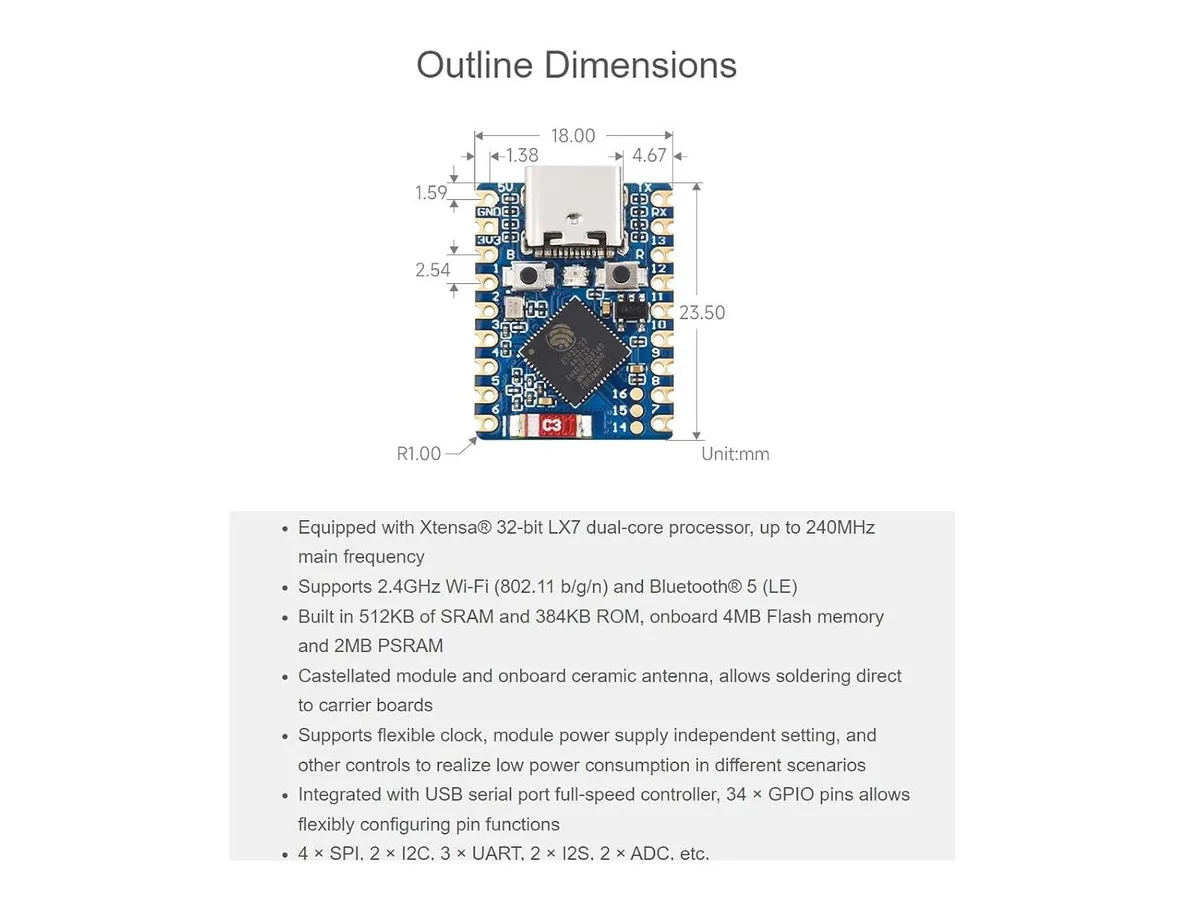

Castellated edges and ceramic antenna

Castellated module edges allow the board to be soldered directly onto a custom carrier PCB for permanent deployment. The onboard ceramic antenna handles wireless signals without an external connector, saving space in tight enclosures. A USB serial controller provides a direct programming link from a host computer.

Ciri-ciri utama

  • Dual-core 32-bit processor reaches 240MHz for responsive edge computing
  • 4GHz Wi-Fi and Bluetooth 5 enable wireless IoT connectivity
  • 512KB SRAM plus 384KB ROM with 4MB Flash and 2MB PSRAM support larger firmware
  • 34 GPIO pins with multiple interfaces allow flexible peripheral connections
  • Pre-soldered header and USB Type-C port simplify immediate development

Spesifikasi

BrandLORDWORLD

Soalan tentang produk ini

Does the board arrive with the header pins already soldered or must I buy and solder them myself?

The header pins are pre-soldered so the board is ready to use without extra soldering.

Which wireless version does the ESP32-S3FH4R2 module support?

The module provides 2.4 GHz Wi-Fi 802.11 b/g/n and Bluetooth 5 LE connectivity.

What does the 240 MHz dual-core speed mean for real-time sensor tasks?

The Xtensa LX7 dual-core running at 240 MHz handles sensor reads, Wi-Fi and Bluetooth 5 stacks simultaneously with low latency.
