Grey horizontal bench power supply with encoder knob, four-digit display and USB Type-C port

NANKADF TPS3010 30V 10A Bench Power Supply 300W

SKU CH-Q2XZ-CZKFG

Adjustable bench supply delivers 0-30V at 10A with encoder knob precision, USB-C quick charge, output enable button and short-circuit alarm

  • Watts300 watts
  • Surge Wats300 watts
  • Engine BrandNANKADF
  • Voltage125VAC
  • Amps10A
  • Size/Dimensions13.0048 cm x 19.304 cm x 29.9974 cm
  • Precise encoder knob enables digit-by-digit voltage and current setting
  • Output enable button prevents accidental load damage
  • Over-current protection with buzzer stops output on short circuit
  • 5 V 3.6 A USB and Type-C quick-charge ports power devices directly
  • Horizontal 13 cm x 19.3 cm x 30 cm form factor saves bench space

NANKADF TPS3010 Bench Power Supply

The NANKADF TPS3010 is a horizontal-style bench power supply built for engineers and electronics enthusiasts who need a compact, adjustable DC source on a crowded workbench. It delivers up to 30 V and 10 A for a maximum of 300 W, and includes a 5 V 3.6 A USB Type-C quick-charge port for powering low-voltage modules or charging devices.

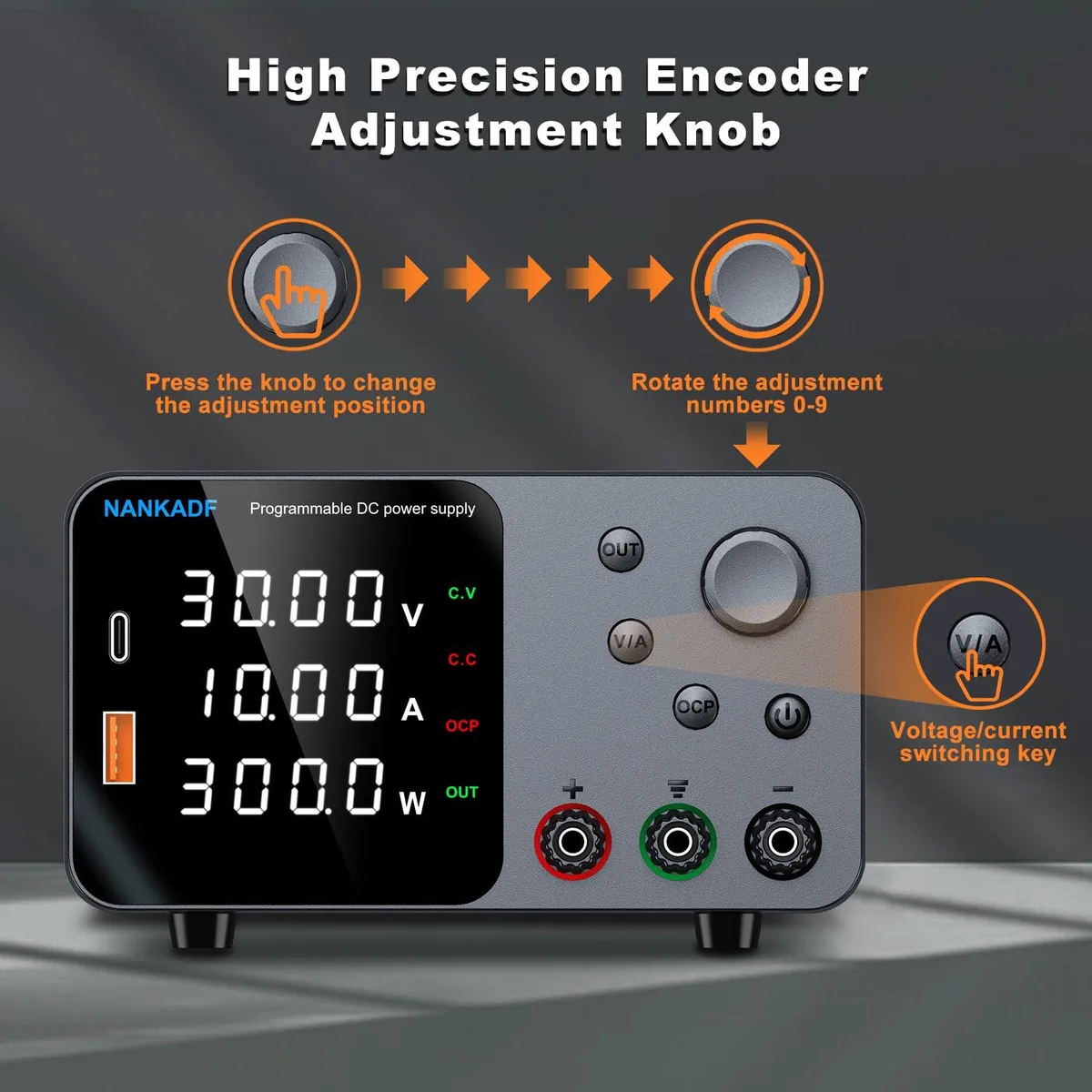

Encoder Knob with Per-Digit Adjustment

A high-precision encoder knob lets you press to select individual digits and turn to set each one from 0 to 9, giving finer resolution than a traditional rotary potentiometer. The V/A button switches between voltage and current programming, so you can dial in exact limits before enabling the output.

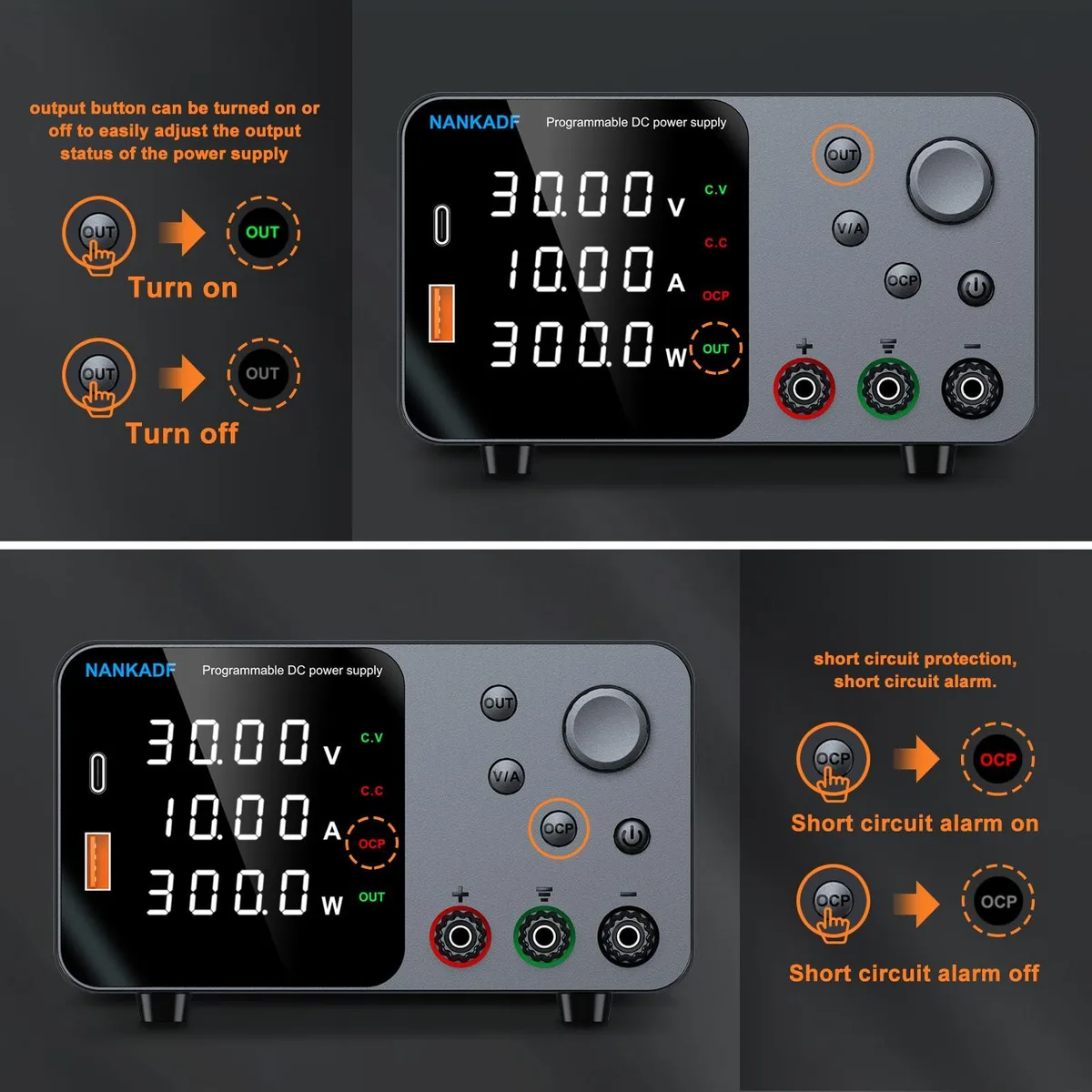

Output Enable Button and Overcurrent Alarm

An output enable/disable button lets you cut power to the load instantly without changing the programmed settings, preventing accidental damage during test setup. When overcurrent protection is active, a short circuit triggers an automatic output shutdown and an audible buzzer alarm that can be muted from the front panel. The unit operates from a 125 VAC input and weighs approximately 2.5 lb.

Ciri-ciri utama

  • Precise encoder knob enables digit-by-digit voltage and current setting
  • Output enable button prevents accidental load damage
  • Over-current protection with buzzer stops output on short circuit
  • 5 V 3.6 A USB and Type-C quick-charge ports power devices directly
  • Horizontal 13 cm x 19.3 cm x 30 cm form factor saves bench space

Spesifikasi

Watts300 watts
Surge Wats300 watts
Engine BrandNANKADF
Voltage125VAC
Amps10A
Size/Dimensions13.0048 cm x 19.304 cm x 29.9974 cm
Horsepower3
Input Amps300 watts
SeriesTPS3010
Primary Openings1
Parts1 Year
Labor1 Year
