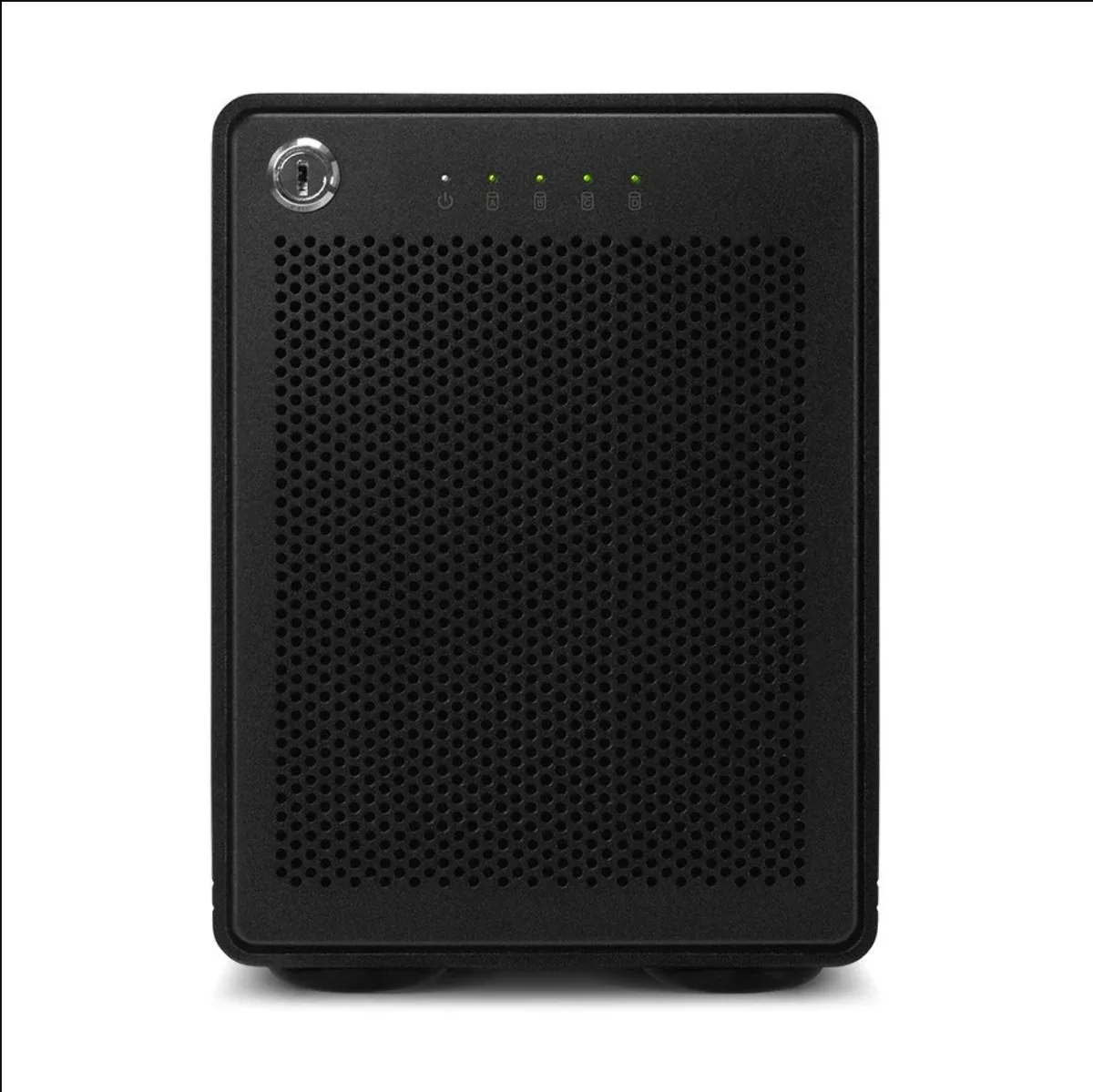

Black rectangular desktop enclosure with four drive bays, front lock and Thunderbolt cable

OWC

OWC ThunderBay 4 8TB 3.5" 4-Drive RAID Thunderbolt Black

SKU CH-0WNY-D6KP0

Four-bay desktop RAID enclosure holding 8 TB across 7200 RPM drives with Thunderbolt connectivity for macOS and Windows

  • ColorBlack
  • Thunderbolt 3Yes
  • InterfaceThunderbolt
  • Capacity8TB
  • Cache512MB
  • RPM7200 RPM
  • 8TB capacity stores large media libraries
  • 7200 RPM drives deliver fast sequential throughput
  • RAID 0, 1, 4, 5, 10 and JBOD protect or maximise space
  • Thunderbolt 3 enables high-speed single-cable connection
  • macOS 10.12 to 13 and Windows 10/11 supported

ThunderBay 4 8TB four-drive RAID

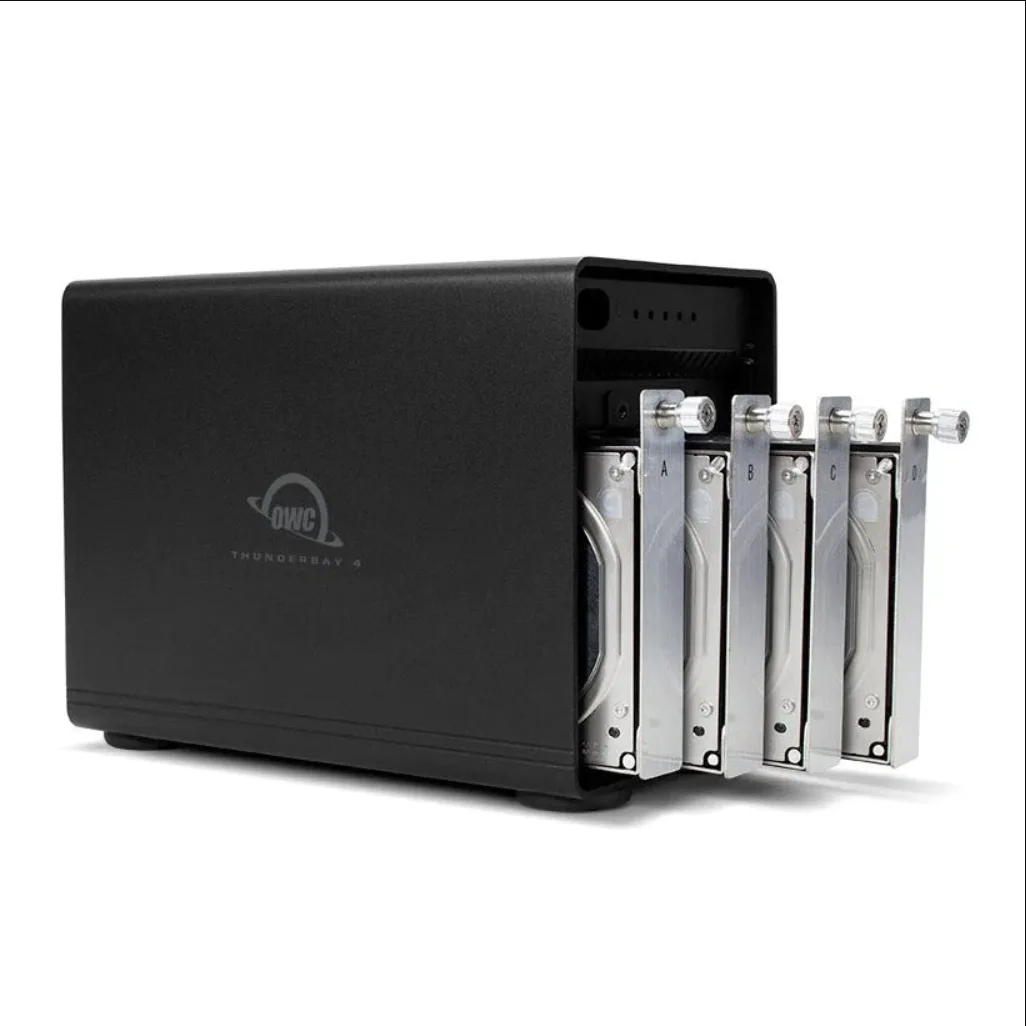

The OWC ThunderBay 4 is a desktop external enclosure that holds four 3.5-inch drives in a single black chassis. It connects through Thunderbolt and ships with a 0.7-metre cable. The unit arrives pre-configured with 8TB of total storage running at 7200 RPM and a 512MB cache. Hardware RAID supports modes 0, 1, 4, 5, 10 and JBOD.

Suits Mac and Windows RAID workflows

Editors and studios needing hardware RAID on macOS 10.12 through 13 or Windows 10 and 11 will find the ThunderBay 4 ready to deploy. The front-panel lock and included security keys add physical protection for shared environments. Buyers who need a single-drive backup device or portable bus-powered storage should consider other form factors. The four-bay design also exceeds the needs of users with modest capacity requirements.

Hardware RAID 0 1 4 5 10 JBOD

The built-in RAID controller is the specification that determines whether this enclosure matches a workflow. It presents the four installed drives as a single logical volume or mirrored pair without host software overhead. Supported levels include striping, mirroring and parity options up to RAID 10. If a project requires software-defined RAID or a different controller feature set, this hardware implementation will not align.

Ciri-ciri utama

  • 8TB capacity stores large media libraries
  • 7200 RPM drives deliver fast sequential throughput
  • RAID 0, 1, 4, 5, 10 and JBOD protect or maximise space
  • Thunderbolt 3 enables high-speed single-cable connection
  • macOS 10.12 to 13 and Windows 10/11 supported

Spesifikasi

BrandOWC
ModelOWCTB3SRT08.0S
ColorBlack
Thunderbolt 3Yes
InterfaceThunderbolt
Capacity8TB
Cache512MB
RPM7200 RPM
RAIDRAID System (0, 1, 4, 5, 10, JBOD)
System RequirementsMac OS Compatibility:
macOS 10.12 Sierra
macOS 10.13 High Sierra
macOS 10.14 Mojave
macOS 10.15 Catalina
macOS 11.x Big Sur
macOS 12.x Monterey
macOS 13.x Ventura
PC OS Compatibility:
Windows 10 64-bit Edition
Windows 11
Form Factor3.5"
Dimensions7.00" x 5.30" x 9.60"
Package Contents(1) OWC ThunderBay 4 External Storage Solution
(1) 0.7M (28") OWC Thunderbolt Cable
(1) US Power Cable
(2) Security Keys for Front Panel Lock
(1) Quick Start Guide for OWC ThunderBay 4 with Thunderbolt 3
(1) Assembly Manual & User Guide for OWC ThunderBay 4 with Thunderbolt 3
(1) OWC SoftRAID XT Software Bundle
(1) Quick Start Guide for OWC SoftRAID XT
(1) Manual & User Guide for OWC SoftRAID XT
(1) Acronis Cyber Protect Home Office (1 Year Subscription)

Soalan tentang produk ini

Should I pick RAID 5 or JBOD for the 8.0 TB array?

RAID 5 gives you roughly 6 TB of protected space and survives one drive failure; JBOD presents all 8.0 TB as separate volumes with no redundancy.

What sustained throughput will I see from the 7200 RPM drives over Thunderbolt?

The four 7200 RPM drives can deliver multi-drive sequential speeds that saturate a typical Thunderbolt link, so real-world reads and writes run at the link's practical ceiling.

Does the Thunderbolt interface limit the 512 MB cache or 7200 RPM spindle speed?

No — the Thunderbolt connection has more bandwidth than the mechanical drives can fill, so neither the 512 MB cache nor the 7200 RPM speed is capped by the interface.
