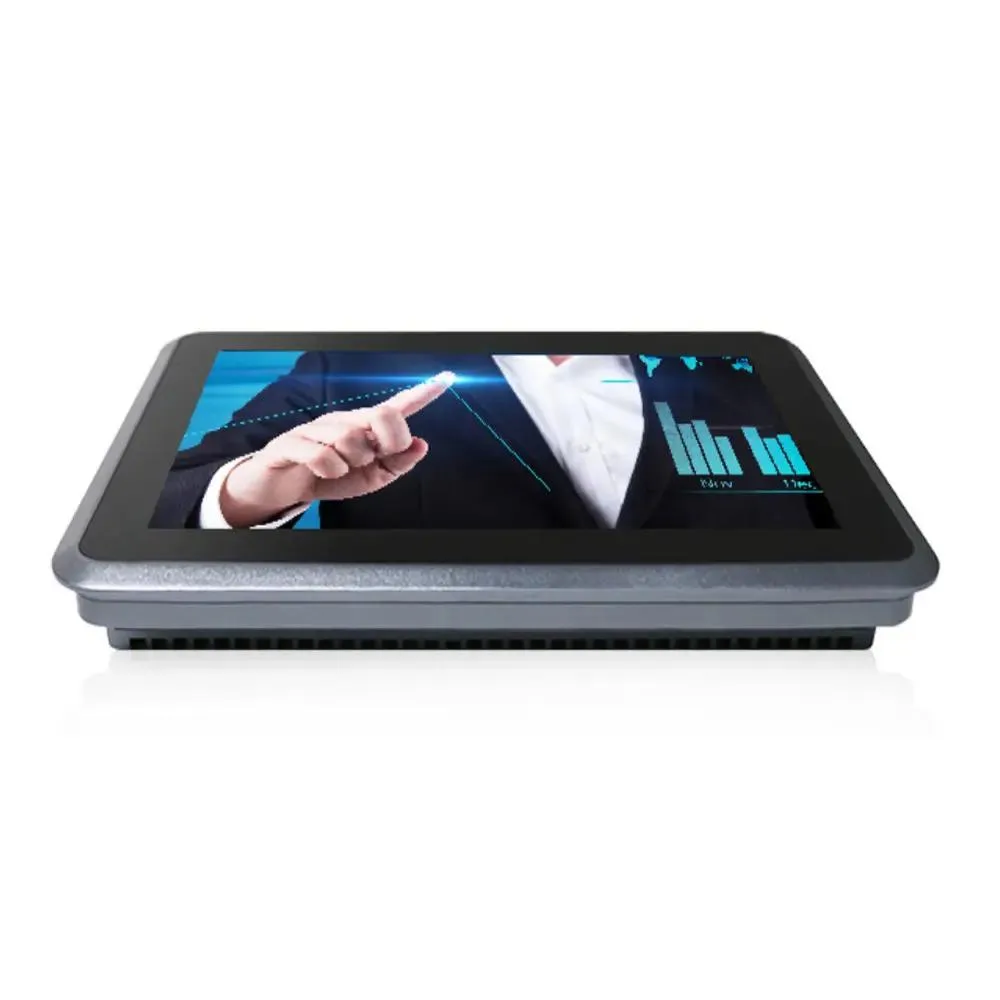

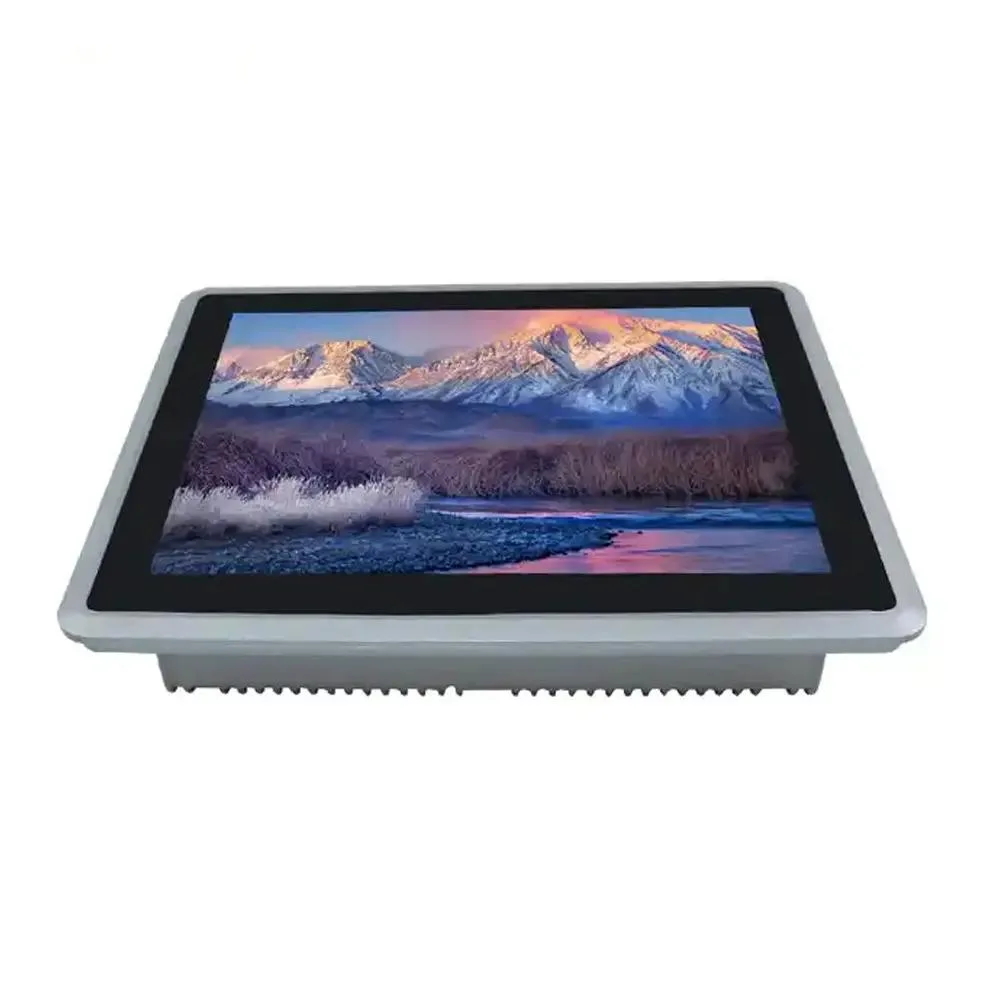

12.1 inch IP65 flat-front all-in-one panel PC with aluminium fanless chassis

partaker

partaker A19 12.1" IP65 i5-10310U 32GB DDR4 512GB all-in-one PC

SKU CH-FE4V-4D3Q7

A 12.1″ IP65-rated industrial all-in-one with a fanless aluminium chassis, Core i5-10310U, 32 GB DDR4, 512 GB SATA SSD, Windows 11 Pro, multi-touch resistive screen, dual LAN, dual COM.

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity32GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i5 10th Gen

Memory Capacity 32GB DDR4

SSD 512GB

  • IP65 front panel resists dust and water ingress
  • Intel Core i5-10310U up to 4.40 GHz handles industrial workloads
  • 32GB DDR4 memory and 512GB SATA SSD provide responsive multitasking
  • Fanless aluminium alloy chassis runs silently in 0–50 °C range
  • 1" 1024×768 resistive multi-touch screen with 350 cd/m² brightness

Industrial panel PC with IP65 front

The Partaker A19 is a 12.1-inch all-in-one computer built around an Intel Core i5-10310U processor, 32 GB of DDR4 memory and a 512 GB SATA SSD. Its aluminium alloy chassis is fanless and rated IP65 on the front panel, providing dust and water-jet protection for continuous operation in harsh environments. Windows 11 Pro comes pre-installed for immediate deployment.

Suited for embedded control and monitoring

This unit fits machine builders, automation integrators and facility managers who need a compact, fanless touch terminal with dual Intel gigabit LAN, two COM ports and wide 9–36 V DC input. It is not for buyers who require a capacitive multi-touch surface, higher storage throughput than SATA allows or a larger widescreen display.

12.1-inch 4:3 resistive touchscreen

The 1024 × 768 TFT LED panel uses an industrial-grade resistive multi-touch layer rated for over 50 000 touches and 350 cd/m² brightness. This screen technology and aspect ratio decide whether the A19 matches the operator interface and mounting cut-out of the target application.

Ciri-ciri utama

  • IP65 front panel resists dust and water ingress
  • Intel Core i5-10310U up to 4.40 GHz handles industrial workloads
  • 32GB DDR4 memory and 512GB SATA SSD provide responsive multitasking
  • Fanless aluminium alloy chassis runs silently in 0–50 °C range
  • 1" 1024×768 resistive multi-touch screen with 350 cd/m² brightness

Spesifikasi

ModelA19-New-I5-10310U-32G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Maximum Memory Supported32 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

What comes in the box and what must I source separately?

The unit ships with Windows 11 Pro pre-installed, 32 GB DDR4 memory, a 512 GB M.2 SATA SSD and a 12 V 5 A power adapter; the Mini PCIe slot for Wi-Fi or 4G is empty and any 2.5" SATA drive for RAID is not included.

The spec lists one M.2 2280 SATA slot and one 2.5" SATA bay — which should I use for the OS and which for extra capacity?

The 512 GB M.2 SATA SSD already holds the OS; add a 2.5" SATA SSD or HDD in the second bay if you need more storage or want RAID 0/1 redundancy.

The CPU is rated up to 4.40 GHz — what does that mean for sustained fanless operation at 50 °C ambient?

The i5-10310U will boost to 4.40 GHz for short bursts; under continuous load the fanless aluminium chassis throttles to stay within its 0–50 °C commercial temperature range.
