Gray 17 inch all-in-one industrial panel PC with flat resistive touchscreen and fanless aluminum chassis

partaker

Partaker A29 17" Industrial IP65 Resistive Touch All-in-One PC i5-5200U 16GB 256GB

SKU CH-JQQS-JGVG6

A 17-inch IP65-rated resistive touch all-in-one PC with an Intel Core i5-5200U, 16GB DDR3L RAM, 256GB SSD, dual Gigabit LAN, four USB 3.0 ports, two COM ports, HDMI.

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 5th Gen
  • CPU NameIntel Core i5-5200U

A29 17" Resistive I5 5200U 16GB RAM / 256GB SSD

  • IP65 front panel resists water and dust ingress
  • Resistive touch rated for 50 million touches

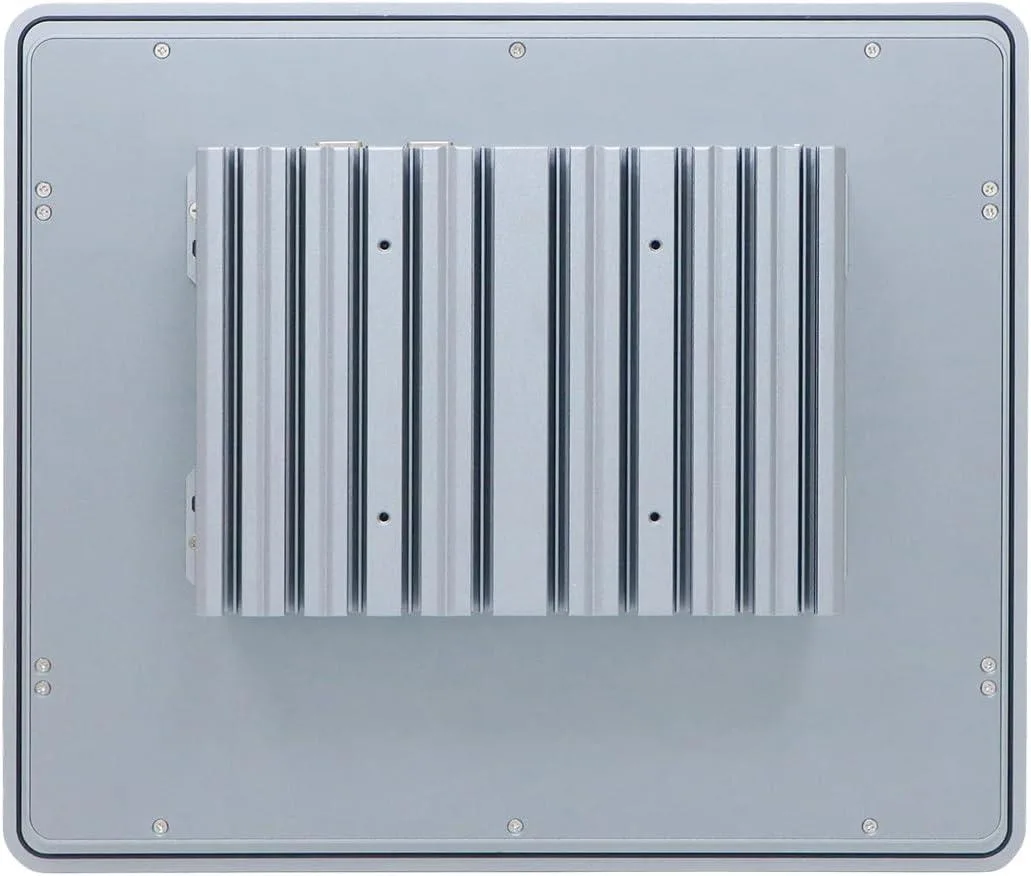

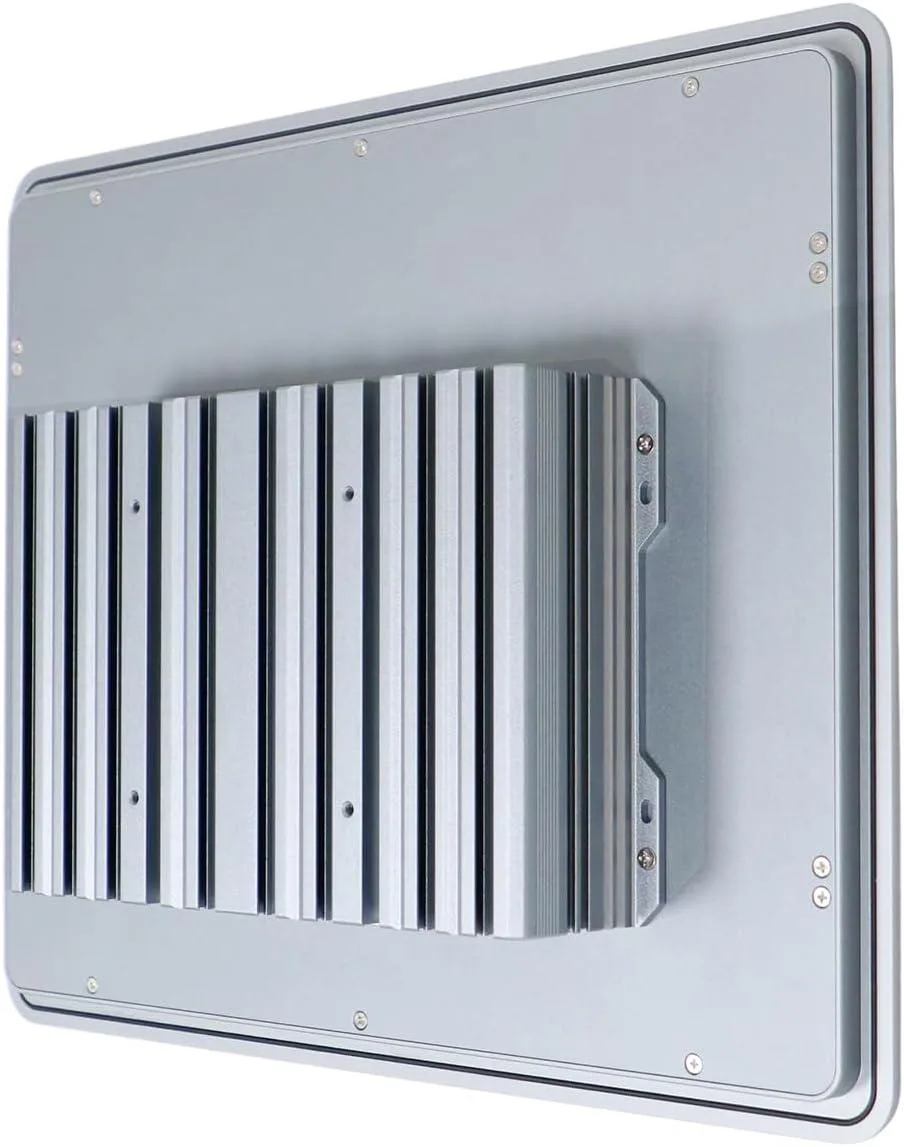

  • Fanless aluminium cooling enables silent 24/7 operation
  • Dual Gigabit LAN plus four USB 3.0 ports
  • Wide temperature range from -20 °C to 60 °C

Industrial All-in-One with Resistive Touch

The Partaker A29 is a 17-inch industrial all-in-one PC built around an Intel Core i5-5200U processor with 16GB of DDR3L memory and a 256GB SATA SSD. Its IP65-rated flat front panel and fanless aluminium chassis allow continuous operation from -20°C to 60°C in dusty or humid environments. Windows 11 Pro comes pre-installed for immediate deployment in automation or HMI roles.

Suited for Factory Automation Not for High-End

This unit suits system integrators and plant engineers who need a compact, rugged HMI with legacy serial ports, dual Gigabit LAN and flexible mounting options. The resistive touchscreen works reliably with gloves or stylus input in noisy electrical environments. Buyers who require a capacitive multi-touch display, higher-resolution screens or faster storage interfaces should look elsewhere.

Resistive Touchscreen Rated for 50 Million Touches

The 1280×1024 5:4 TFT LCD uses a resistive touch layer rated for over 50 million actuations, ensuring long-term reliability in repetitive industrial use. Brightness of 250 cd/m² and full viewing angles maintain readability across shifts. This touch specification is the key factor when deciding whether the panel meets your HMI durability requirements.

Ciri-ciri utama

  • IP65 front panel resists water and dust ingress
  • Resistive touch rated for 50 million touches
  • Fanless aluminium cooling enables silent 24/7 operation
  • Dual Gigabit LAN plus four USB 3.0 ports
  • Wide temperature range from -20 °C to 60 °C

Spesifikasi

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 5th Gen
CPU NameIntel Core i5-5200U
Screen Size17"
Screen TypeMulti-Touch Screen

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

Does the 12 V DC input require a separate power supply, or can the panel PC run directly from a 12 V source?

The unit ships with a 100-240 V AC to 12 V DC adapter, so it needs that supply unless you order the optional 9-36 V wide-voltage version.

Can the two Realtek Gigabit LAN ports operate simultaneously with legacy RS-232/485 devices on the COM ports?

Yes, the dual LAN and dual COM ports are independent; both COM ports support RS-232/485 while the two Gigabit LAN ports handle network traffic.

After installation, how can I verify the resistive touch layer is registering input correctly?

The touch controller is rated for over 50 million touches; use the Windows 11 Pro calibration tool to confirm accurate response across the 1280×1024 screen.
