13.3 inch industrial panel PC with resistive touchscreen and aluminum alloy fanless chassis

partaker

Partaker A3 13.3" industrial panel PC i5-8265U 16GB DDR4 512GB SSD 1TB HDD

SKU CH-SKYT-W000N

13.3" industrial panel PC with IP65 front protection, 5-wire resistive touchscreen, i5-8265U, 16GB DDR4, 512GB SSD plus 1TB HDD, fanless aluminium cooling

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • SSD512GB

Memory Capacity 16GB DDR4

SSD 512GB

HDD 1TB

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • IP65 front panel resists dust and water ingress in harsh environments
  • 5-wire resistive touchscreen operates reliably up to 50 °C
  • Fanless aluminium alloy chassis runs silently for 24/7 operation
  • 16 GB DDR4 with 512 GB SSD and 1 TB HDD provides ample memory and dual storage
  • Intel Core i5-8265U up to 3.90 GHz delivers stable performance for industrial tasks

Industrial panel PC for 24/7 environments

The Partaker A3 is a 13.3-inch all-in-one computer built around an Intel Core i5-8265U processor with 16GB of DDR4 memory. It ships with Windows 11 Pro pre-installed and combines a 512GB SSD with a 1TB hard drive for mixed storage needs. The IP65-rated front panel and 5-wire resistive touchscreen suit factories, kiosks and outdoor cabinets where gloves or moisture are common.

Sustained load behaviour with passive cooling

Fanless aluminium-alloy construction dissipates heat without moving parts, so the system runs silently during continuous 24/7 operation. The CPU reaches up to 3.90 GHz under load while the watchdog timer monitors stability for up to 255 seconds. Operating temperature ranges from 0 to 50°C with the SSD installed and 0 to 40°C when the hard drive is active.

Thermals, noise and power in normal use

Passive cooling eliminates fan noise entirely, making the unit suitable for noise-sensitive control rooms or medical stations. Power is supplied through a 12V DC input that accepts 100-240V AC at 50-60Hz. The 300 cd/m² display with 800:1 contrast and 70/55-degree viewing angles remains readable in bright industrial lighting.

Ciri-ciri utama

  • IP65 front panel resists dust and water ingress in harsh environments
  • 5-wire resistive touchscreen operates reliably up to 50 °C
  • Fanless aluminium alloy chassis runs silently for 24/7 operation
  • 16 GB DDR4 with 512 GB SSD and 1 TB HDD provides ample memory and dual storage
  • Intel Core i5-8265U up to 3.90 GHz delivers stable performance for industrial tasks

Spesifikasi

ModelA3-PA-133TPC-CE5A(I58)-16G512G1TB
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
SSD512GB
HDD1TB
Screen Size13.3"
TouchscreenYes

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

How much noise and heat does the fanless aluminium chassis produce during continuous 24/7 operation?

The passive aluminium alloy cooling system runs silently with no moving parts, and the unit is rated for 0 to 50 °C ambient temperature when the SSD is used as primary storage.

Which power source and mounting hardware must I already have to install this panel PC?

A 12 V DC supply from the included 100–240 V AC adapter and the embedded buckle kit for the 326 x 232 mm panel cut-out are required.

Will my legacy VGA monitor and RS-232 devices connect directly to the HDMI, VGA and dual COM ports?

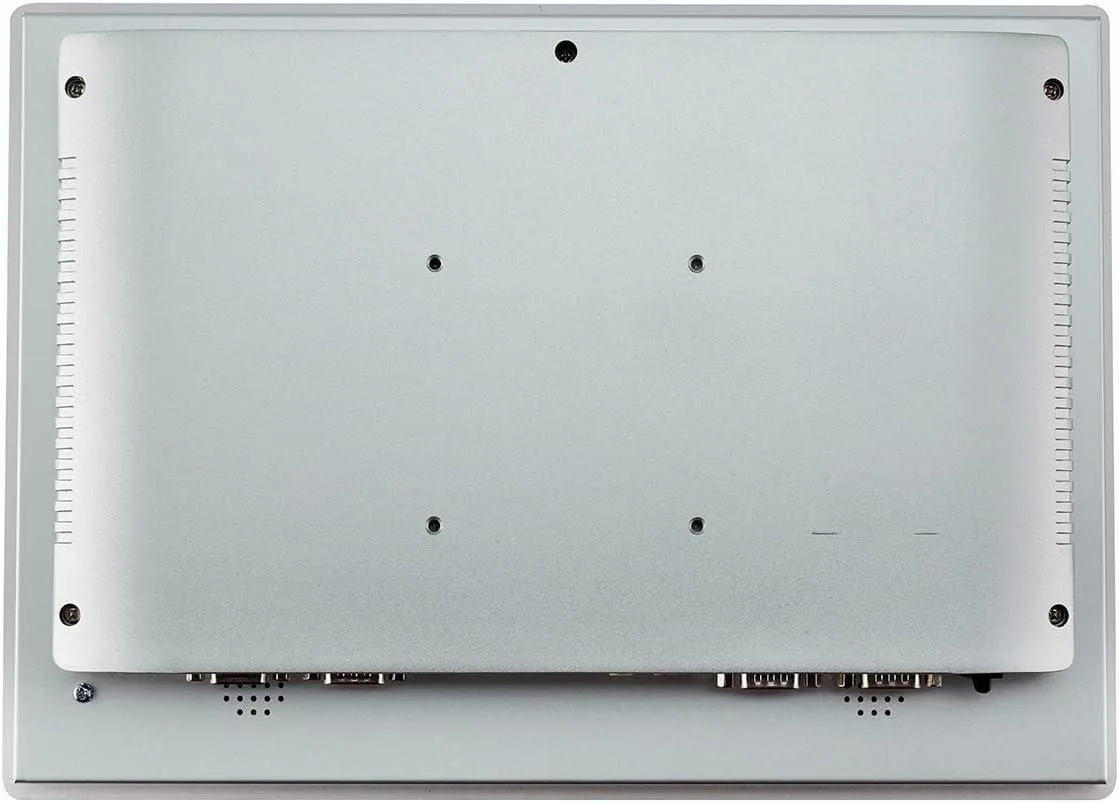

Yes, the rear I/O provides both HDMI and VGA video outputs plus two COM ports for serial equipment, all usable alongside the i5-8265U platform.
