13.3 inch all-in-one with IP65 front panel and resistive touchscreen

partaker

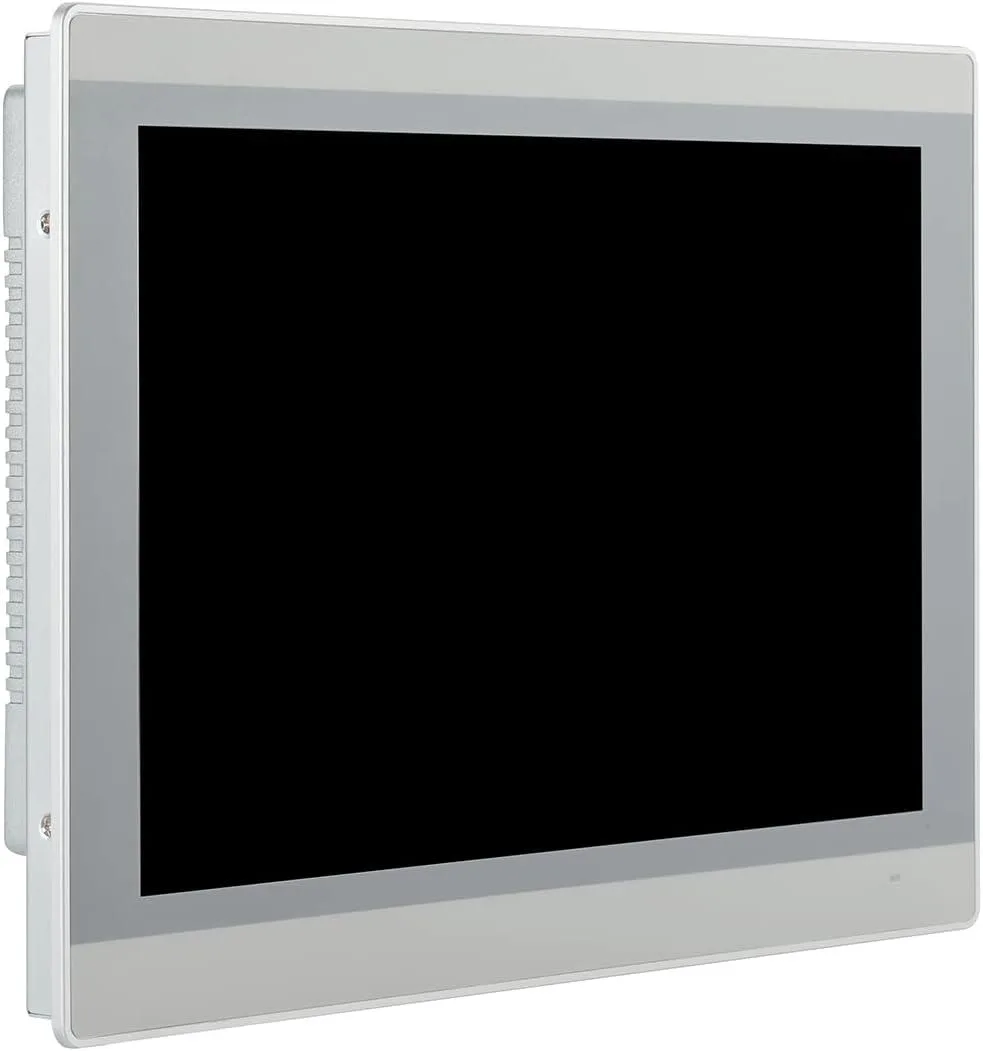

partaker A3 all-in-one PC 13.3" i5-1135G7 16GB DDR4 256GB

SKU CH-3ES2-R4VAE

A 13.3" IP65-rated industrial all-in-one with a resistive touchscreen, fanless aluminium cooling, Intel Core i5-1135G7, 16GB DDR4 and 256GB SSD for embedded or wall-mounted deployment

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • GPU/VGA TypeIntel Iris Xe Graphics
  • Memory Capacity16GB DDR4
  • SSD256GB

Memory Capacity 16GB DDR4

SSD 256GB

HDD None

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • IP65 front panel resists dust and water jets
  • Fanless aluminium alloy chassis runs silently 24/7
  • 3" resistive touchscreen rated for 35 million touches
  • Dual LAN plus four USB and two COM ports for industrial I/O
  • Expandable to 64 GB DDR4 with dual M.2 slots for Wi-Fi 6 or 5G

Industrial touch panel for continuous operation

The Partaker A3 is a 13.3 inch all-in-one PC built around an Intel Core i5-1135G7 processor with Intel Iris Xe graphics. It ships with 16GB of DDR4 memory and a 256GB SSD, running Windows 11 Pro out of the box. The IP65-rated front panel and high-temperature 5-wire resistive touchscreen are designed for reliable input in industrial environments.

Fanless cooling sustains performance without

An aluminium alloy chassis dissipates heat passively, so the system runs silently during round-the-clock workloads. The CPU reaches up to 4.20 GHz when thermal headroom allows, and the fanless design removes moving parts that could fail under vibration or dust. Operating temperature ranges from 0 to 50 °C with the installed SSD, supporting continuous duty cycles.

Silent operation with low power draw

Passive cooling means zero acoustic noise in normal use, while the 12V DC input draws power from an external 100-240V AC adapter. The 13.3 inch TFT LED panel delivers 300 cd/m² brightness and 800:1 contrast for clear visibility. With a rated backlight life of 20,000 hours and touch durability of 35 million cycles, the display is built for long service intervals.

Ciri-ciri utama

  • IP65 front panel resists dust and water jets
  • Fanless aluminium alloy chassis runs silently 24/7
  • 3" resistive touchscreen rated for 35 million touches
  • Dual LAN plus four USB and two COM ports for industrial I/O
  • Expandable to 64 GB DDR4 with dual M.2 slots for Wi-Fi 6 or 5G

Spesifikasi

ModelA3-PA-133TPC-CE5A(I5B)-16G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity16GB DDR4
SSD256GB
HDDNo
Screen Size13.3"
TouchscreenYes

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

Does the fanless aluminum chassis stay quiet and cool when the i5-1135G7 runs at 4.20 GHz all day?

Yes, the passive aluminum alloy cooling is designed for silent, continuous operation at the processor's maximum turbo frequency.

Which display cables and DC power source must I already have to connect the HDMI and VGA outputs and the 12 V input?

You need an HDMI cable, a VGA cable and a 12 V DC supply that accepts 100-240 V AC at 50-60 Hz.

Can I keep my RS-232 devices on the two COM ports and legacy monitors on VGA while adding a modern display on HDMI?

Yes, the unit provides two COM ports, one VGA and one HDMI so legacy serial gear and older monitors work alongside a newer screen.
