Gray 21.5 inch industrial all-in-one with flat resistive touch front panel

partaker

Partaker A30 21.5" all-in-one PC i5-4200U 8GB 128GB SSD IP65 resistive touch Windows 11 Pro

SKU CH-4M0N-BGJYV

21.5" IP65 resistive-touch panel PC with fanless cooling, dual LAN, four USB 3.0 and two COM ports for industrial automation

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U

A30 21.5" Resistive I5 4200U 8GB RAM / 128GB SSD

  • IP65 front panel resists dust and water jets in harsh environments

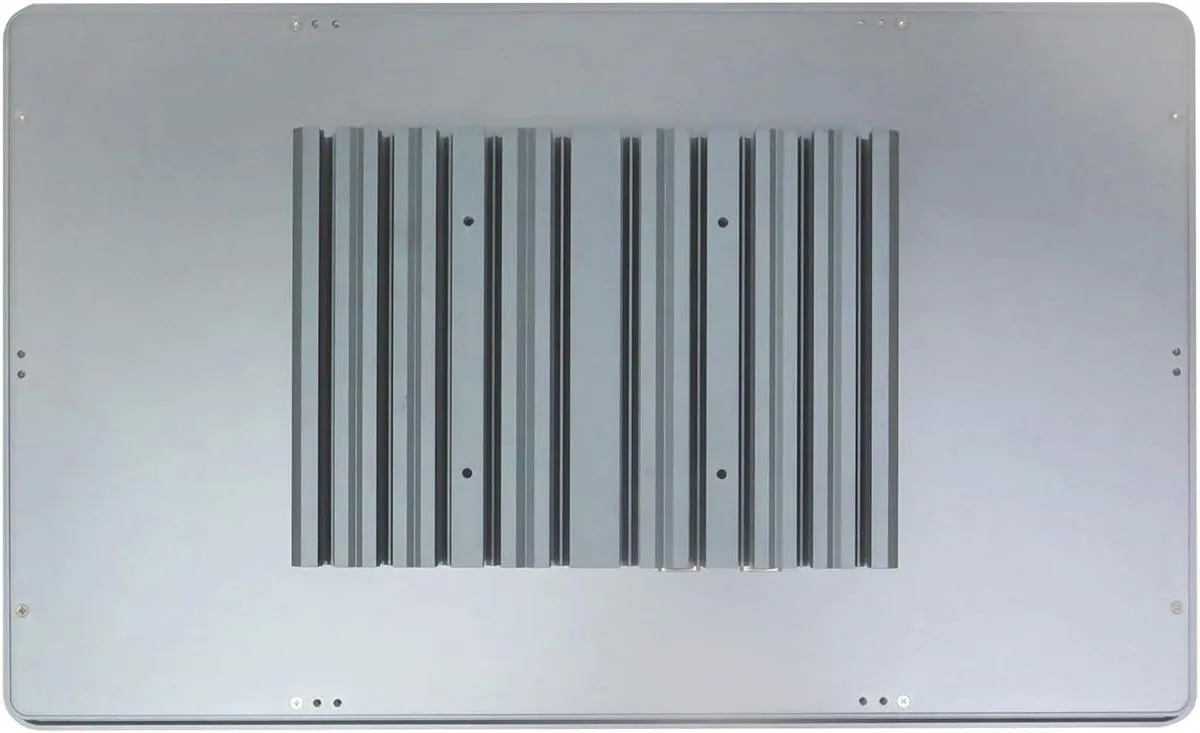

  • Fanless aluminium cooling enables silent 24/7 operation from -20 °C to 60 °C
  • Resistive touch rated for over 50 million touches ensures long-term HMI reliability
  • Dual Gigabit LAN plus four USB 3.0 and two COM ports provide flexible industrial connectivity
  • Expandable with two Mini PCIe slots and dual storage (mSATA + 2.5" SATA) for field upgrades

Industrial All-in-One with IP65 Front Panel

The Partaker A30 is a 21.5-inch all-in-one computer built around an Intel Core i5-4200U processor, 8 GB of DDR3L memory and a 128 GB mSATA SSD. Its flat front panel carries an IP65 rating and a resistive touch layer rated for more than 50 million touches. Passive aluminium cooling allows silent, fanless operation across a -20 °C to 60 °C range, making it suitable for continuous duty in factory and automation settings.

Suited for HMI and Control Cabinets.

This unit targets integrators who need a sealed, wall- or panel-mounted human-machine interface with legacy serial ports and dual Gigabit LAN for PLC communication. Buyers who want a consumer-style desktop for web browsing, media playback or standard office applications should look elsewhere, as the resistive touch screen and fourth-generation mobile CPU are optimised for industrial reliability rather than desktop responsiveness.

128 GB Boot Drive with Room for a Second 2.5-Inch

The supplied 128 GB mSATA SSD handles the operating system and typical SCADA or historian workloads with headroom for logs and local databases. A second 2.5-inch SATA bay is available for additional storage, while the two SODIMM slots support up to 16 GB of DDR3L if larger datasets require more memory. Expansion via the Mini PCIe slots can add wireless or cellular links without opening the sealed chassis.

Ciri-ciri utama

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminium cooling enables silent 24/7 operation from -20 °C to 60 °C
  • Resistive touch rated for over 50 million touches ensures long-term HMI reliability
  • Dual Gigabit LAN plus four USB 3.0 and two COM ports provide flexible industrial connectivity
  • Expandable with two Mini PCIe slots and dual storage (mSATA + 2.5" SATA) for field upgrades

Spesifikasi

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
Screen Size21.5"
Screen TypeMulti-Touch Screen

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

Does the Partaker A30 need an external power brick to run, or can I wire it straight to a 12 V DC bus?

The unit ships with a 100-240 V AC to 12 V DC adapter, but the motherboard accepts 9-36 V DC directly for wide-voltage installations.

Will my existing RS-485 sensors plug straight into the COM ports without adapters?

Both COM ports support RS232 and RS485, so legacy serial devices connect natively.

How can I verify the resistive touch layer is still within its rated lifespan after deployment?

The touch controller logs cumulative touches; the panel is rated for over 50 million actuations.
