15.6 inch IP65 industrial panel PC, aluminium fanless chassis, resistive touchscreen

partaker

partaker A7 15.6" all-in-one PC i5-1135G7 32GB DDR4 1TB SSD

SKU CH-7ARF-1V7PW

A 15.6-inch industrial all-in-one with IP65 front protection, Intel Core i5-1135G7, 32GB DDR4, 1TB SSD and resistive touchscreen for continuous operation

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • GPU/VGA TypeIntel Iris Xe Graphics
  • Memory Capacity32GB DDR4
  • SSD1TB

Memory Capacity 32GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 8GB DDR4

SSD 1TB

HDD None

  • 1TB
  • None

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • IP65 front-panel protection withstands dust and water jets
  • Fanless aluminium alloy cooling runs silently in 24/7 industrial use
  • High-temperature 5-wire resistive touchscreen rated for 35 million touches
  • Intel Core i5-1135G7 with 32 GB DDR4 and 1 TB SSD handles continuous workloads

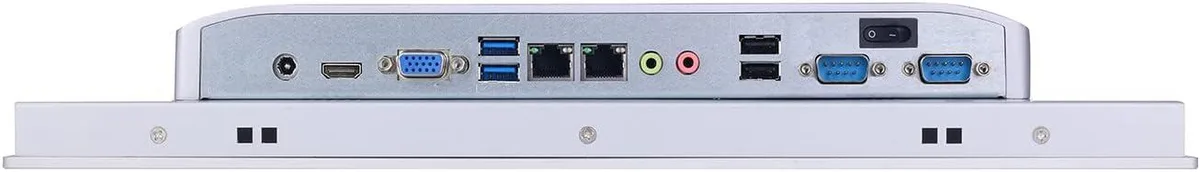

  • Versatile I/O includes HDMI, VGA, dual LAN, dual COM and four USB ports

Industrial all-in-one for 24/7 operations

The Partaker A7 is a 15.6 inch fanless panel PC rated IP65 on the front and built for continuous industrial use. An Intel Core i5 1135G7 processor with Intel Iris Xe graphics drives Windows 11 Pro on 32GB of DDR4 memory and a 1TB SSD. The 5-wire resistive touchscreen works reliably with gloves or in high-temperature conditions up to 50°C.

Upgrade from fan-cooled or non-IP systems

This unit replaces panel PCs that rely on active cooling or lack front-panel ingress protection. The jump is worth it when silence, dust resistance and 7x24 reliability matter more than maximum compute density. It also supersedes older resistive screens with lower durability, offering 35 million touch cycles and 80 percent transmittance at 550 nm.

Embedded mount with DC power and legacy I/O

Installation uses the supplied embedded buckle kit into a 386.5 by 236 mm cut-out, with wall, desktop or cantilever options also possible. The 12V DC input accepts 100 to 240V AC via the included adapter. Common issues include forgetting the DC jack polarity, overlooking the two COM ports for legacy equipment, and not reserving space for the 54.5 mm depth behind the panel.

Ciri-ciri utama

  • IP65 front-panel protection withstands dust and water jets
  • Fanless aluminium alloy cooling runs silently in 24/7 industrial use
  • High-temperature 5-wire resistive touchscreen rated for 35 million touches
  • Intel Core i5-1135G7 with 32 GB DDR4 and 1 TB SSD handles continuous workloads
  • Versatile I/O includes HDMI, VGA, dual LAN, dual COM and four USB ports

Spesifikasi

ModelA7-PA-156TPC-CE5A(I5B)-32G1TBSSD
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity32GB DDR4
SSD1TB
HDDNo
Screen Size15.6"
TouchscreenYes

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

What cut-out size does the 15.6" IP65 panel need for embedded mounting?

The opening hole measures 386.5 x 236 mm, matching the 392.6 x 241.7 x 54.5 mm chassis with embedded buckle kits included.

Which step is often missed when fitting the fanless aluminium chassis?

Many installers forget to connect the 12 V DC jack before securing the panel, leaving the unit without power.

Which components can be upgraded later inside the A7?

Two SODIMM DDR4-3200 slots support up to 64 GB, one M.2 2260/2280 PCIe/SATA SSD, one 2.5" SATA drive, plus M.2 Key E for WIFI6 and Key B for 5G.
