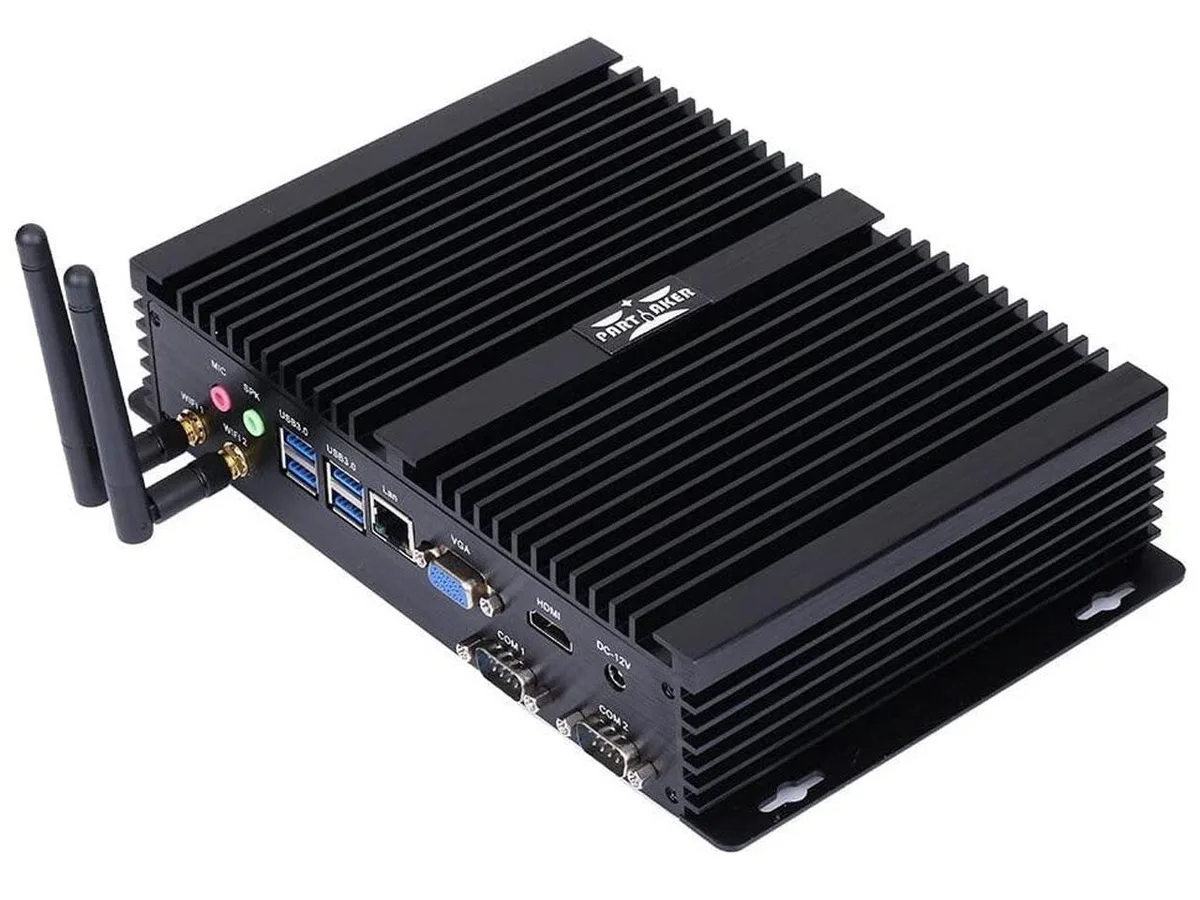

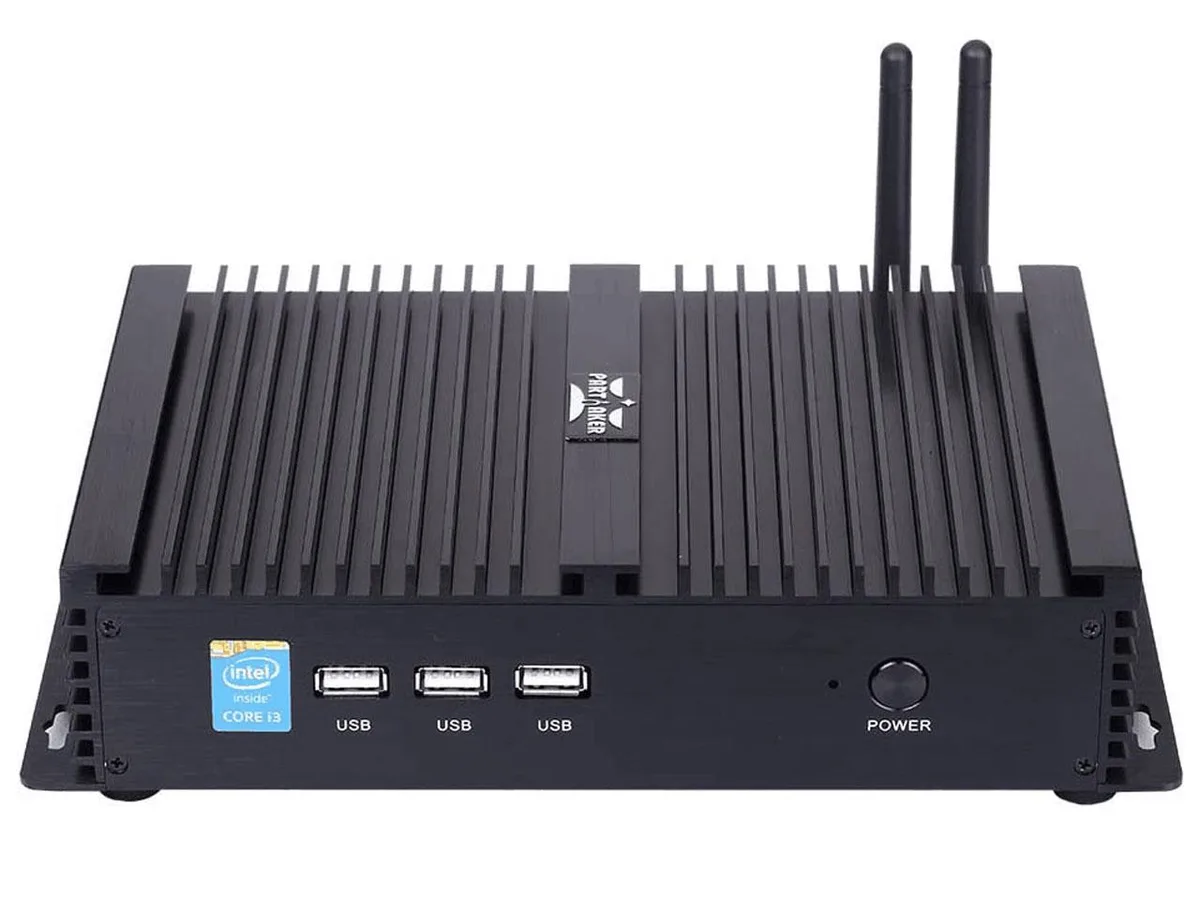

Black aluminium fanless mini PC with mounting ears, compact rectangular shape

partaker

partaker I3 barebone mini PC i7-10510U/10610U 8GB 240GB

SKU CH-VYJG-5SMQA

Fanless industrial mini PC with an Intel Core i7 10th Gen processor, 8 GB DDR4, 240 GB SSD, dual display outputs and serial ports

  • ColorBlack
  • CPU TypeIntel Core i7 10th Gen

Group 8GB / 256GB SSD

  • Intel Core i7 10th Gen CPU delivers strong compute power
  • Fanless aluminium chassis runs silently at 15W typical draw
  • Dual 4K display support via HDMI and VGA outputs
  • Expandable to 64GB DDR4 with two SO-DIMM slots
  • Rich legacy I/O includes dual COM RS232 and seven USB ports

Partaker I3 Fanless Mini PC

The Partaker I3 is a fanless industrial barebone Mini-PC supplied new. It ships with an Intel Core i7-10510U or i7-10610U processor, 8 GB of DDR4-2666 memory and a 240 GB SSD. An aluminium chassis and passive cooling allow continuous 24/7 operation in temperatures from 0 °C to 70 °C. Dual-display output via HDMI and VGA supports simultaneous or different screen configurations.

Who This Suits and Who Should Look Elsewhere

This unit suits integrators and operators who need a silent, rugged computer for control cabinets, signage or edge tasks that run around the clock. The two SO-DIMM slots accept up to 64 GB of RAM and the 2.5-inch SATA bay plus mSATA slot provide flexible storage expansion. Buyers who need more than one LAN port, additional serial interfaces beyond the two COM ports, or active cooling for higher sustained loads should consider a different platform.

Key Specification: Fanless 15 W Operation

The defining specification is the fanless design rated at 15 W typical consumption. Passive cooling eliminates moving parts, reducing maintenance and enabling silent deployment in dusty or vibration-prone environments. The 12 V DC input with wide-range AC adapter simplifies power planning for industrial cabinets. Verify that the thermal envelope matches your workload before purchase.

Ciri-ciri utama

  • Intel Core i7 10th Gen CPU delivers strong compute power
  • Fanless aluminium chassis runs silently at 15W typical draw
  • Dual 4K display support via HDMI and VGA outputs
  • Expandable to 64GB DDR4 with two SO-DIMM slots
  • Rich legacy I/O includes dual COM RS232 and seven USB ports

Spesifikasi

ColorBlack
CPU TypeIntel Core i7 10th Gen

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

How do I mount the Partaker I3 and which step is often missed?

Use the integrated mounting ears to fix the 234 x 150 x 43 mm aluminum chassis to a wall or DIN rail, then attach the two supplied WiFi antennas before powering on; skipping the antennas leaves the 802.11 ac radio without external gain.

What memory or storage upgrades will this unit need later?

Two SO DIMM DDR4-2666 slots support up to 64 GB total; storage can be expanded via one mSata SSD and one 2.5 inch SATA SSD or HDD.

What thermal limit appears first during continuous 24/7 load?

The fanless design is rated for 0–70 °C operating temperature; sustained loads that push the chassis beyond 70 °C will trigger throttling before any other component limit is reached.
