Green circuit board with four stacked blue USB ports and a metal bracket

STARTECH

STARTECH PEXUSB3S4V 4 Port PCI Express USB 3.0 Expansion Card

SKU CH-9KJD-KDZZW MPN PEXUSB3S4V

Adds four external USB 3.0 ports with UASP support via PCI Express, includes a SATA power connector and low-profile bracket

  • TypePCI Express to USB Card
  • Internal Ports1 x SATA
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • CompatibilityWindows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008
  • Features4 external USB 3.0 ports in a stacked layout Fully compliant

External USB Ports 4 Ext

  • Add 4 external USB 3.0 ports via PCI Express
  • Supports up to 5.0 Gbps data transfer rate
  • Includes low-profile bracket for small-form-factor builds
  • Optional SATA power connector for bus-powered devices
  • Compatible with Windows XP through 8 (32/64-bit)

Add four USB 3.0 ports via PCI Express

This StarTech.com PEXUSB3S4V controller card adds four external USB 3.0 ports to a desktop computer through a PCI Express slot. It supports data transfer rates up to 5.0 Gbps and includes a low-profile bracket for small-form-factor cases. A SATA power connector is provided for bus-powered devices. The card is fully compliant with USB 3.0 revision 1.0 and Intel xHCI rev0.95 specifications.

Suits Windows desktops needing more USB 3.0 ports

This card suits owners of compatible Windows desktops such as the Lenovo ThinkCentre M93p or Dell OptiPlex 3010 who need additional SuperSpeed ports. Driver support covers Windows XP, Vista, 7, 8 and Server 2003 or 2008 R2 in both 32-bit and 64-bit editions. It is not for systems lacking a free PCI Express slot or for users requiring USB 3.1 or 3.2 speeds.

PCI Express x1 interface with SATA auxiliary power

The card installs in a single PCI Express slot and draws supplementary power from an internal SATA connector to support multiple bus-powered peripherals. Four ports are arranged in a stacked layout on a full-height bracket, with a half-height bracket included for low-profile chassis. A driver CD and manual complete the package.

Ciri-ciri utama

  • Add 4 external USB 3.0 ports via PCI Express
  • Supports up to 5.0 Gbps data transfer rate
  • Includes low-profile bracket for small-form-factor builds
  • Optional SATA power connector for bus-powered devices
  • Compatible with Windows XP through 8 (32/64-bit)

Spesifikasi

BrandStarTech.com
ModelPEXUSB3S4V
TypePCI Express to USB Card
Internal Ports1 x SATA
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
CompatibilityWindows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
Features4 external USB 3.0 ports in a stacked layout
Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications
Built-in optional SATA power connector for bus-powered USB devices
Optionally provides up to 900mA per USB port
Backward compatible with USB 2.0 and USB 1.0/1.1 devices
Compliant with PCI Express 2.0 specifications
Includes a Low Profile/half-height installation bracket
Add 4 external USB 3.0 ports to a low profile or standard computer through PCI Express
Compatible with Lenovo ThinkCentre M93p / Dell OptiPlex 3010
4 Port PCI Express SuperSpeed U
Dimensions0.7" x 2.7" x 3"
Weight1.6 oz.

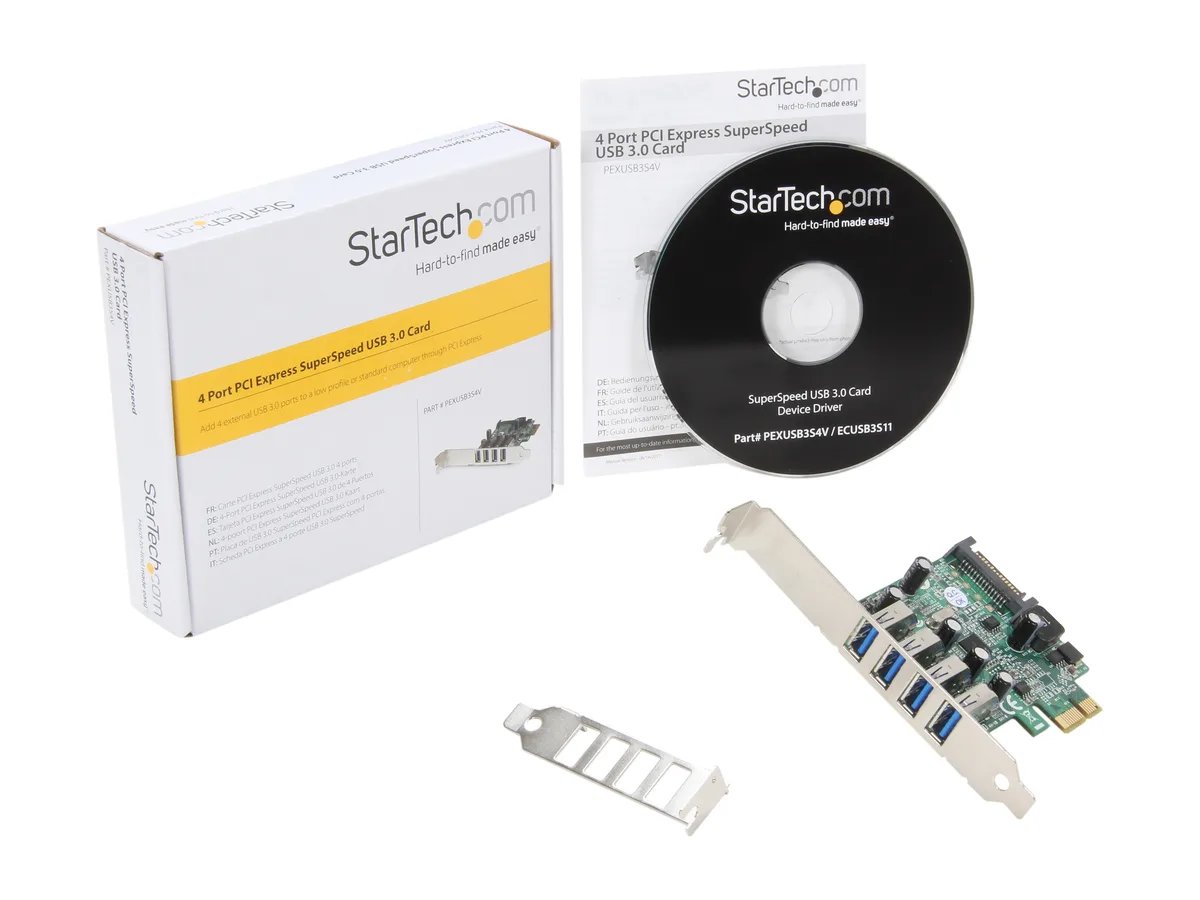

Package Contents1 - PCI Express USB 3.0 Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
Berat penghantaran0.15 kg
Dimensi bungkusan163 × 127 × 34 mm

Versi lain model ini

2 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

How much heat or noise does the card produce when running all day?

The card has no fan and draws power through a SATA connector, so it adds negligible heat and makes no audible noise during continuous operation.

What must my desktop already have for this card to work?

A free PCI Express slot and an internal SATA power cable from the power supply to feed bus-powered USB devices.

Will the card work with my older Windows 7 64-bit system?

Yes, the driver CD supports Windows 7 64-bit as well as Vista, XP, Server 2003 and Server 2008 R2 in both 32-bit and 64-bit versions.
