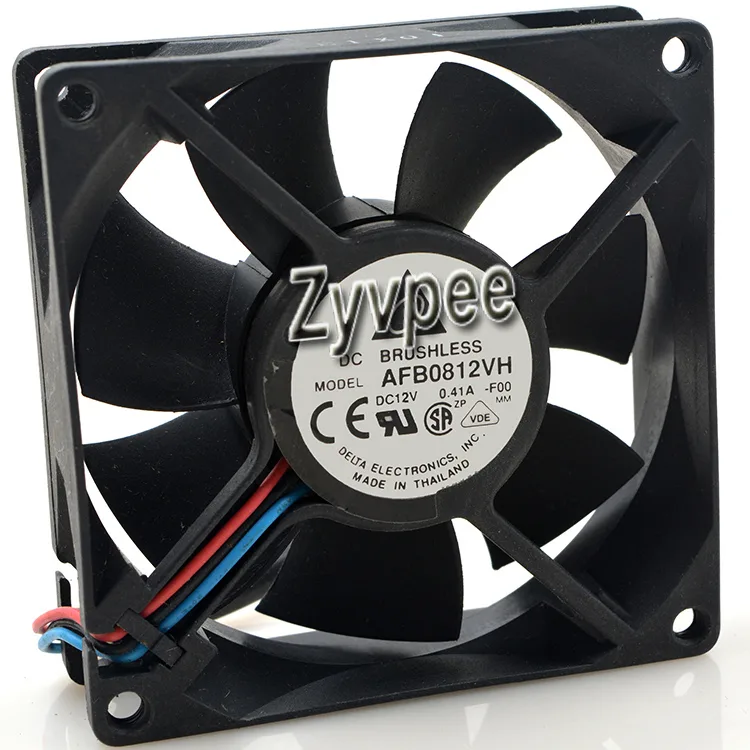

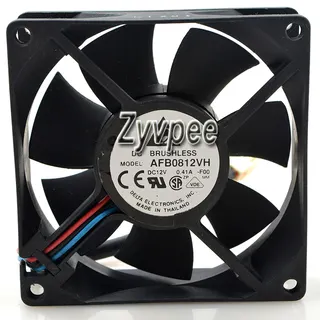

Black square 80mm case fan with ball bearing and three wire connector

SunnyStar Co., Ltd

SunnyStar Co., Ltd AFB0812VH 80*25mm 12V .41A 3 Pin case fan

SKU CH-V07B-A6067

80 mm ball-bearing case fan running on 12 V at .41 A with a three-pin connector

  • TypeCase Fan
  • Bearing TypeBall
  • Power Connector2 Pin
  • ColorBlack
  • LEDNon-LED
  • FeaturesDC square Cooler
  • Ball bearing for reliable long-term operation
  • 12 V .41 A power draw fits standard headers
  • 80 x 80 x 25 mm frame suits compact cases
  • 3-pin connector enables motherboard speed monitoring
  • Non-LED black design keeps builds clean

80 mm ball-bearing case fan

The SunnyStar AFB0812VH is an 80 mm square frame fan designed for system chassis or CPU cooler mounting. It suits builders who need a compact 12 V DC cooler with a standard three-wire connection for speed monitoring.

Check voltage header and screw spacing

Verify that your motherboard or fan controller provides a 12 V header with three pins for the tachometer signal. Confirm the mounting holes match an 80 mm square pattern and that 25 mm thickness clears adjacent components or side panels.

Ball bearing and three-wire lead

The ball bearing assembly offers durable rotation for continuous operation. Black plastic frame and blades keep the appearance neutral inside any build. The three-wire lead delivers power, ground and RPM feedback without PWM control, so speed varies with voltage only.

Ciri-ciri utama

  • Ball bearing for reliable long-term operation
  • 12 V .41 A power draw fits standard headers
  • 80 x 80 x 25 mm frame suits compact cases
  • 3-pin connector enables motherboard speed monitoring
  • Non-LED black design keeps builds clean

Spesifikasi

SeriesAFB0812VH
ModelAFB0812VH
TypeCase Fan
Bearing TypeBall
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler

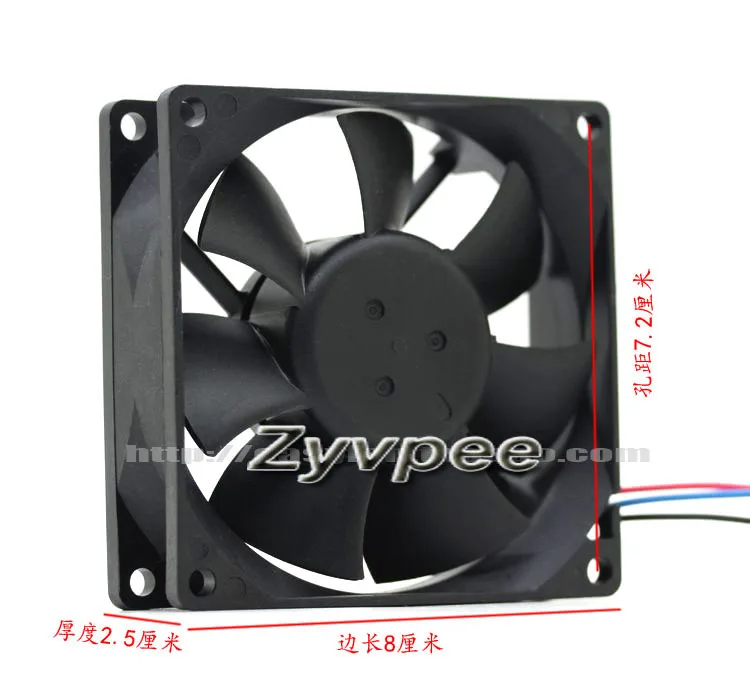

Dimensions80*80*25mm

Soalan tentang produk ini

Does the AFB0812VH fan include mounting screws or do I need to buy them separately?

The fan unit is supplied without mounting screws; standard 80 mm case-fan screws must be purchased separately.

The title mentions 3 wires and 3 pins while the specs list a 2-pin connector — which version will I receive?

The specification sheet defines the power connector as 2-pin; the third wire is a tachometer lead, so the fan ships with a 3-wire lead terminating in a 2-pin housing.

What does the 0.41 A current draw mean for a typical 12 V motherboard header?

At 0.41 A the fan draws roughly 5 W, well within the 1 A limit of most 12 V 3-pin headers, so it can run directly from the board without an adapter.
