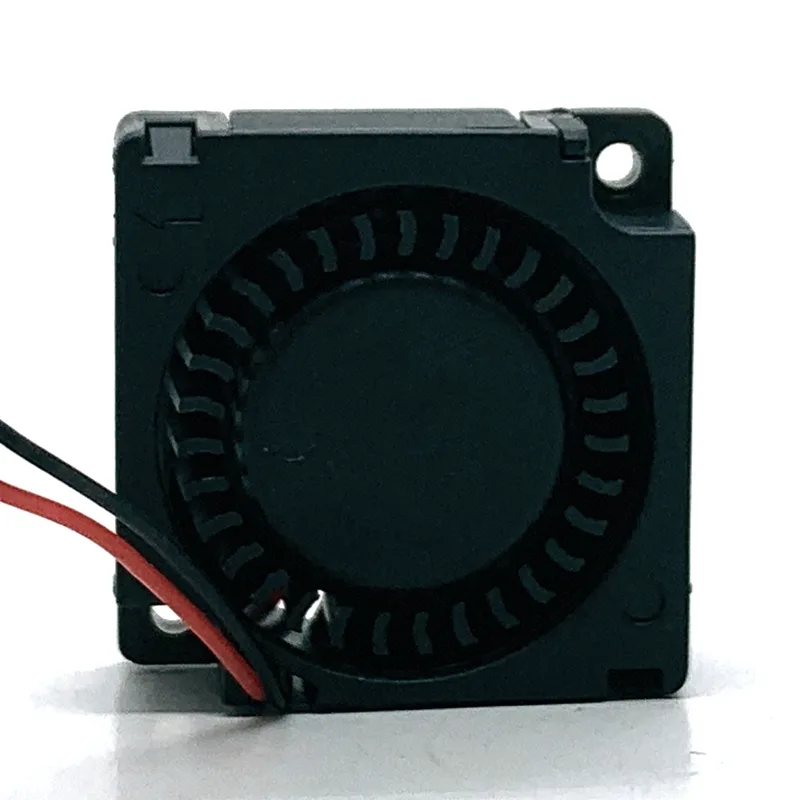

Small square blower fan, 30mm wide, 10mm thick, black plastic housing with central air outlet

SXDOOL

SXDOOL xg3010s5m 3010 5V 30mm blower fan 7800rpm 3d printers accessory

SKU CH-KCKZ-ZDH7A MPN xg3010s5m

A 30 mm blower fan delivering 7800 rpm airflow from a 5 V supply for focused 3D printer cooling

  • TypeCase Fan
  • Power Connector2 Pin
  • Ultra-thin 10 mm profile fits tight printer enclosures
  • 7800 rpm blower delivers focused cooling for hotend
  • 5 V 0.15 A draw runs from standard USB power
  • 0 mm 2-pin plug with 4.7 cm lead simplifies wiring
  • 1 cm outlet at 0.8 cm height directs airflow precisely

Compact 3010 Blower for 3D Printers

The SXDOOL xg3010s5m is a 30 mm square blower fan designed for 3D printer cooling. It runs on 5 V DC and draws 0.15 A through a 2 pin connector with a 4.7 cm lead. The 3010 form factor fits tight ducts on many printer models.

Thermals Noise and Power

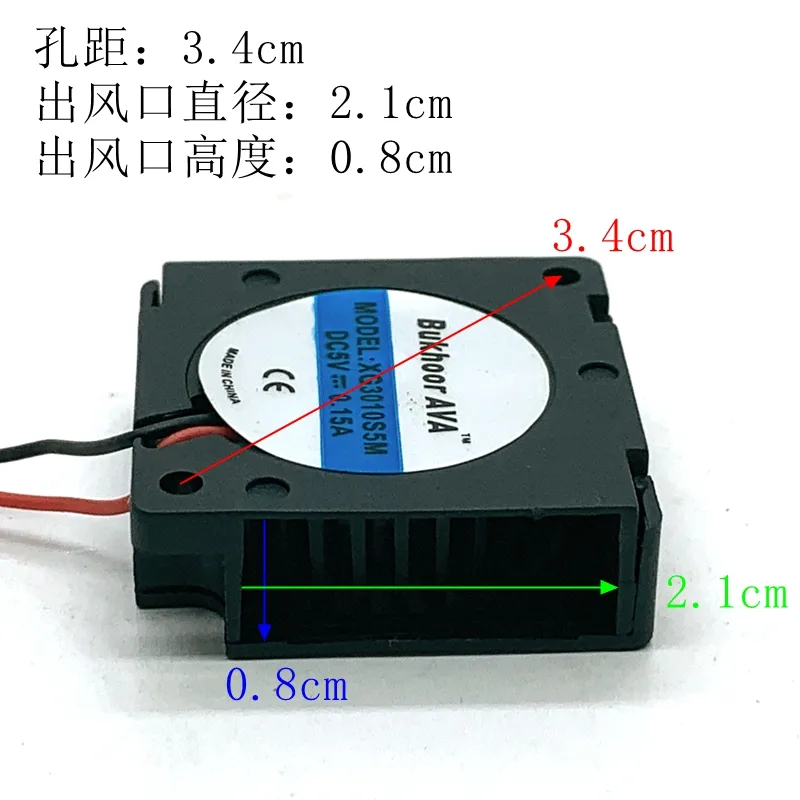

At 7800 rpm the fan moves air through a 2.1 cm outlet that is 0.8 cm high. The 5 V supply keeps power draw low for USB or board powered operation. Thin 10 mm profile allows placement in confined spaces without adding bulk.

Mounting Pattern Decides Fit

Hole spacing measures 3.4 cm between centres and the plug uses a 2.0 mm pitch. Verify these dimensions against your printer's fan mount and header before ordering. The 2 wire lead has no PWM or tachometer signal.

Ciri-ciri utama

  • Ultra-thin 10 mm profile fits tight printer enclosures
  • 7800 rpm blower delivers focused cooling for hotend
  • 5 V 0.15 A draw runs from standard USB power
  • 0 mm 2-pin plug with 4.7 cm lead simplifies wiring
  • 1 cm outlet at 0.8 cm height directs airflow precisely

Spesifikasi

TypeCase Fan
Power Connector2 Pin

Soalan tentang produk ini

How do I mount the 30mm blower fan with its 3.4cm hole spacing and 2.0 plug?

Align the four mounting holes at 3.4cm spacing, insert screws, then connect the 2-pin plug to a 5V header; the 4.7cm wire length leaves little slack so route it before tightening.

Will the 2-pin 5V blower fan need bearing lubrication or wire replacement over time?

The sleeve-bearing motor runs at 7800rpm and is not user-serviceable; plan to replace the entire 3010 fan when airflow drops or noise rises, as the 4.7cm leads cannot be swapped separately.

At 7800rpm and 0.15A, what thermal limit appears first during a long print?

Sustained 7800rpm operation at 0.15A typically hits the sleeve-bearing temperature limit first, causing speed decay before the 5V supply reaches its current ceiling.
