Silver 1U rack panel with four M.2 NVMe adapter boards and a small OLED screen

TAURKENAM

TAURKENAM 19 inch 1U Rack Mount Development Board with 4 PCIe to M.2 NVMe Adapters and OLED Display

SKU CH-S6FZ-AX7VK

1U rack-mount chassis holds five Raspberry Pi 5 boards, adds four M.2 NVMe slots and a 0.91-inch OLED display

  • 1U rack-mount fits standard 19-inch server cabinets
  • Four PCIe slots accept M.2 NVMe drives in 2230, 2242, 2260 and 2280 sizes
  • Rear I2C header exposes 5 V, ground, SDA and SCL via PogoPin for Grove peripherals
  • Programmable red LED on GPIO4 gives instant device identification
  • Optional 0.91-inch OLED shows CPU load, memory, IP address and serial number

1U Rack Mount Development Board

This 19 inch 1U rack mount development board integrates up to five Raspberry Pi 5 units into a standard server rack. It includes a motherboard with four PCIe to M.2 NVMe adapters and an optional 0.91 inch OLED display frame. The board routes I2C signals to rear PogoPin connectors in a Grove format. Raspberry Pi boards and heatsink fans are not included.

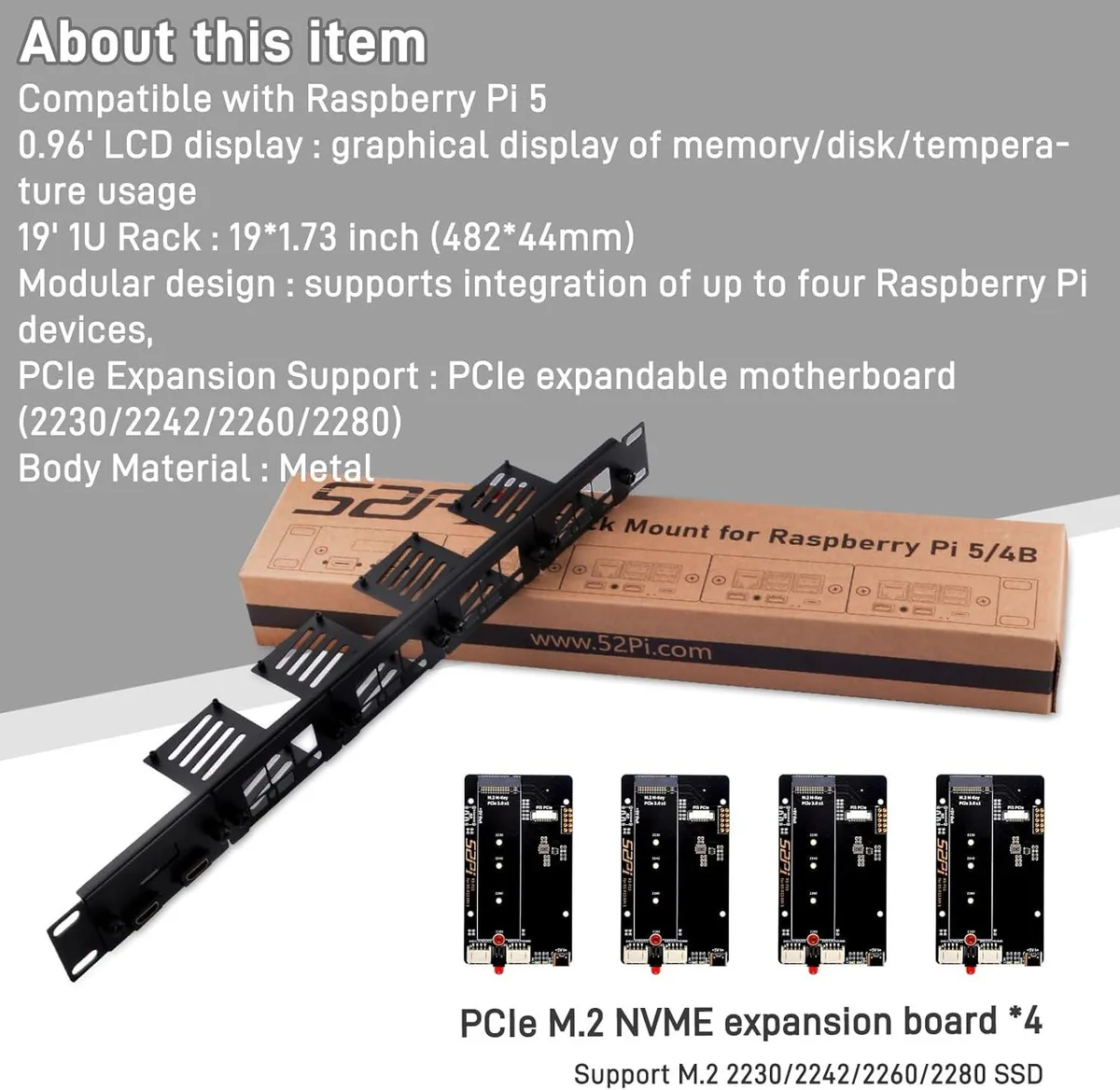

Four PCIe to M.2 NVMe Adapters

The motherboard provides four PCIe expansion slots that accept M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 form factors. This single specification determines whether the board matches the storage devices you plan to install. Each adapter connects directly to the Raspberry Pi 5 PCIe interface for high-speed local storage.

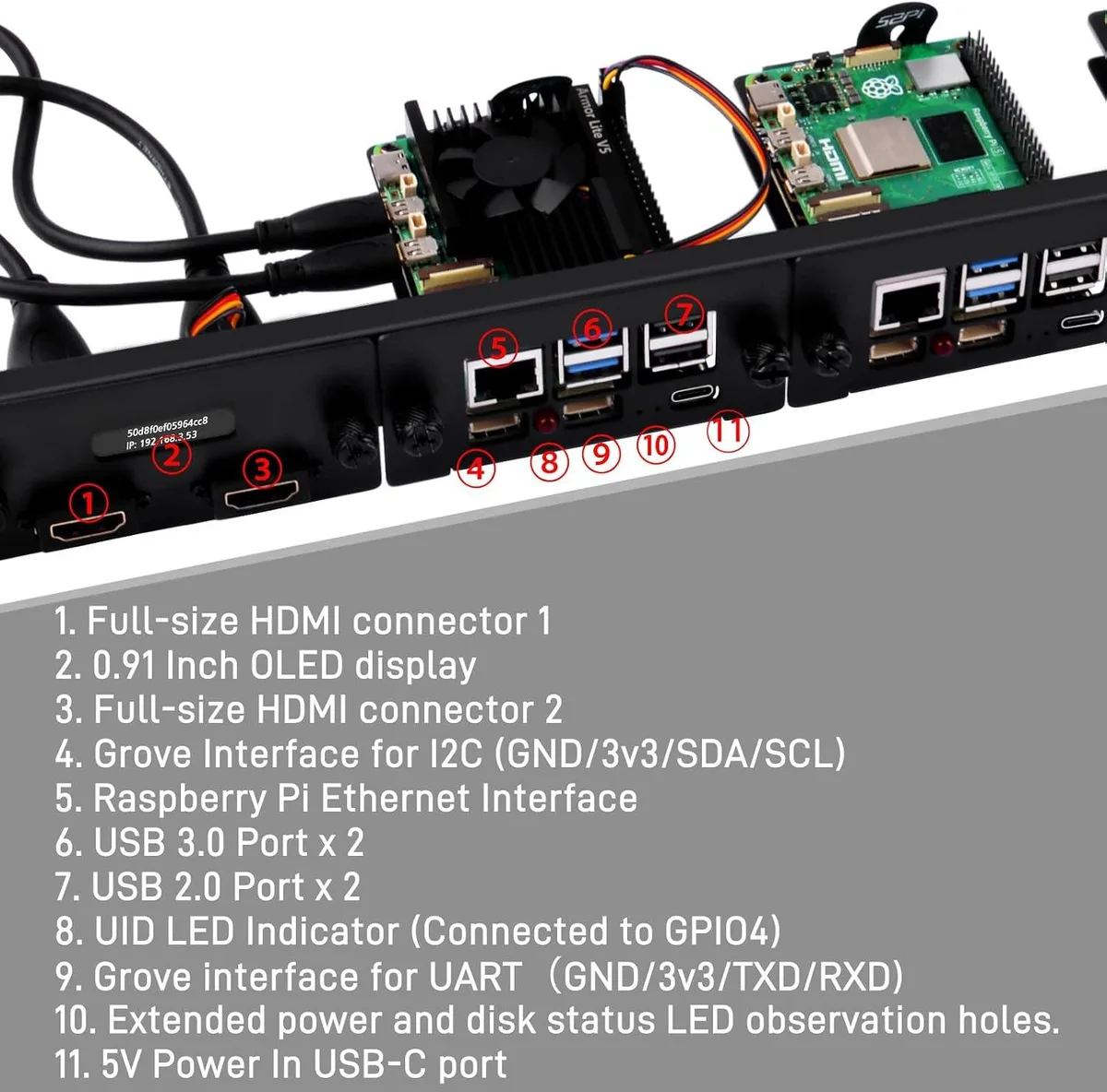

Five Device Slots With OLED Option

The modular chassis holds up to five Raspberry Pi 5 units, with one slot replaceable by the OLED display frame. The 0.91 inch screen shows CPU usage, memory status, IP address and serial numbers over I2C. A programmable red LED on GPIO4 provides device identification. Builders needing more than five compute nodes or a different display size must look elsewhere.

Ciri-ciri utama

  • 1U rack-mount fits standard 19-inch server cabinets
  • Four PCIe slots accept M.2 NVMe drives in 2230, 2242, 2260 and 2280 sizes
  • Rear I2C header exposes 5 V, ground, SDA and SCL via PogoPin for Grove peripherals
  • Programmable red LED on GPIO4 gives instant device identification
  • Optional 0.91-inch OLED shows CPU load, memory, IP address and serial number

Spesifikasi

Belum ada spesifikasi diterbitkan untuk produk ini.

Soalan tentang produk ini

How many Raspberry Pi 5 boards can I actually install in the 1U rack?

The motherboard supports up to five Raspberry Pi 5 units, with one slot optionally replaced by the OLED display frame.

What SSD form factors do the four PCIe-to-M.2 adapters accept?

The adapters fit M.2 NVMe drives in 2230, 2242, 2260 and 2280 lengths.

What physical space does the 1U unit occupy in a 19 inch server rack?

It mounts in a standard 19 inch rack and uses exactly 1U of vertical height.
