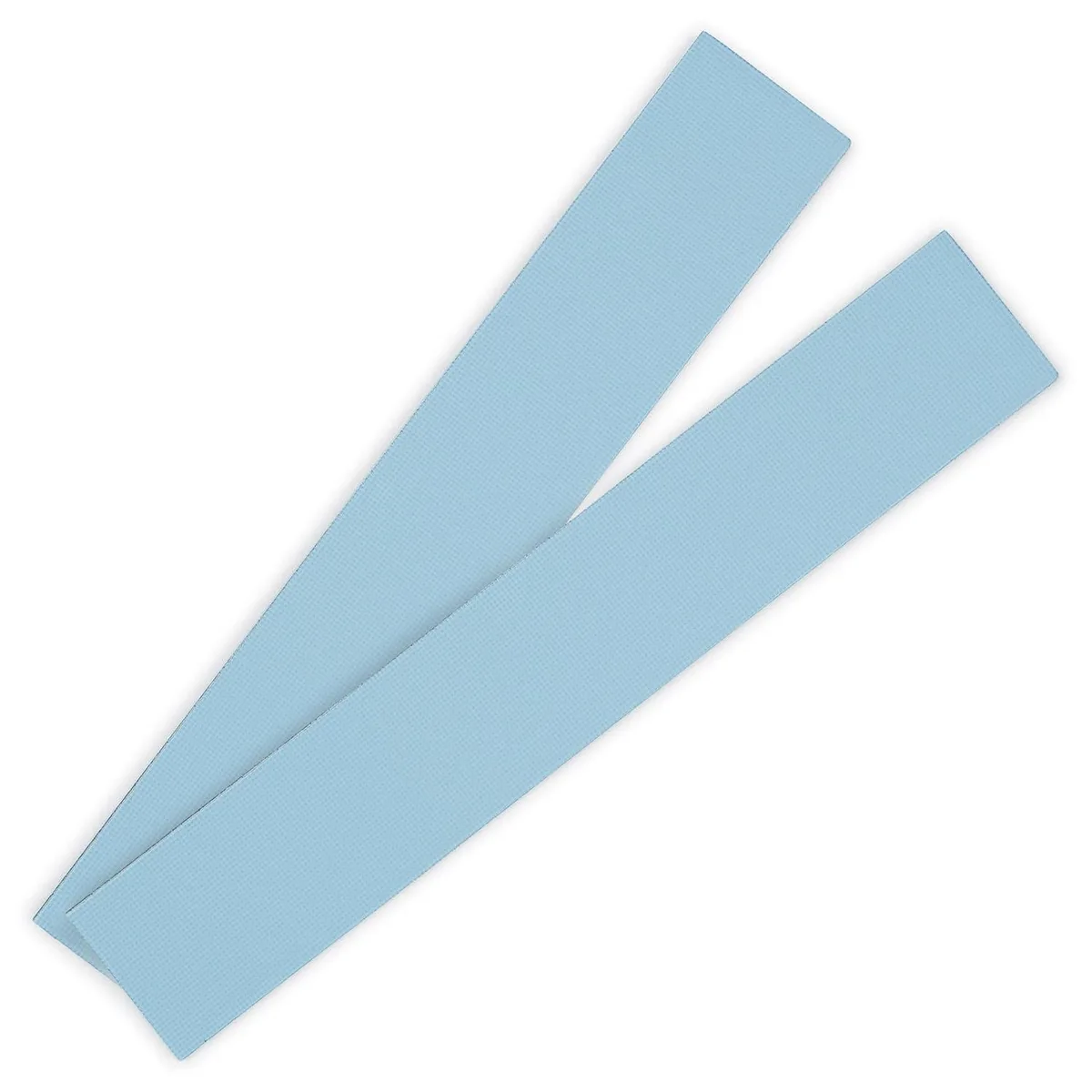

Two grey rectangular thermal pads, 120 by 20 by 1.0 mm

Thermal Grizzly

Thermal Grizzly TG-MP-P-120-20-10-2 Minus Pad Pro 120x20x1.0mm thermal pad

SKU CH-T8Z7-F77E3

Electrically non-conductive thermal pad cools SSDs, GPUs and other components with high compressibility for optimal contact

  • FeaturesThermal Grizzly Minus Pad Basic thermal pads are part of the
  • Electrically non-conductive pad prevents shorts on sensitive electronics
  • 120 x 20 mm size fits SSDs and GPU coolers
  • 0 mm thickness provides effective gap filling for improved contact
  • Pro series delivers outstanding thermal conductivity under heavy loads
  • Two pads included for multiple component installations

120x20mm Pro thermal pad 2-pack

This two-pack supplies a pair of 120 by 20 millimetre thermal pads cut to 1.0 millimetre thickness. They are built for SSDs, GPU coolers, graphics card water blocks and voltage-regulator or memory modules that need a thin, uniform interface. Electrically non-conductive material prevents shorts on exposed circuitry.

Pro-grade conductivity and compressibility

The Pro series targets outstanding thermal conductivity with exceptional compressibility so the pad conforms tightly to uneven surfaces under normal mounting pressure. Grey silicone-based compound fills microscopic gaps without pumping out over time. No electrical conduction means safe direct contact with PCB components.

Fits tight SSD and VRM gaps

Each 120 by 20 millimetre strip slides into narrow M.2 slots, between memory chips or along GPU voltage-regulator rows where thicker pads would not seat. The 1.0 millimetre profile clears low-profile heatsinks and backplates while still delivering Pro-level heat transfer. Two pieces cover multiple zones or spare replacements.

Ciri-ciri utama

  • Electrically non-conductive pad prevents shorts on sensitive electronics
  • 120 x 20 mm size fits SSDs and GPU coolers
  • 0 mm thickness provides effective gap filling for improved contact
  • Pro series delivers outstanding thermal conductivity under heavy loads
  • Two pads included for multiple component installations

Spesifikasi

BrandThermal Grizzly
ModelTG-MP-P-120-20-10-2
Part NumberTG-MP-P-120-20-10-2
FeaturesThermal Grizzly Minus Pad Basic thermal pads are part of the Basic, Advance, and Pro series. The Basic pads are easy to use, provide good thermal conductivity, slightly lower compressibility, and offer an excellent price-performance Ratio.

Soalan tentang produk ini

How do I install the 120 x 20 mm Minus Pad Pro on an SSD, and what step is often missed?

Clean both surfaces, peel the protective film, place the 1.0 mm grey pad flat on the component, then press the heatsink down evenly so the pad compresses without trapping air bubbles.

When will the Minus Pad Pro need replacement in a GPU cooler?

The electrically non-conductive pad has no fixed service interval; replace it only when you disassemble the cooler or if temperatures rise noticeably after years of continuous operation.

What is the first thermal limit reached by the 1.0 mm pad during sustained heavy loads?

The pad transfers heat until the attached heatsink or airflow becomes the bottleneck; its own conductivity stays constant while the cooling assembly saturates.
