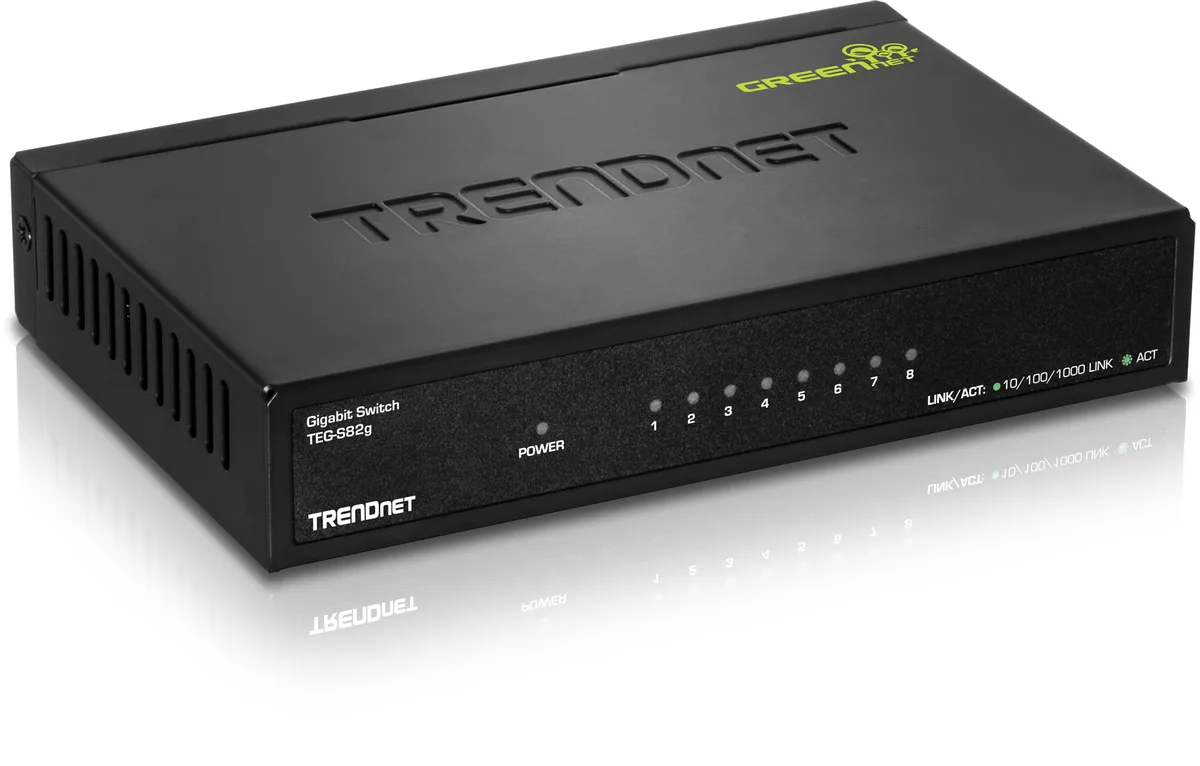

Black metal 8-port Gigabit switch with external power adapter

TRENDnet

TRENDnet TEG-S82g 8-Port Gigabit network switch

SKU CH-TTQV-NE921 MPN TEG-S82g

Eight-port Gigabit switch with 16 Gbps capacity and GREENnet energy savings in a wall-mountable metal case

  • FormatWall Mountable
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az
  • Network Management TypeUnmanaged
  • Uplink PortsNone

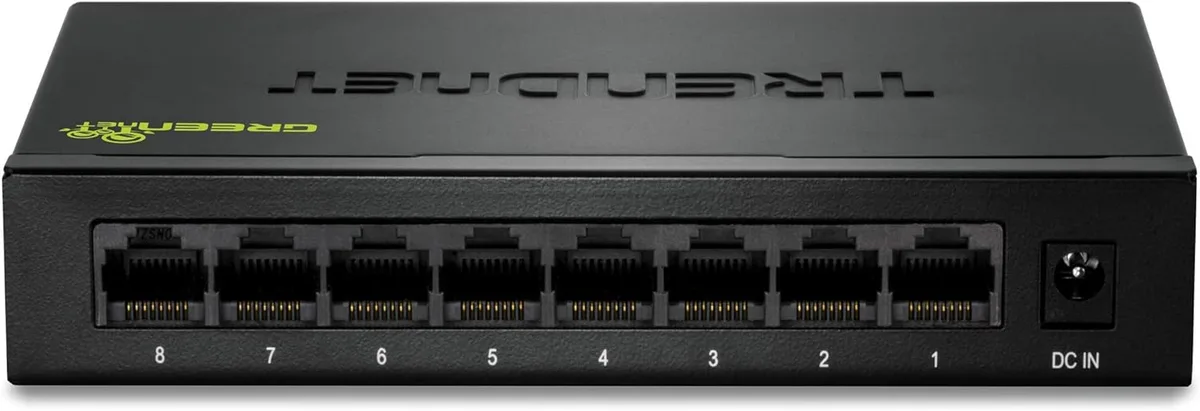

  • Primary Ports8 x RJ45
  • Primary Port Speed10/20/100/200Mbps + 2000Mbps

Model TEG-S82g

  • TEG-S51SFP
  • TEG-S17D
  • TEG-S17
  • TEG-S25D
  • TEG-S25
  • TEG-S50g
  • TEG-S80g
  • TEG-S82g
  • TEG-S24Dg

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • 8 Gigabit ports deliver full-speed wired connections
  • 16 Gbps switching capacity keeps traffic flowing without bottlenecks
  • GREENnet technology cuts power use by up to 70%
  • Wall-mountable metal housing fits tight spaces and runs silent
  • Plug-and-play setup works instantly with no configuration needed

8-Port Gigabit GREENnet Switch

The TRENDnet TEG-S82g is an unmanaged metal switch with eight RJ45 ports that operate at 10, 100 and 1000 Mbps. It delivers 16 Gbps switching capacity and supports jumbo frames up to 9216 bytes. GREENnet technology adjusts power per port link status to reduce consumption by up to 70 percent. The fanless design suits quiet office or home networks.

Pre-installation checks

Verify that each device you intend to connect has an RJ45 Ethernet port and can negotiate 10/100/1000 Mbps speeds. Confirm a nearby mains socket for the external 5 V DC, 1 A power adapter that accepts 100 to 240 V AC input. Ensure the operating environment stays within 0 to 40 degrees Celsius and below 90 percent non-condensing humidity. No software configuration is required for plug-and-play operation.

Metal housing and mounting

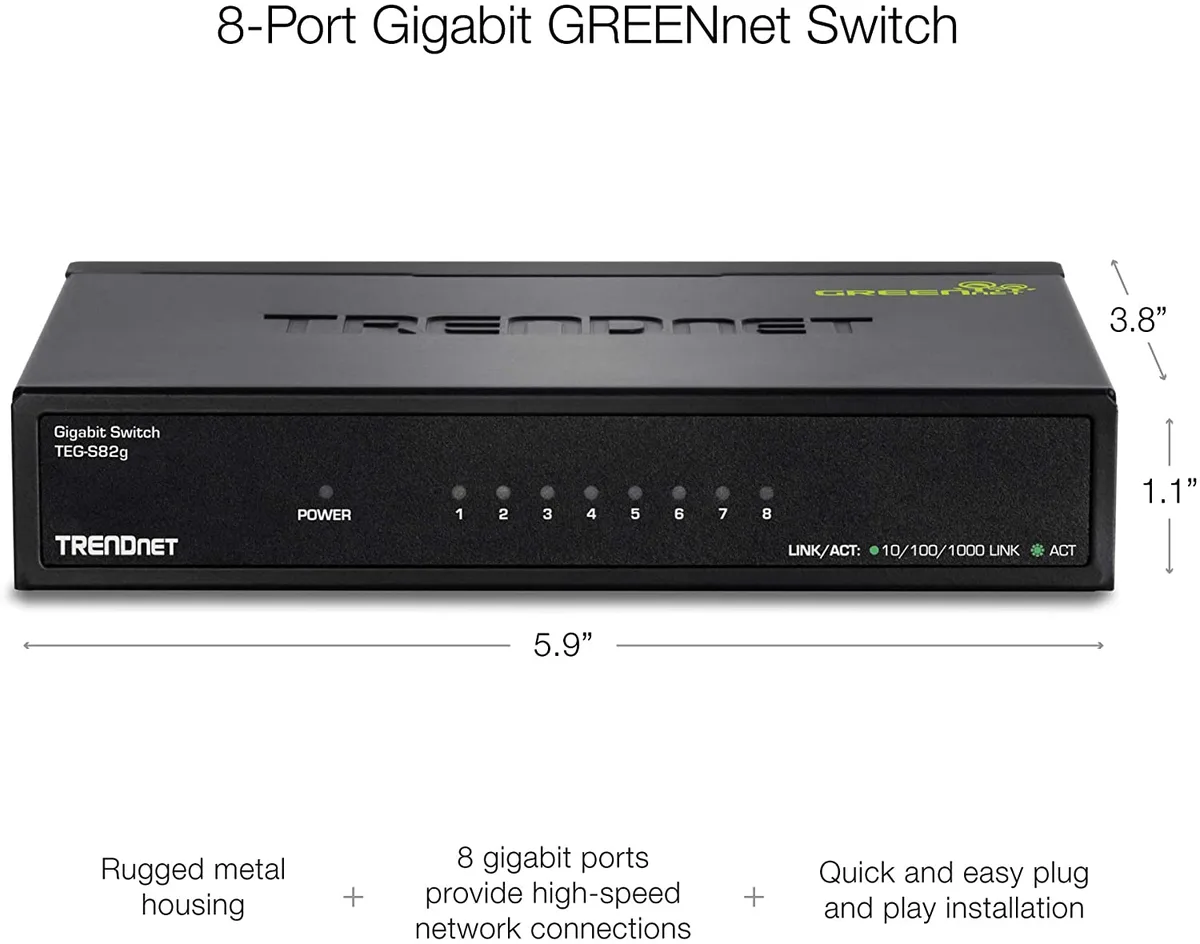

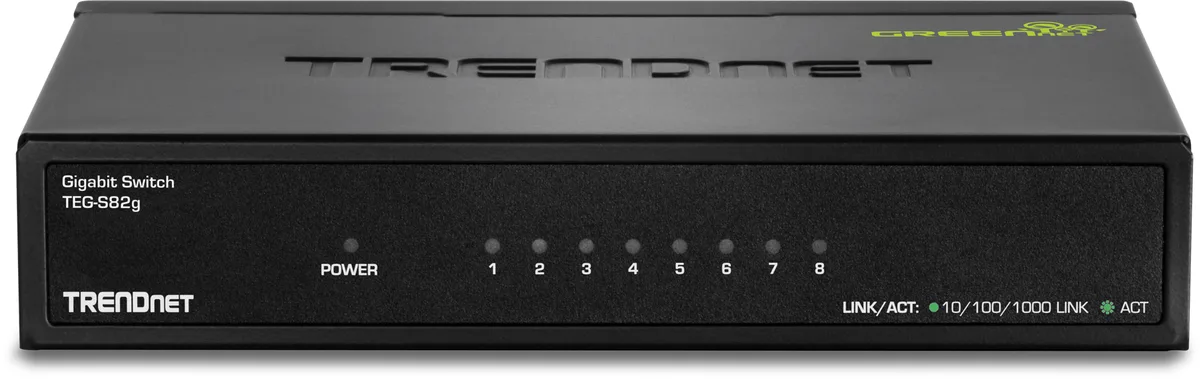

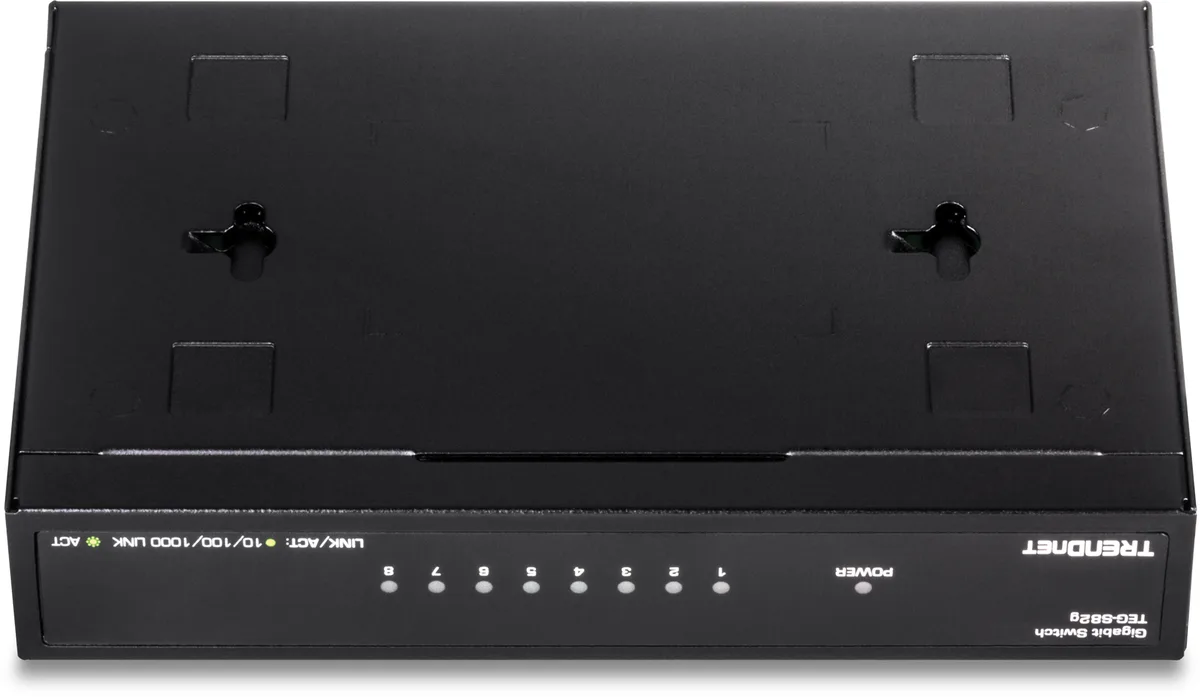

The compact steel enclosure measures 1.10 by 5.90 by 3.80 inches and weighs 12.9 ounces. Wall-mount slots allow vertical placement on a solid surface to save desk space. Front-panel LEDs show power, link and activity status for each port at a glance. The fanless metal chassis acts as a heatsink for silent, maintenance-free cooling.

Ciri-ciri utama

  • 8 Gigabit ports deliver full-speed wired connections
  • 16 Gbps switching capacity keeps traffic flowing without bottlenecks
  • GREENnet technology cuts power use by up to 70%
  • Wall-mountable metal housing fits tight spaces and runs silent
  • Plug-and-play setup works instantly with no configuration needed

Spesifikasi

BrandTRENDnet
ModelTEG-S82G (Version v3.1R)
FormatWall Mountable
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
Network Management TypeUnmanaged
Uplink PortsNone
Primary Ports8 x RJ45
Primary Port Speed10/20/100/200Mbps + 2000Mbps
MAC Address Table4K
Switching MethodStore and Forward
Jumbo Frames9216 bytes
ProtocolsCSMA/CD
TopologyStar
LEDsLED indicators
PowerInput: 100 - 240V AC, 50/60Hz, 0.15A
Output: 5V DC, 1A external power adapter
Max. consumption: 4W
Dimensions1.10" x 5.90" x 3.80"
Weight12.9 oz.
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -10 ~ 70 degree Celsius (14 ~ 158 degree Fahrenheit)
Humidity90% Maximum, Non-condensing
FeaturesPlug and play installation
8 x Gigabit ports
16Gbps switching capacity
Up to 70% energy savings with GREENnet technology
Wall mountable metal housing
Package ContentsTEG-S82g
Quick Installation Guide
Power adapter (5V DC, 1A)
Berat penghantaran0.54 kg
Dimensi bungkusan198 × 180 × 61 mm

Versi lain model ini

1 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

What comes in the box and is a power adapter included?

The package includes the 8-port Gigabit switch and an external power adapter that delivers 5V DC at 1A from a 100-240V AC supply.

Which version of the TEG-S82g should I choose for a small office?

The listed model is version v3.1R with eight RJ45 ports, 16Gbps switching capacity and GREENnet energy saving — there is no alternate capacity to select.

What does the 16Gbps switching capacity mean for daily use?

It provides full-duplex wire-speed forwarding across all eight Gigabit ports simultaneously, so large file transfers and video streams won't create bottlenecks.
