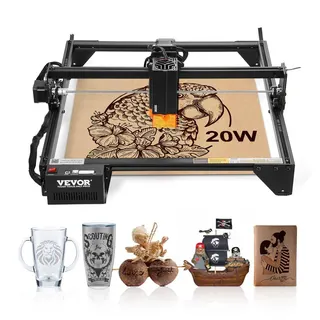

Open-frame aluminium laser engraver with blue diode module and safety glasses on work surface

VEVOR

VEVOR Laser Engraver 20W 350x400mm 10000mm/min

SKU CH-0GQZ-G05M1

A 20 W blue-light laser engraver with a 350 x 400 mm work area, 0.08 mm spot compression and 10,000 mm/min speed for wood, acrylic and certain metals

  • TypeOther Appliances
  • 20W laser power cuts 5 mm wood
  • 08×0.08 mm spot for fine detail
  • 10,000 mm/min speed finishes jobs fast

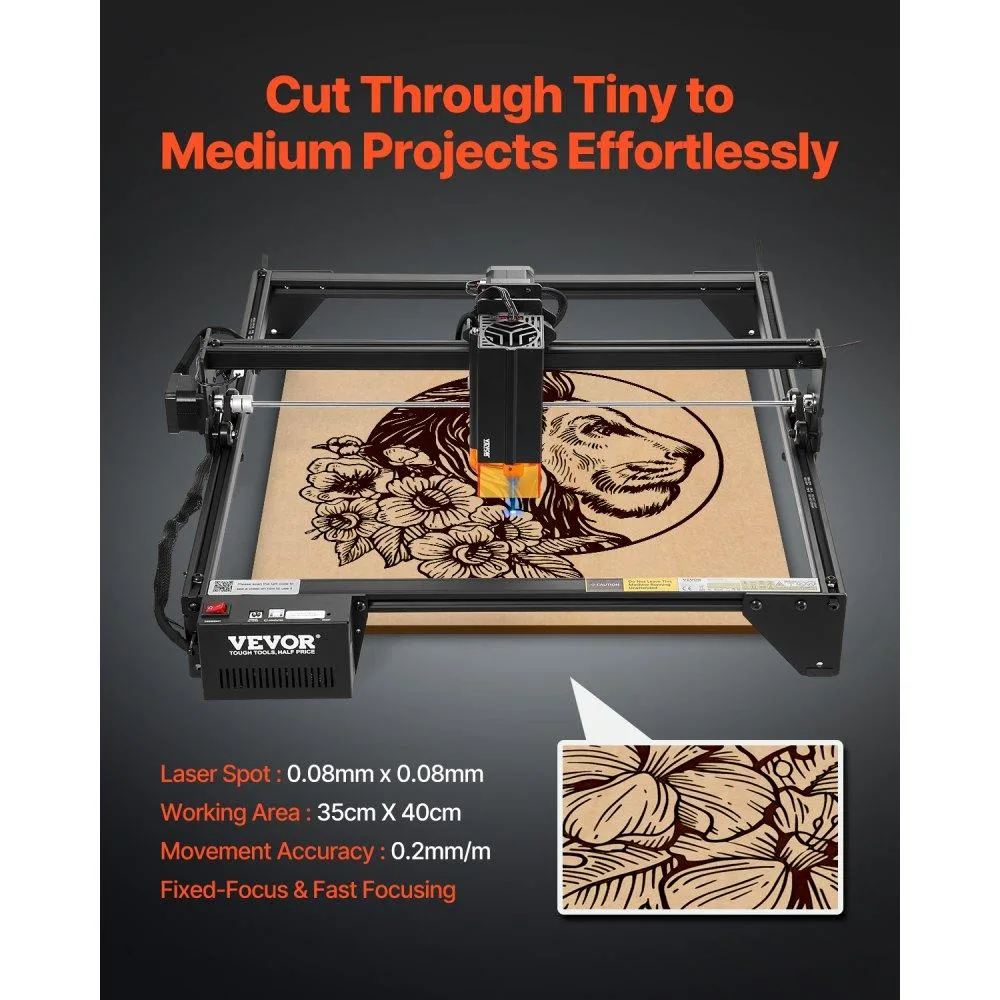

  • 350×400 mm bed fits large projects
  • Air-assist pump included for cleaner cuts

20W laser engraver for makers

This 20W blue-light laser engraver delivers 20000mW output across a 350 x 400 mm working area. It engraves and cuts over 100 material types including wood up to 5 mm thick. The compressed 0.08 x 0.08 mm spot provides concentrated energy for fine detail work. Suitable for commercial and personal DIY projects requiring a class 4 laser system.

Upgrade from lower-power diode lasers

Moving from a 10W or weaker diode engraver makes sense when you need deeper cuts in wood or faster throughput on larger batches. The 10000 mm/min movement speed reduces job time on the 38 x 40 cm bed. The jump is worth it if your current machine struggles with 5 mm wood cutting or requires multiple passes for clean edges on acrylic.

Check software and ventilation readiness

Ensure your computer runs LightBurn or LaserGRBL and has an available USB port for connection. The included air-assist pump requires a stable power outlet and space for hose routing. Verify your workspace can accommodate the aluminum alloy frame and provide adequate fume extraction for class 4 laser operation. Protective glasses are included but confirm they fit your safety requirements.

Ciri-ciri utama

  • 20W laser power cuts 5 mm wood
  • 08×0.08 mm spot for fine detail
  • 10,000 mm/min speed finishes jobs fast
  • 350×400 mm bed fits large projects
  • Air-assist pump included for cleaner cuts

Spesifikasi

TypeOther Appliances

Soalan tentang produk ini

What are the exact outer dimensions and working-area size I need to allow for on the bench?

The machine needs a footprint that accommodates a 350 x 400 mm engraving area; the supplier lists an effective working area of 38 x 40 cm, so plan for at least that much clear space plus room for cable routing and the air-assist pump.

Which connection and software steps are required for the first job, and where do beginners usually stall?

Connect the USB cable to a computer, install either LightBurn or LaserGRBL, home the limit structure, use the supplied focusing block to set the 0.08 x 0.08 mm spot height, then run the positioning auxiliary program before starting a job — skipping the focus step is the most common error.

When will the laser module and the air-assist pump need replacement or servicing?

The laser head is rated for over 10,000 hours at 80 % power; the included air-assist pump should be checked for filter blockage and diaphragm wear after extended cutting sessions, and the protective lens cleaned with the supplied brush and dust-free cloth whenever residue builds up.
