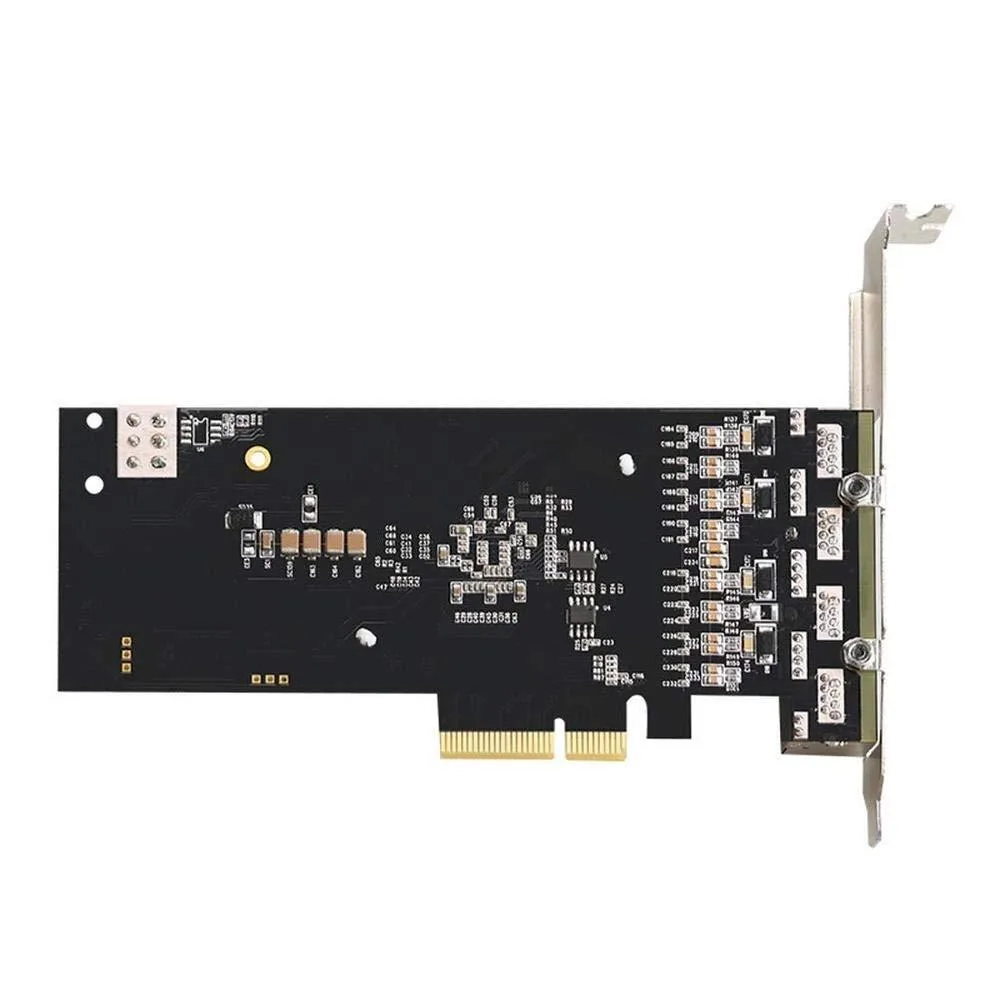

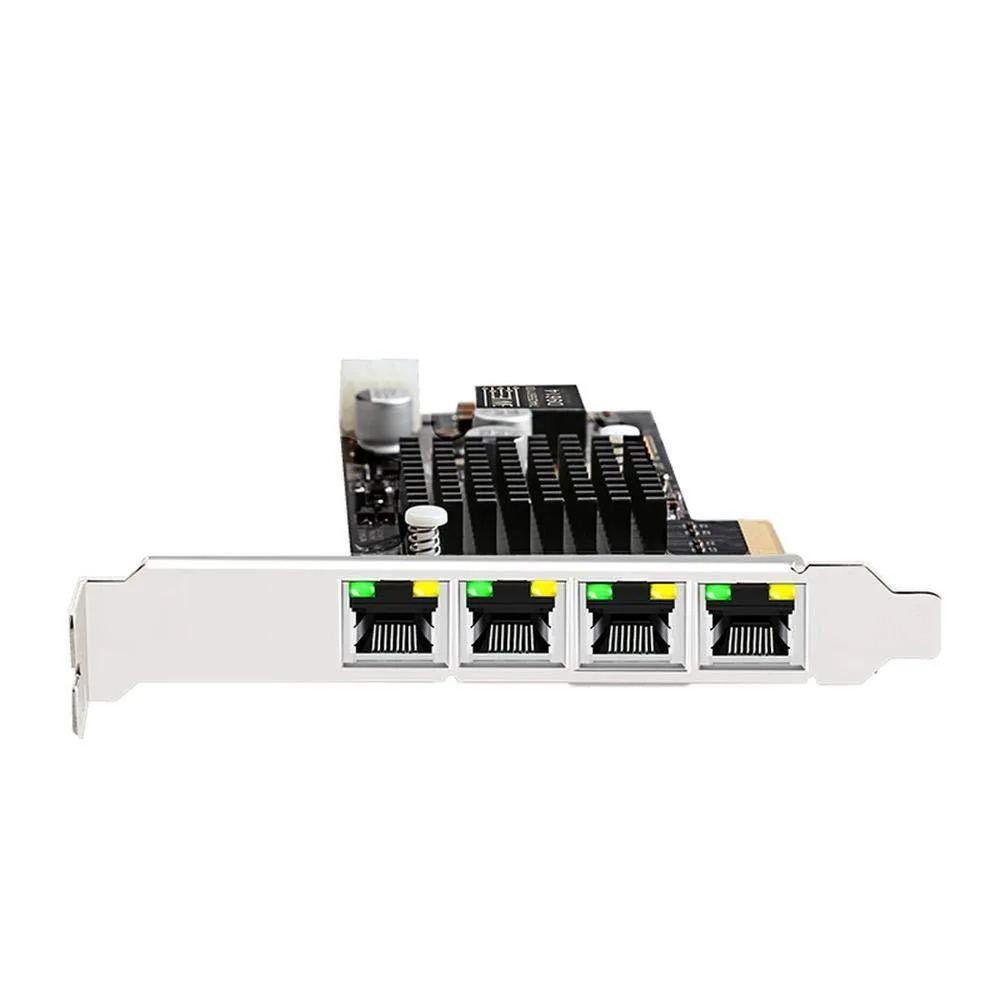

Black PCIe x4 card with four RJ45 ports and metal brackets

Vszerda

Vszerda N35734 4-port POE Gigabit network card

SKU CH-MRVP-GZ4Y8

Four-port Gigabit PCIe x4 card with 30 W PoE per RJ45 socket for servers and IPCs

  • FeaturesDesktop
  • Intel-grade controller delivers reliable Gigabit throughput
  • PCIe x4 Gen 2.1 interface provides high bandwidth
  • Four RJ45 ports each supply up to 30 W PoE
  • Energy Efficient Ethernet cuts idle power draw
  • PXE boot enables network-based OS deployment

Quad-port PoE NIC for IPC and servers

The Vszerda N35734 adds four Gigabit RJ45 ports with Power over Ethernet through a PCIe x4 2.1 connection. Each port delivers up to 30 W to attached devices such as cameras or access points. An Intel-grade MAC controller handles 10/100/1000 Mbps traffic with Energy Efficient Ethernet support. The card targets integrators building IPC, server or storage platforms that need powered network drops.

Suits builds needing powered ports on Linux

Installers running Microsoft or Linux operating systems on industrial PCs or rack servers can deploy this adapter without extra power injectors. Buyers who require more than four PoE connections or ports faster than 1 Gbps should look at alternative solutions. The half-height form factor limits use to chassis accepting low-profile brackets.

Intel MAC controller with 30 W per port

The onboard Intel-grade gigabit MAC controller is the specification that determines whether this card matches the workload. It provides four independent 1000 Mbps links compliant with IEEE 802.3 PoE up to 30 W each over 100 m cable runs. If the application demands a different controller or higher per-port power budget, this model will not fit.

Ciri-ciri utama

  • Intel-grade controller delivers reliable Gigabit throughput
  • PCIe x4 Gen 2.1 interface provides high bandwidth
  • Four RJ45 ports each supply up to 30 W PoE
  • Energy Efficient Ethernet cuts idle power draw
  • PXE boot enables network-based OS deployment

Spesifikasi

BrandVszerda
ModelN35734
Part NumberN35734
FeaturesDesktop

Soalan tentang produk ini

How do I confirm the Intel 350 controller is delivering 1000 Mbps bandwidth on all four ports after installation?

Check the link status LEDs on each RJ45 port and verify 1 Gbps duplex in the OS network adapter settings for all four interfaces.

What comes in the box and do I need to buy any PoE injectors or cables separately?

The package contains the 4-port POE Gigabit LAN card only. Cat5e or better Ethernet cables must be purchased separately; no external PoE injectors are required because the card supplies up to 30 W per port.

Which version should I choose if my server has a PCIe x4 slot and I need IEEE 802.3at PoE on every port?

This single model N35734 provides a PCIe 2.1 x4 interface and delivers IEEE 802.3at 30 W PoE on each of its four RJ45 ports, matching those requirements.
