Green circuit board with RJ45 port and M.2 B+M key edge connector

weastlinks

weastlinks 10Gb M.2 B+M Key to RJ45 Network Card Marvell AQC107

SKU CH-HE7Q-WA4KC

Adds a single RJ45 port running at 10 Gbps through an M.2 B+M key slot using a Marvell AQC107 controller

  • Speed10Gbps
  • Connectors1 x RJ45 Network
  • InterfaceMini PCI Express
  • Wake On LANYes
  • Class10G,Single RJ45
  • 10 Gbps throughput for demanding workloads
  • Marvell AQC107 controller drives multi-speed operation
  • B+M key M.2 form factor fits compact systems
  • Jumbo frames up to 16 KB reduce CPU overhead
  • Wake-on-LAN enables remote power management

10Gb M.2 B+M Key Network Card

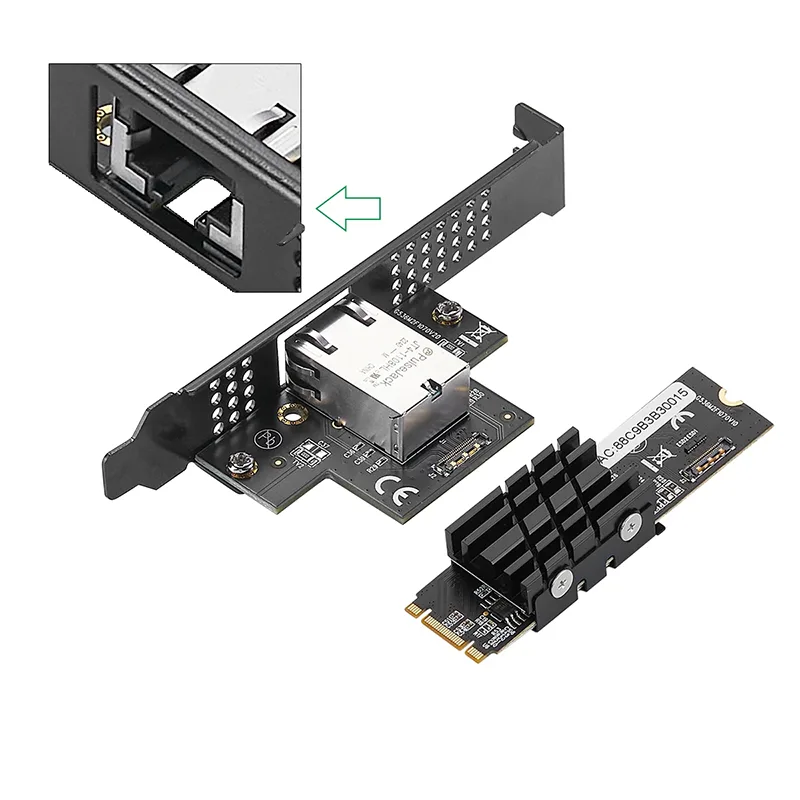

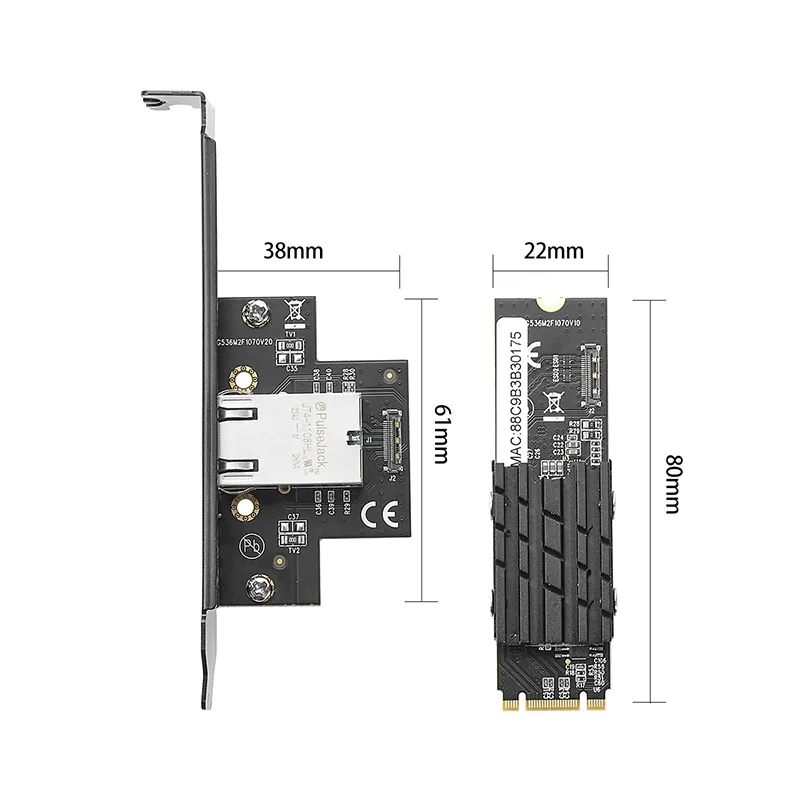

This network interface card adds a single 10Gbps RJ45 port through an M.2 B+M key slot. It uses the Marvell AQC107 controller and supports link speeds of 10G, 2.5G, 1000M and 100M. The adapter includes a shielded high-speed cable connecting the compact daughter board to the bracket. Wake-on-LAN and jumbo frames up to 16 KB are supported.

Suitable for desktop upgrades

Builders adding 10Gb Ethernet to a motherboard or riser with an M.2 B+M key slot will find this card fits the mechanical and electrical interface. Systems that lack an M.2 slot with PCIe x4 Gen3 or Gen2 connectivity cannot use the adapter at its rated performance. Buyers who need fibre connectivity or multiple ports should look at a different class of adapter.

Marvell AQC107 controller with PCIe x4 Gen3

The single specification that determines compatibility is the host slot: it must provide an M.2 B+M key connector wired for PCI Express x4 at Gen3 or Gen2 speeds. Without that electrical link the card will not negotiate 10Gbps operation. The controller handles all listed Ethernet rates and the 16 KB jumbo frame capability.

Ciri-ciri utama

  • 10 Gbps throughput for demanding workloads
  • Marvell AQC107 controller drives multi-speed operation
  • B+M key M.2 form factor fits compact systems
  • Jumbo frames up to 16 KB reduce CPU overhead
  • Wake-on-LAN enables remote power management

Spesifikasi

Speed10Gbps
Connectors1 x RJ45 Network
InterfaceMini PCI Express
Wake On LANYes
Class10G,Single RJ45

Soalan tentang produk ini

How can I confirm the Marvell AQC107 card is running at 10Gbps after installation?

Check the link speed in your OS network settings or switch management interface; it should report 10 Gbps when connected to a 10G-capable port with a Cat6a or better cable.

What comes in the box and what must I purchase separately?

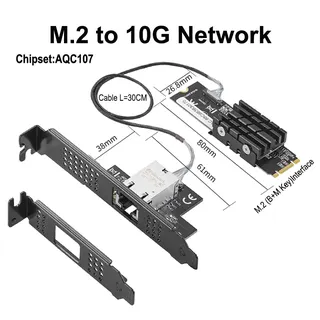

The package includes the M.2 B+M key daughter board, a high-speed shielding cable, and the RJ45 bracket; you must supply an M.2 slot with x4 PCIe Gen3 or Gen2 and a Cat6a or higher Ethernet cable.

Which speed version should I choose for a 2.5Gbps home switch?

The adapter auto-negotiates down to 2.5G, 1G, or 100M, so the single 10G model covers all those speeds without needing a different SKU.
