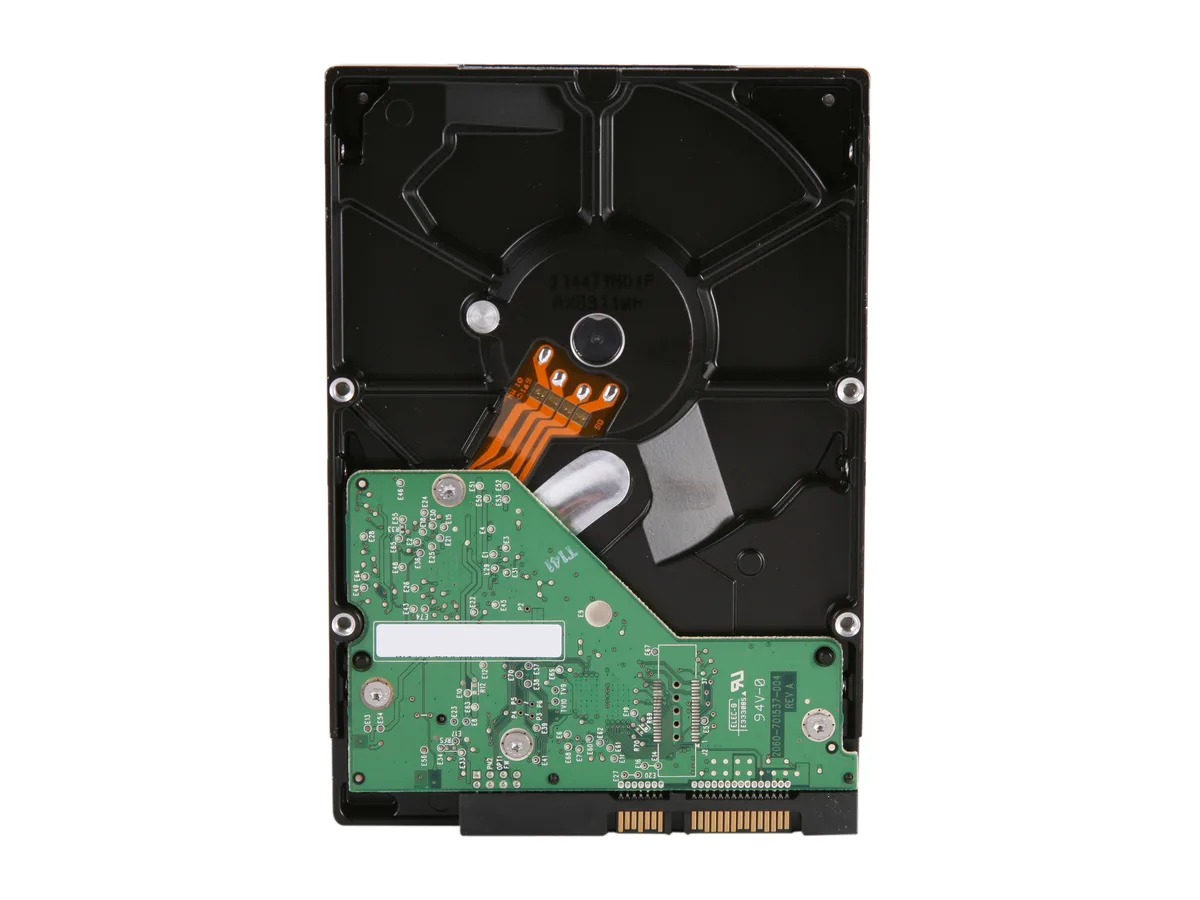

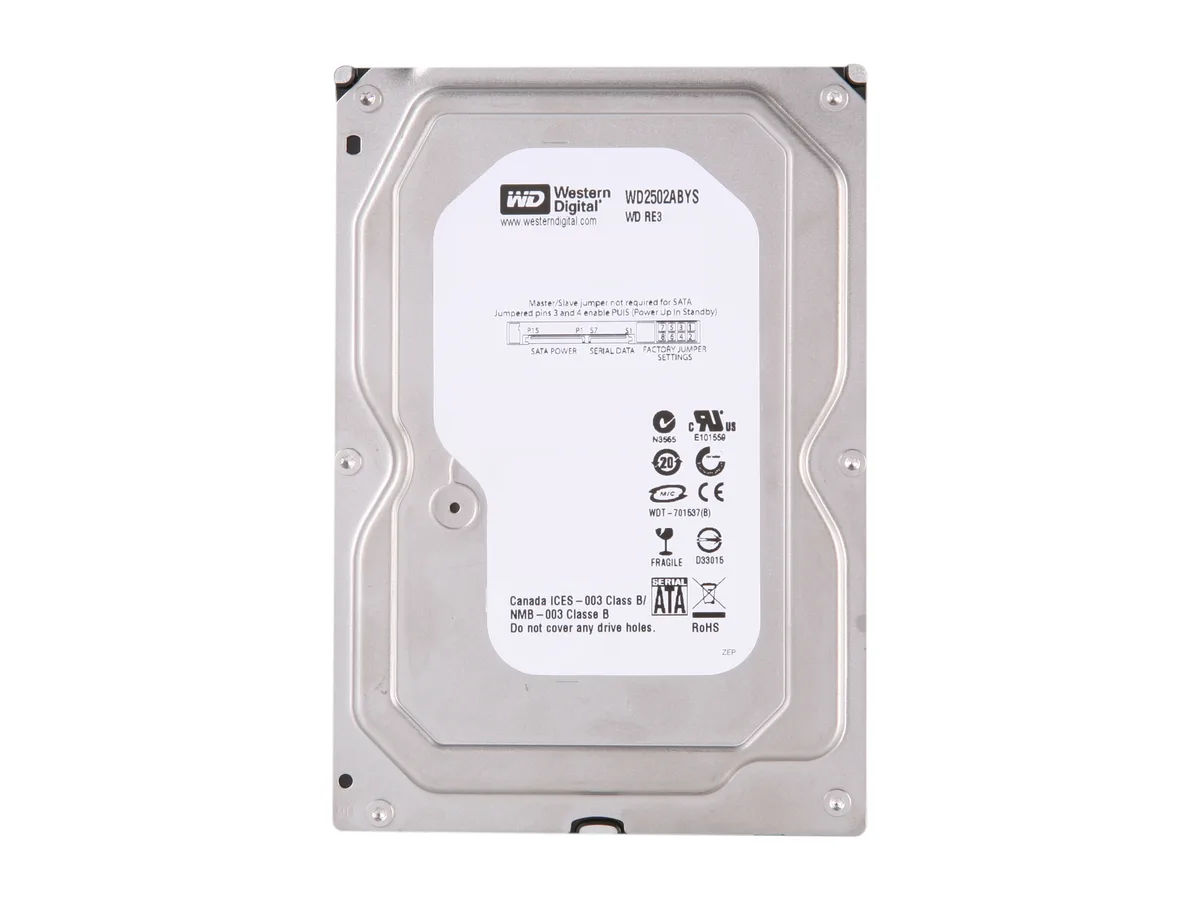

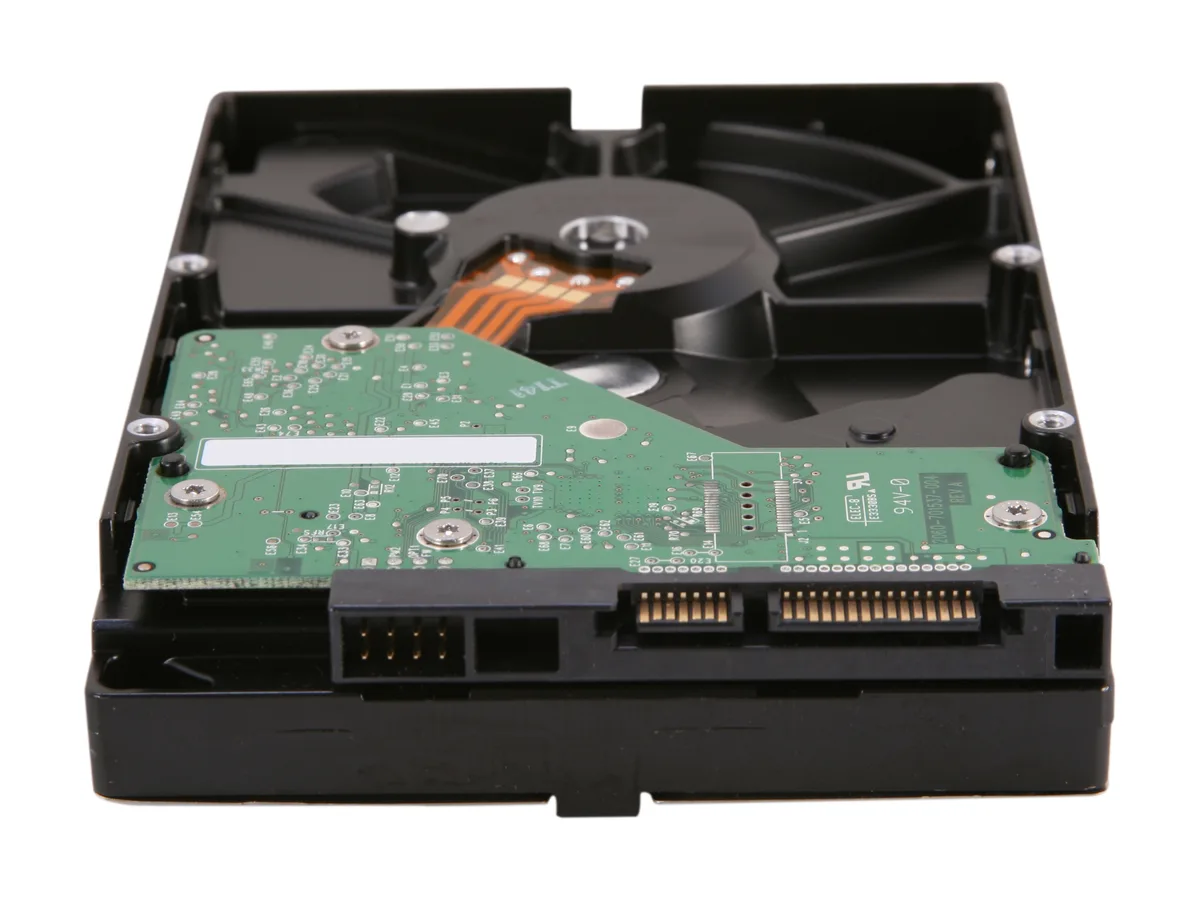

Silver 3.5 inch bare hard drive, rectangular metal casing, circuit board visible underneath

Western Digital

Western Digital WD2502ABYS 250GB 7200 RPM 16MB Cache SATA 3.0Gb/s 3.5" Internal Hard Drive

SKU CH-C5NV-SAVF4 MPN WD2502ABYS

A refurbished 250 GB enterprise-class 3.5-inch drive spinning at 7200 RPM with 16 MB cache and a SATA 3.0 Gb/s interface

  • PackagingBare Drive
  • InterfaceSATA 3.0Gb/s
  • Capacity250GB
  • RPM7200 RPM
  • Cache16MB
  • Average Seek Time8.9ms
  • Enterprise-grade reliability with dynamic fly-height adjustment
  • 250GB capacity at 7200 RPM for responsive desktop storage
  • 16MB cache and 3.0Gb/s SATA interface sustain steady throughput
  • 9ms seek and 4.2ms latency reduce access delays
  • 0-inch low-profile 3.5" form factor fits standard bays

Western Digital RE3 250GB SATA Drive

This Western Digital RE3 drive is a 3.5 inch internal hard disk with a 250GB capacity. It spins at 7200 RPM and provides a 16MB cache buffer. The SATA 3.0Gb/s interface connects to desktop systems and servers.

Suits enterprise storage arrays.

The RE3 series targets enterprise environments needing continuous operation and RAID compatibility. Its 3.5 inch form factor requires a standard drive bay and desktop power. Buyers needing laptop drives or external portable storage should look elsewhere.

SATA 3.0Gb/s interface determines compatibility

The drive uses a SATA 3.0Gb/s interface with a 7-pin data connector. This specification decides whether the drive fits the host controller or backplane. Verify the system supports this interface generation before purchase.

Ciri-ciri utama

  • Enterprise-grade reliability with dynamic fly-height adjustment
  • 250GB capacity at 7200 RPM for responsive desktop storage
  • 16MB cache and 3.0Gb/s SATA interface sustain steady throughput
  • 9ms seek and 4.2ms latency reduce access delays
  • 0-inch low-profile 3.5" form factor fits standard bays

Spesifikasi

BrandWD
SeriesRE3
ModelWD2502ABYS
PackagingBare Drive
InterfaceSATA 3.0Gb/s
Capacity250GB
RPM7200 RPM
Cache16MB
Average Seek Time8.9ms
Average Latency4.2ms
FeaturesThird generation dynamic fly height - Each read-write head's fly height is adjusted in real time for optimum reliability.
Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Perpendicular Magnetic Recording (PMR) - WD RE3 drives utilize PMR technology to achieve even greater areal density.
Form Factor3.5"
Height (maximum)25.4mm
Width (maximum)147.0mm
Length (maximum)101.6mm
Berat penghantaran0.44 kg
Dimensi bungkusan196 × 135 × 28 mm

Soalan tentang produk ini

Will the 1.0 inch height and 25.4mm maximum height fit my 3.5 inch drive bay?

Yes, the 1.0 inch low profile design matches the 25.4mm maximum height specification, fitting standard 3.5 inch internal drive bays.

How do I connect the SATA 3.0Gb/s interface correctly, and what is the common mistake?

Connect the 7-pin SATA data cable and 15-pin SATA power cable firmly; the common mistake is leaving the data cable loose, causing detection failures.

When should I expect to replace the 250GB drive given its 7200 RPM speed and enterprise RE3 design?

Enterprise RE3 drives are built for continuous operation; monitor SMART attributes for reallocated sectors or seek errors as replacement indicators.
