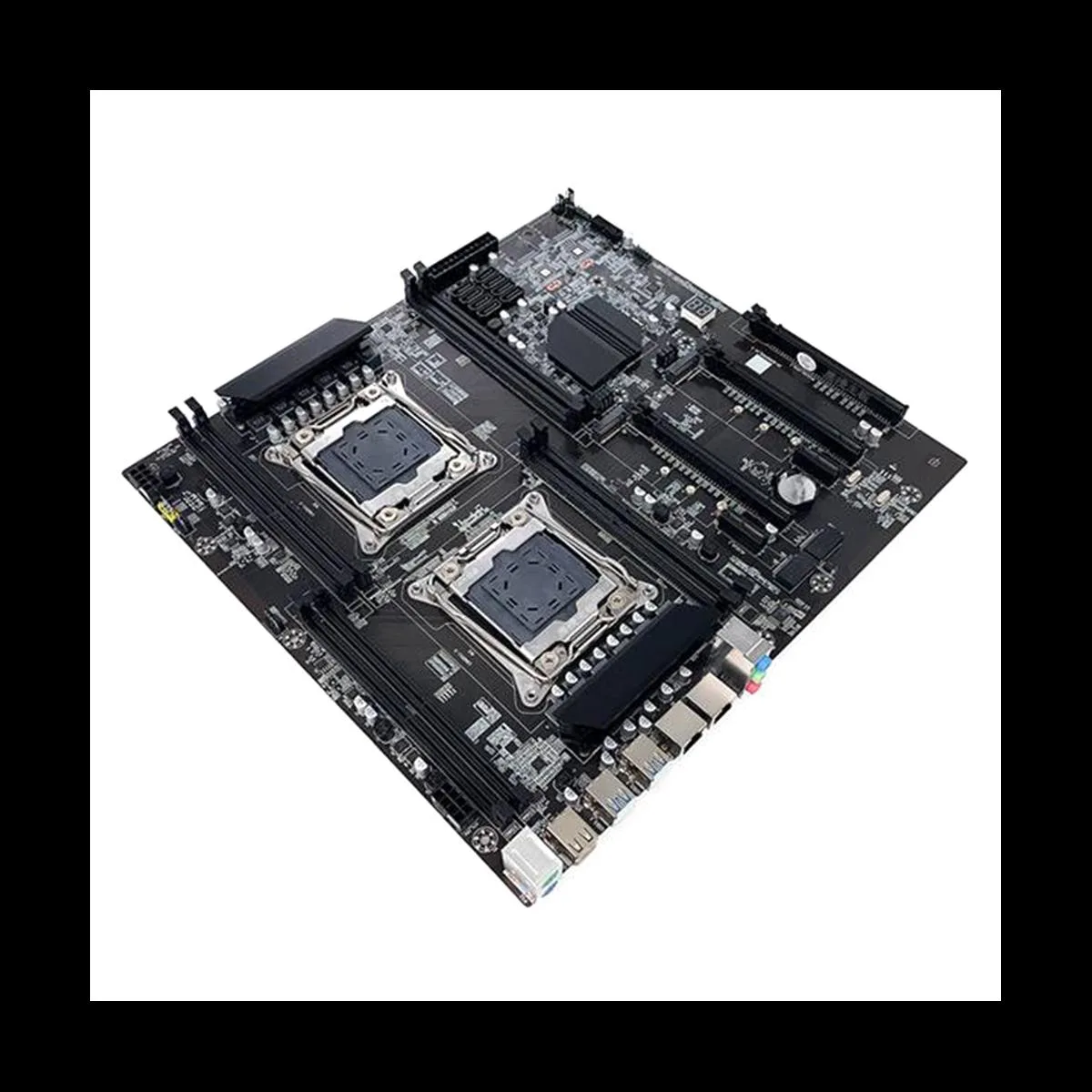

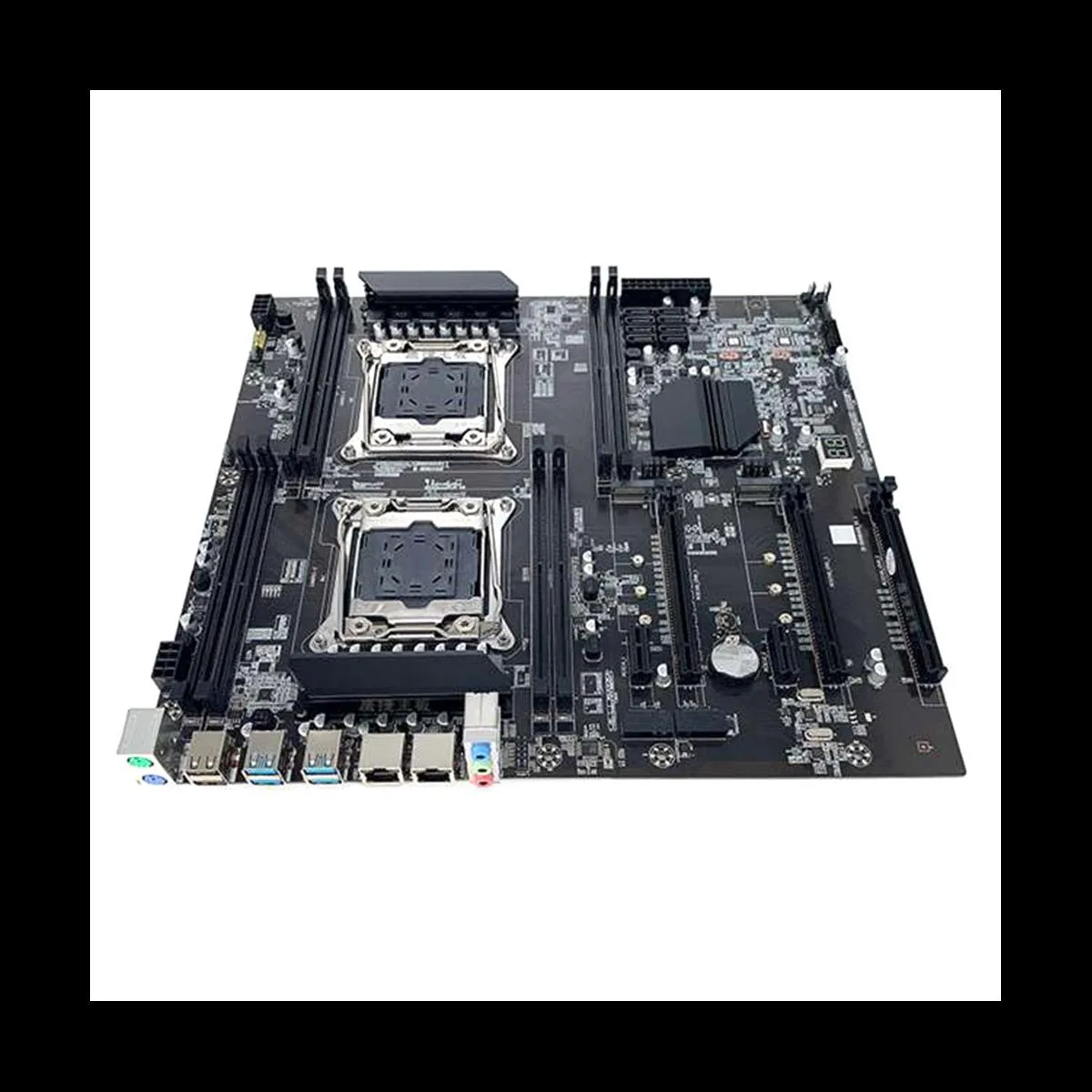

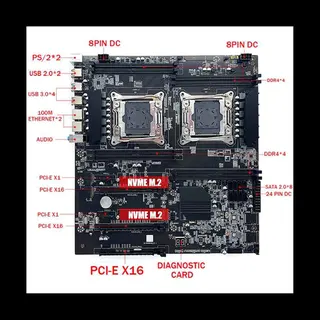

Black E-ATX server motherboard with two CPU sockets, eight RAM slots, dual M.2 and eight SATA ports

YINGHUA

YINGHUA X99 Dual-Socket Server Motherboard LGA2011-3 with 2x4GB DDR4 2666 RAM

SKU CH-DBH9-2H24D

Dual-socket X99 board with eight DDR4 slots, eight SATA 2.0 ports, two M.2 NVMe interfaces and 2×4 GB 2666 MHz RAM included

  • CPU TypeIntel Atom
  • Dual CPU support scales compute capacity with two LGA2011-3 sockets
  • 256 GB max memory across eight DDR4 slots at 2800 MHz
  • Dual M.2 NVME plus eight SATA 2.0 ports for flexible storage
  • 12-phase power on 8-layer PCB delivers stable dual-socket operation
  • Includes two 4 GB DDR4 2666 modules and thermal grease ready to build

Dual LGA2011-3 Server Platform

The YINGHUA X99 motherboard supports two Intel CPUs in LGA2011-3 sockets and ships with two 4 GB DDR4 2666 modules and thermal grease. It targets builders assembling a dual-processor server or workstation on an E-ATX board with an 8-layer PCB and 12-phase power delivery.

Memory And Storage Limits

Four-channel DDR4 runs at 2133, 2400 or 2800 MHz up to a 256 GB ceiling using 32 GB modules. Storage connects through eight SATA 2.0 ports capped at 3 Gbps and two M.2 NVME slots; onboard networking is limited to two 100 Mbps ports.

Upgrade Path And Fit

The board replaces single-socket X99 or older dual-socket platforms when extra cores and memory channels are needed for virtualization or rendering. It is not suited for builds requiring 10 Gbps networking, SATA 3.0 speeds or more than three full-length PCIe x16 cards.

Ciri-ciri utama

  • Dual CPU support scales compute capacity with two LGA2011-3 sockets
  • 256 GB max memory across eight DDR4 slots at 2800 MHz
  • Dual M.2 NVME plus eight SATA 2.0 ports for flexible storage
  • 12-phase power on 8-layer PCB delivers stable dual-socket operation
  • Includes two 4 GB DDR4 2666 modules and thermal grease ready to build

Spesifikasi

CPU TypeIntel Atom

Soalan tentang produk ini

Should I choose the board with the included 2×4 GB DDR4-2666 kit or add my own memory?

The bundle supplies 8 GB total at 2666 MHz; the board runs four-channel DDR4 at 2133/2400/2800 MHz and supports up to 256 GB using eight slots.

What does the dual LGA2011-3 design mean for actual CPU installation?

Two physical sockets let you install one or two compatible Intel processors; the X99 chipset and 12-phase power delivery handle the combined load.

How fast are the M.2 NVMe and SATA 2.0 ports in practice?

Two M.2 slots use the NVMe protocol for high-speed SSDs, while eight SATA 2.0 ports are limited to 3 Gb/s throughput.
