Black all-metal 120 by 38 millimetre axial case fan with two-pin connector

Zyvpee

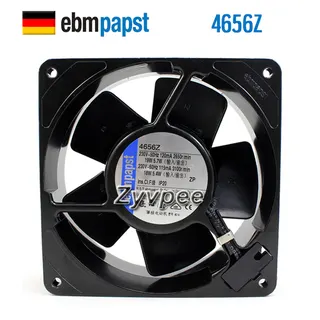

Zyvpee 4656Z 120x38mm 230V AC 2-pin axial case fan

SKU CH-E7TF-EV6RV

120 mm all-metal AC axial fan with 2-ball bearings, 230 V supply, 80 CFM airflow and 40–45 dBA noise

  • TypeCase Fan
  • CompatibilityCase
  • Bearing Type2 Ball
  • RPM2500-2999 RPM
  • Air Flow>80 CFM
  • Noise Level40 - 45 dBA
  • Reliable long-life operation from dual ball bearing design
  • High airflow above 80 CFM for effective case cooling
  • Direct 230 V AC connection with simple two-pin plug
  • Sturdy all-metal frame measuring 120 by 38 mm
  • Quiet running between 40 and 45 dBA at 2500 to 2999 RPM

230V AC axial fan for industrial cases

The Zyvpee 4656Z is a 120mm by 38mm all-metal axial fan that runs directly from 230V AC mains at 50 or 60Hz. It uses a two-pin connector and delivers airflow above 80 CFM at 2500 to 2999 RPM with a noise level between 40 and 45 dBA.

Suited for AC-powered enclosures, not DC headers

This fan fits builders who need a mains-voltage cooling device for server chassis, telecom cabinets or industrial equipment where 230V AC supply is standard. It is not for standard PC cases that provide only 12V DC fan headers, nor for noise-sensitive environments that require quieter operation.

Two-pin 230V AC power connector

The sole specification that determines fit is the two-pin 230V AC connector; the fan will only work with a matching mains-voltage header and cannot be adapted to low-voltage DC fan controllers.

Ciri-ciri utama

  • Reliable long-life operation from dual ball bearing design
  • High airflow above 80 CFM for effective case cooling
  • Direct 230 V AC connection with simple two-pin plug
  • Sturdy all-metal frame measuring 120 by 38 mm
  • Quiet running between 40 and 45 dBA at 2500 to 2999 RPM

Spesifikasi

Series4656Z
Model4656Z
TypeCase Fan
CompatibilityCase
Bearing Type2 Ball
RPM2500-2999 RPM
Air Flow>80 CFM
Noise Level40 - 45 dBA
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesAC Axial Fan
Dimensions120mm*120mm*38mm

Soalan tentang produk ini

Does the Zyvpee 4656Z ship with mounting screws or a power cable, or must they be purchased separately?

The fan is supplied as the unit only; mounting hardware and any required mains lead are not included and must be sourced separately.

The specifications list 50/60 Hz and 19/18 Hz — which version should I select for a 230 V 50 Hz supply?

The same unit operates on both 50 Hz and 60 Hz mains; at 50 Hz it draws 19 Hz and at 60 Hz it draws 18 Hz, so no separate version is needed.

What does the >80 CFM airflow rating mean for actual cooling inside a 120 mm case slot?

It delivers over 80 cubic feet per minute at 2500–2999 RPM with a noise level of 40–45 dBA, providing strong airflow through a standard 120 mm by 38 mm mounting space.
