Zyvpee
Zyvpee AFB0512MB 50x15mm 12V 0.12A 3-Wire case fan
Compact 50 by 15 millimetre case fan runs on 12 volts at 0.12 amps with a three-wire connector and ball bearing
- TypeCPU Cooler Fan
- Bearing TypeBall
- Power Connector3 Wires
- ColorBlack
- LEDNon-LED
- Dimensions50*15mm
- Compact 50×15 mm frame fits tight build spaces
- Ball-bearing design reduces wear for longer service life
- 12 V 0.12 A draw keeps power demand low
- Three-wire connector enables speed monitoring
- Non-LED black finish suits stealthy aesthetics
Compact 50×15 mm 12 V case fan

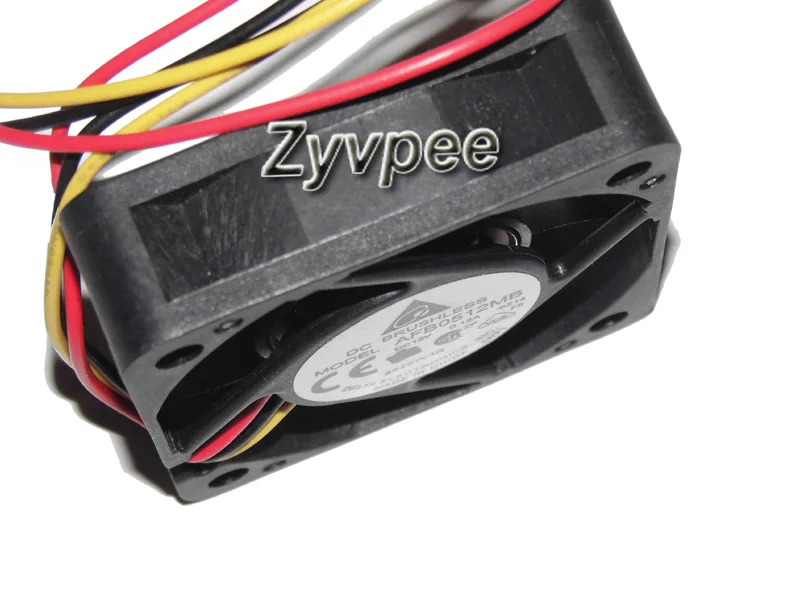

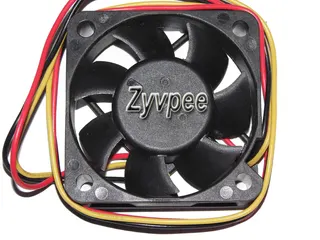

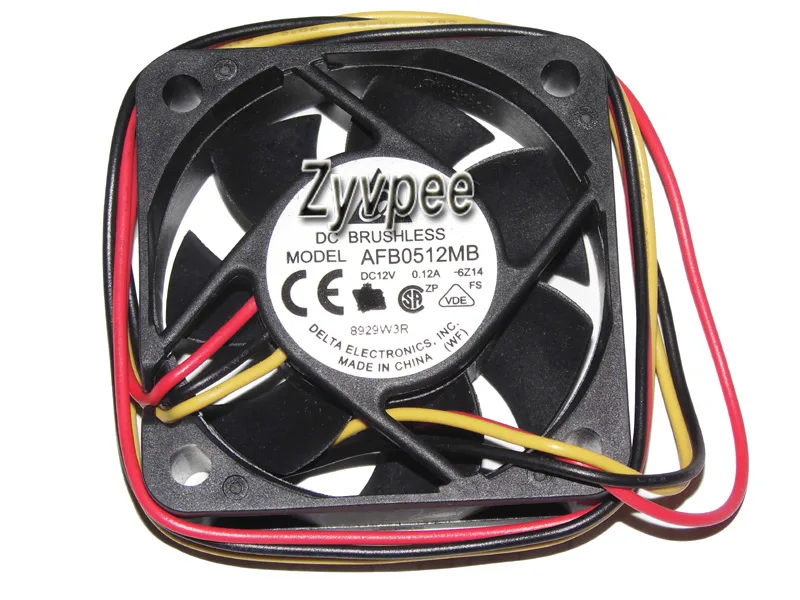

The Zyvpee AFB0512MB is a square 50 mm by 15 mm DC fan built for tight spaces inside a PC chassis. It runs on 12 V and draws 0.12 A through a standard three-wire connector. A ball bearing supports the rotor for consistent rotation. The matte black frame carries no lighting.
Three-wire 12 V power connector
The single specification that determines fit is the three-wire 12 V connector, which supplies both power and a tachometer signal to the motherboard header. Voltage is fixed at 12 V and current at 0.12 A, so the header must provide that exact rail. No PWM wire is present, therefore speed control relies on voltage adjustment alone.
Suits small-form-factor builds needing a 50 mm
Builders repairing or upgrading a 50 mm mounting pattern will find the dimensions and connector match. Users who require PWM control, larger airflow, or a different mounting hole spacing should look at other options.
Ciri-ciri utama
- Compact 50×15 mm frame fits tight build spaces
- Ball-bearing design reduces wear for longer service life
- 12 V 0.12 A draw keeps power demand low
- Three-wire connector enables speed monitoring
- Non-LED black finish suits stealthy aesthetics
Spesifikasi
| Brand | 3ccooler.com |
|---|---|
| Series | AFB0512MB |
| Model | AFB0512MB |
| Type | CPU Cooler Fan |
| Bearing Type | Ball |
| Power Connector | 3 Wires |
| Color | Black |
| LED | Non-LED |
| Dimensions | 50*15mm |
Soalan tentang produk ini
How much power does the 0.12 A draw actually put on a 12 V rail?
At 12 V the fan draws 0.12 A, so it adds a very small load to the 12 V line.
What does the three-wire connector provide compared with a two-wire version?
The three-wire connector carries power, ground and a tachometer signal so the motherboard can report fan speed.
Will the 50 mm by 15 mm frame fit a standard 50 mm mounting pattern?
Yes, the 50 mm square frame matches the common 50 mm hole spacing used on many small-form-factor boards and CPU coolers.
