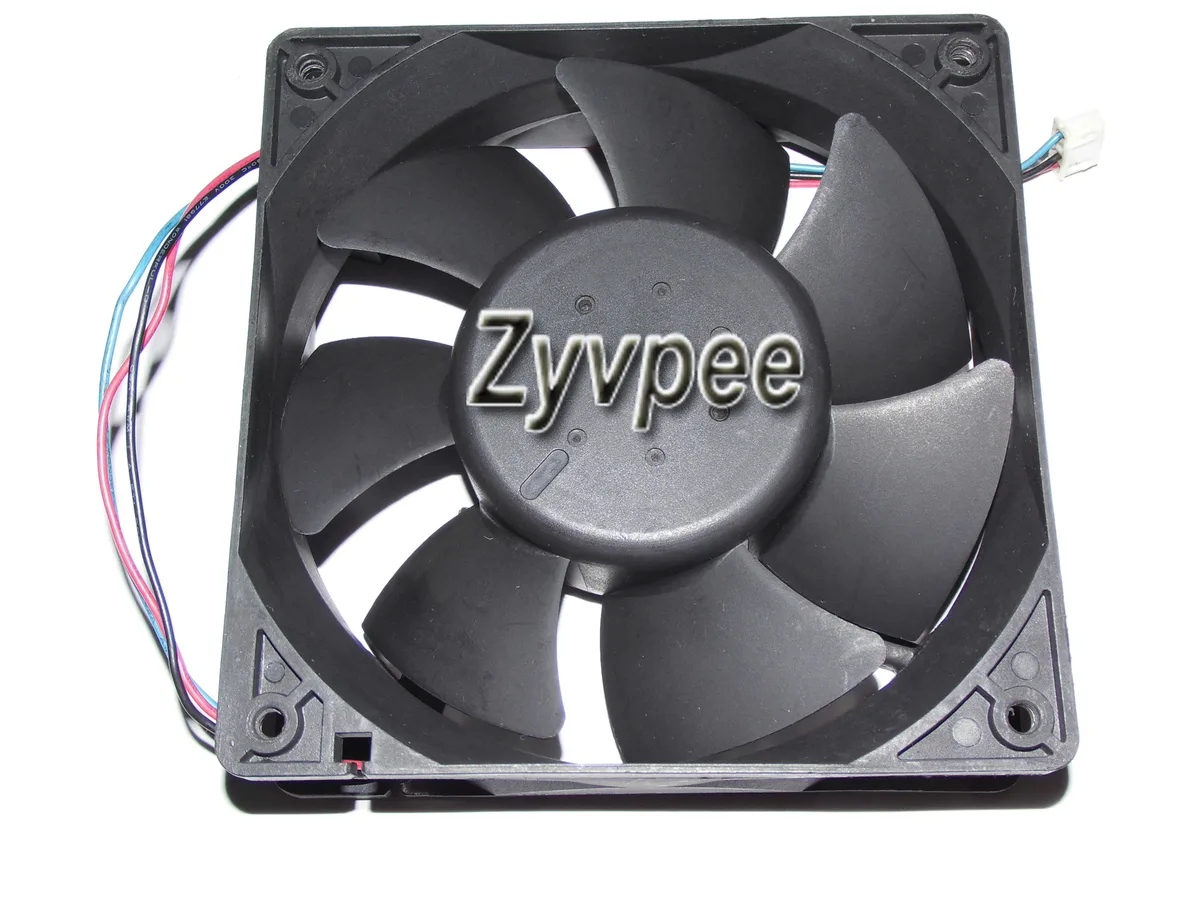

Black 120mm square case fan 38mm thick with three pin connector

Zyvpee

Zyvpee AFB1224HHE -R00 24V 0.45A 120mm 38mm 3 Pin Case Fan

SKU CH-9JK7-QBZNJ

A 120 mm by 38 mm case fan with dual ball bearings, 24 V 0.45 A power and a 3-pin connector

  • TypeCase Fan
  • Bearing Type2 Ball
  • Power Connector3 Pin
  • ColorBlack
  • LEDNon-LED
  • FeaturesDC square Cooler
  • 24V DC power suits industrial and inverter systems
  • Dual ball bearing design extends operational lifespan
  • 120 mm by 38 mm frame fits standard mounting points
  • Three-pin connector enables speed monitoring
  • Non-LED black finish keeps builds visually clean

Delta 12CM 12038 Inverter Fan

The Zyvpee AFB1224HHE-R00 is a 120mm by 38mm case fan designed for 24V DC systems. It uses a dual ball bearing and a three-pin power connector. This unit suits industrial chassis, inverter enclosures or server builds that require high static pressure from a 12038 form factor.

24V Three-Pin Power Limits

The fan draws 0.45A at 24V and connects via a standard three-pin header. Speed control depends on the host varying the supply voltage because no PWM wire is present. Tachometer feedback is provided on the third pin for monitoring. Builders using 12V headers must add a step-down converter or the fan will not spin.

Pre-Install Checks

Verify that your chassis accepts a 38mm thick 120mm frame and that the mounting holes align with 120mm spacing. Confirm the power source delivers 24V DC and the header supplies at least 0.45A. Ensure the three-pin plug pinout matches your board because some vendors swap sense and ground positions.

Ciri-ciri utama

  • 24V DC power suits industrial and inverter systems
  • Dual ball bearing design extends operational lifespan
  • 120 mm by 38 mm frame fits standard mounting points
  • Three-pin connector enables speed monitoring
  • Non-LED black finish keeps builds visually clean

Spesifikasi

SeriesAFB1224HHE
ModelAFB1224HHE
TypeCase Fan
Bearing Type2 Ball
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions120mm*120mm*38mm
