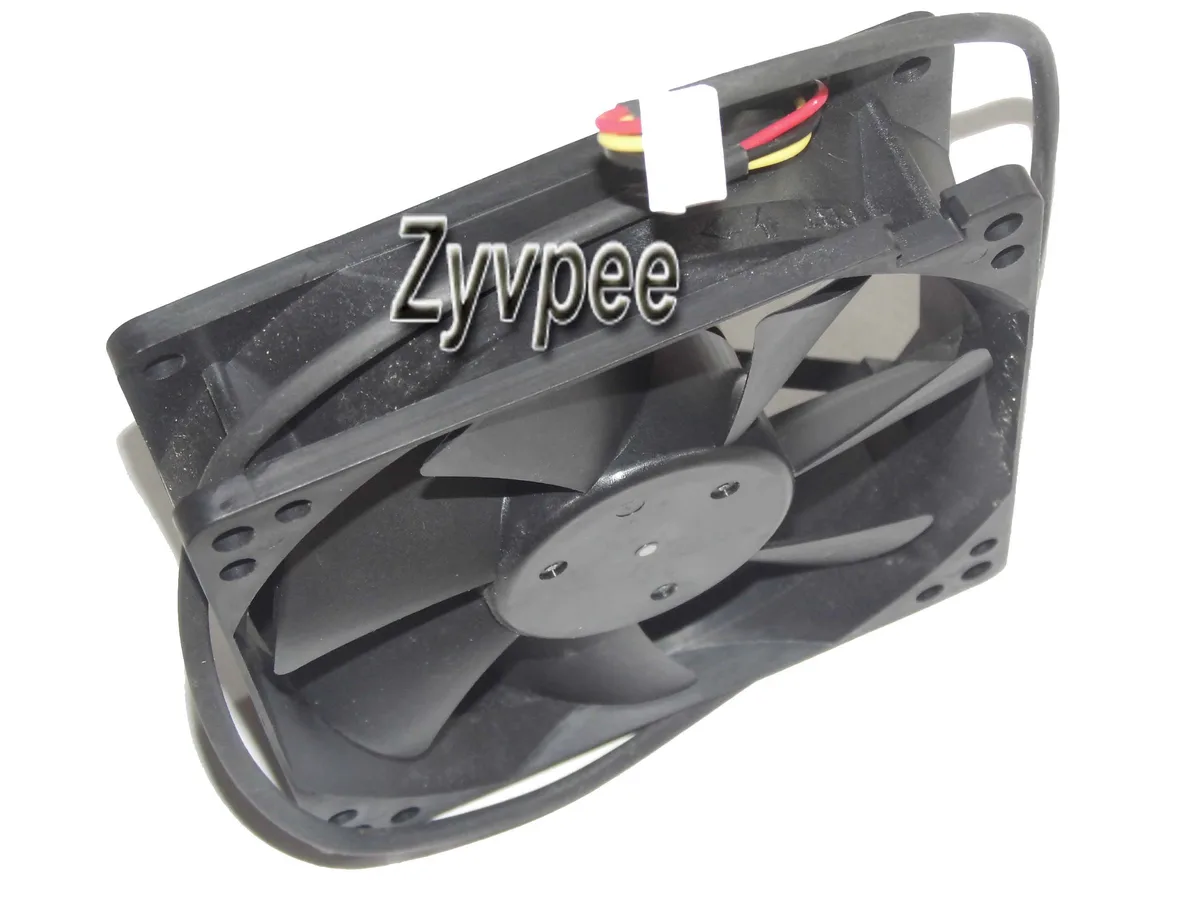

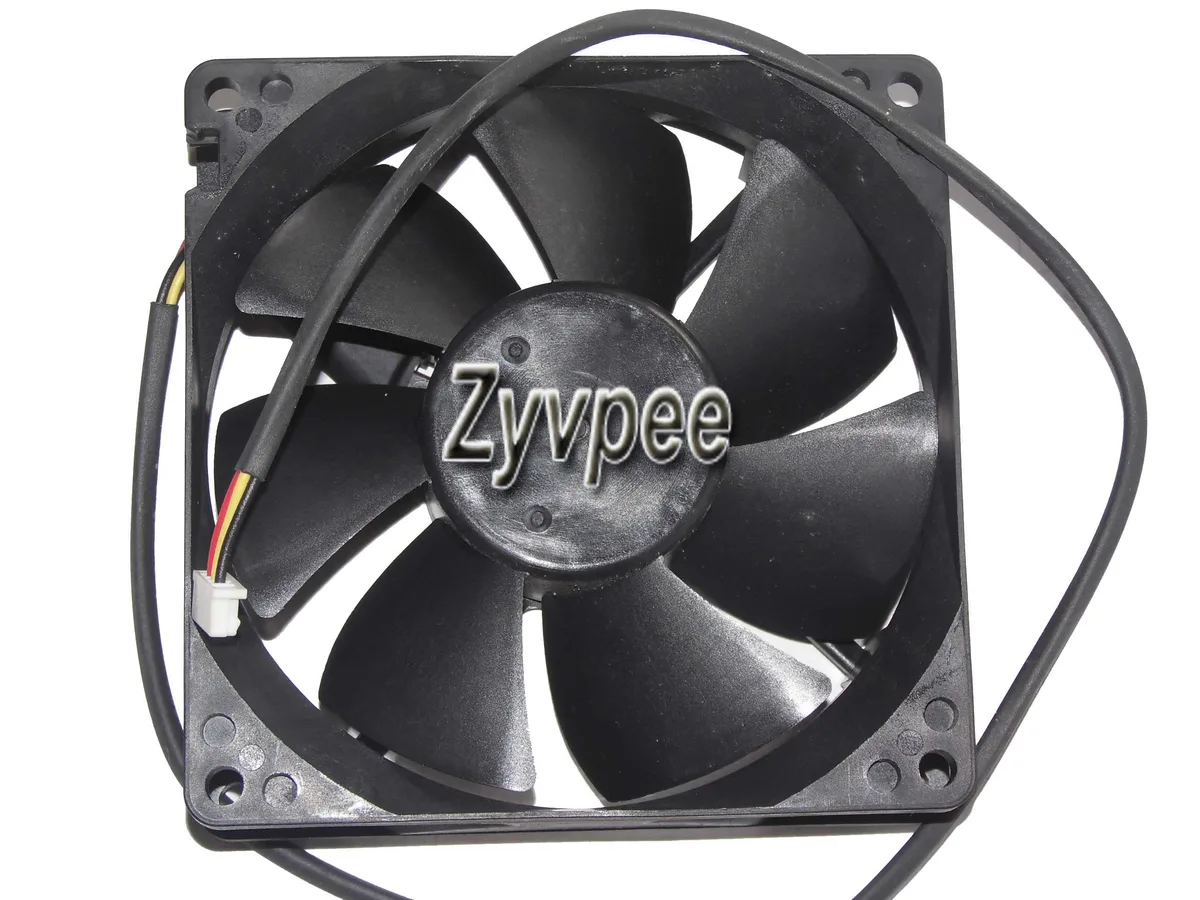

Black 90mm square DC case fan with three wires

Zyvpee

Zyvpee D09A-12PM 01B 12V 0.1A 3 Wires 9cm case fan

SKU CH-1DRR-PVTB6

A 90 mm case fan with dual-ball bearings and a three-wire power connector for 12 V DC cooling

  • TypeCase Fan
  • CompatibilityCase
  • Bearing Type2 Ball
  • Power Connector3 wires
  • ColorBlack
  • LEDNon-LED
  • Reliable long-life operation from 2 Ball bearing design
  • Quiet DC square cooler suits CPU or case cooling
  • Standard 90 mm square frame fits 9025 mounting points
  • Simple 3-wire 12 V connection draws only 0.1 A
  • Non-LED black finish keeps build aesthetics clean

Compact 90 mm case fan for tight builds

The Zyvpee D09A-12PM 01B fits 90 mm mounting points and draws 0.1 A at 12 V. Its three-wire connector reports speed to the motherboard so fan curves can react to temperature changes. The 90 mm square frame suits small-form-factor cases and CPU coolers that need a slim profile.

Three-wire DC control limits speed precision

Voltage regulation on a three-wire header adjusts RPM in steps rather than the finer granularity of PWM. The motherboard still reads the tachometer signal, but the lowest stable voltage may leave the fan spinning faster than a four-wire alternative at idle. Builders who need near-silent operation at low load should verify their board's voltage floor.

Dual-ball bearing and 25 mm depth for dense layouts

The 2 ball bearing design resists wear better than sleeve types when mounted horizontally or vertically. At 25 mm thick the fan clears most low-profile heatsinks and crowded drive cages. Black non-LED blades keep the appearance neutral in windowed or open-frame builds.

Ciri-ciri utama

  • Reliable long-life operation from 2 Ball bearing design
  • Quiet DC square cooler suits CPU or case cooling
  • Standard 90 mm square frame fits 9025 mounting points
  • Simple 3-wire 12 V connection draws only 0.1 A
  • Non-LED black finish keeps build aesthetics clean

Spesifikasi

SeriesD09A-12PM
ModelD09A-12PM
TypeCase Fan
CompatibilityCase
Bearing Type2 Ball
Power Connector3 wires
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions90*90*25mm

Soalan tentang produk ini

How do I decide between the 90 mm and 9025 variants?

The listing describes a single 90 mm square frame that is 25 mm thick, so there is only one physical size to choose.

What does the 0.1 A rating mean once the fan is running in a system?

At 12 V the fan draws 0.1 A, giving a steady low power draw suitable for quiet case airflow.

What does the 3-wire connector actually control?

The three wires provide power, ground and a tachometer signal so the motherboard can monitor fan speed.
