Zyvpee
Zyvpee D09C-24PS5 01B 92mm 24V 0.36A 3-wire case fan
A 92 mm axial case fan running at 4300 RPM on 24 V DC with a three-wire ball-bearing motor delivering 84.7 CFM airflow
- TypeCase Fan
- CompatibilityCPU Cooler
- Bearing TypeBall
- Power Connector3 Wires
- ColorBlack
- LEDNon-LED
- 24 V DC input suits industrial IPC inverter cooling
- 36 A draw keeps power use low at 8.64 W
- 4300 RPM delivers 84.7 CFM airflow for strong cooling
- 92 × 92 × 32 mm frame fits standard 92 mm mounts
- Ball bearing design extends service life in continuous operation

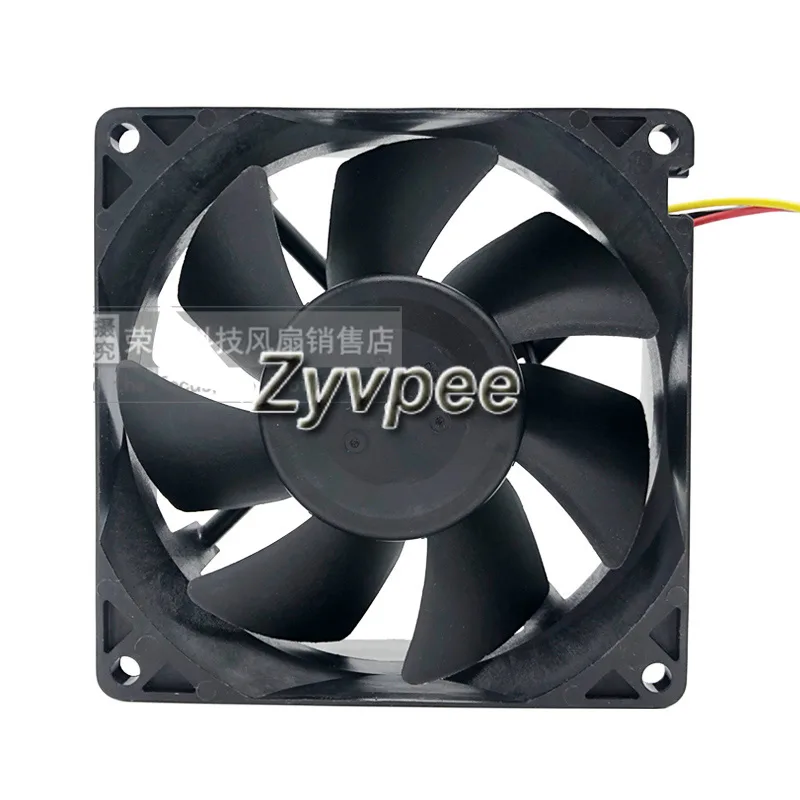

Zyvpee D09C-24PS5 01B 92mm 24V Fan
The Zyvpee D09C-24PS5 01B is a 92 mm axial case fan designed for 24 V DC systems. It draws 0.36 A at a rated speed of 4300 RPM and delivers 84.7 CFM of airflow. The unit uses a ball bearing and a three-wire power connector.
Suited For 24 V IPC And Inverter Cooling
This fan fits industrial PCs, inverter enclosures or CPU coolers that accept a 92 × 32 mm frame and a 24 V supply. Builds that need a different voltage, a smaller footprint or a four-pin PWM header should look elsewhere.
24 V 0.36 A Three-Wire Power Specification
The decisive specification is the 24 V nominal voltage combined with a 0.36 A current draw and a three-wire connector. Verify that your hardware provides exactly this electrical interface before purchasing.
Ciri-ciri utama
- 24 V DC input suits industrial IPC inverter cooling
- 36 A draw keeps power use low at 8.64 W
- 4300 RPM delivers 84.7 CFM airflow for strong cooling
- 92 × 92 × 32 mm frame fits standard 92 mm mounts
- Ball bearing design extends service life in continuous operation
Spesifikasi
| Brand | 3cooler.com |
|---|---|
| Series | D09C-24PS5 01B |
| Model | D09C-24PS5 01B |
| Type | Case Fan |
| Compatibility | CPU Cooler |
| Bearing Type | Ball |
| Power Connector | 3 Wires |
| Color | Black |
| LED | Non-LED |
| Features | Inverter Cooling |
| Dimensions | 92*32mm |
Soalan tentang produk ini
What power connector does the D09C-24PS5 01B need to run?
It requires a 3-wire connector supplying DC 24V at 0.36A to reach its rated 4300 RPM and 84.7 CFM airflow.
Will this 92×32 mm axial fan fit the same mounting holes as my existing 92 mm cooler?
Yes, the 92 mm square frame matches standard 92 mm mounting patterns, so it can replace or supplement an existing 92 mm cooler directly.
How can I confirm the fan is spinning at its rated speed after installation?
Monitor the fan header in BIOS or software; a steady reading near 4300 RPM shows the ball-bearing motor is operating at its specified 8.64 W input power.
