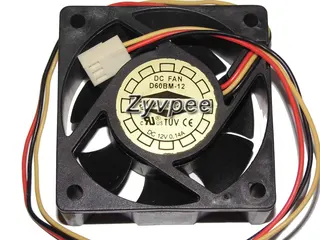

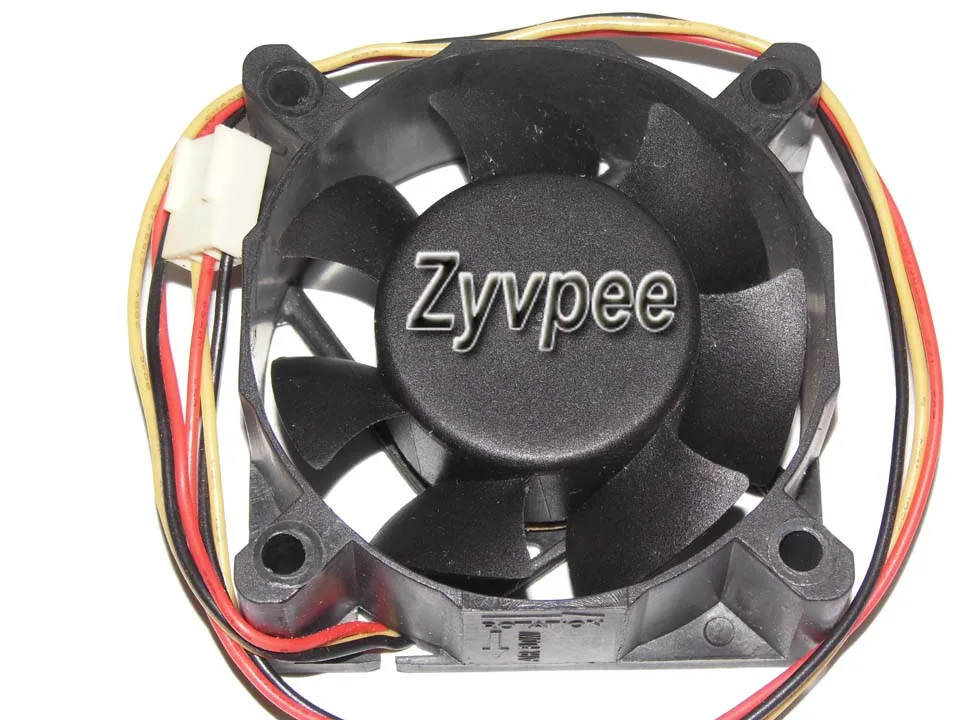

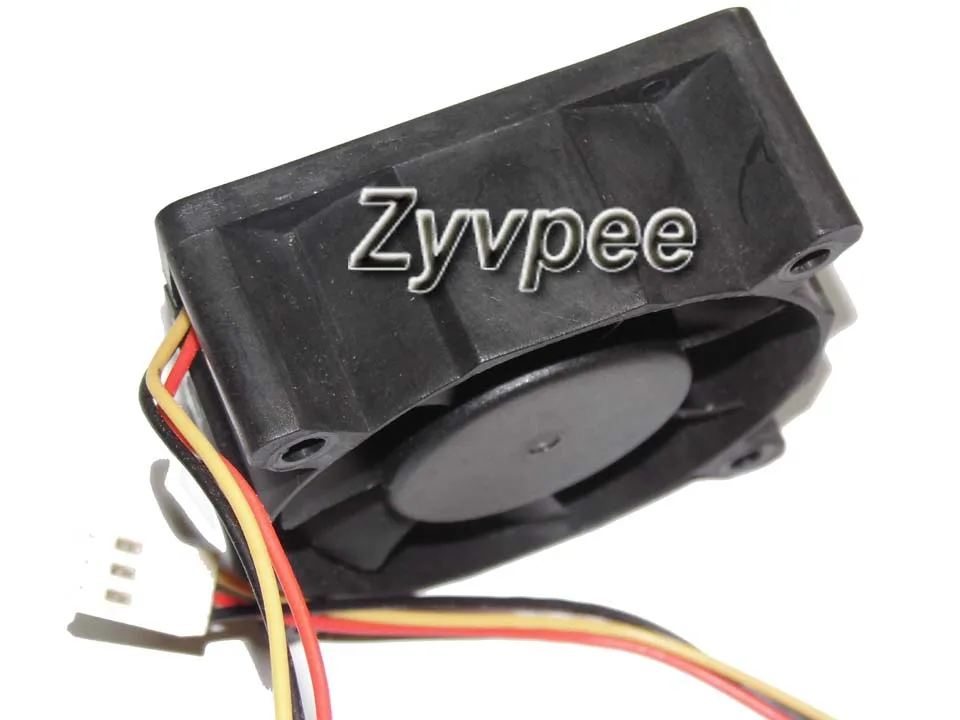

Black 60 by 25 mm DC axial case fan with three-pin connector

Zyvpee

Zyvpee D60BM-12 60x25mm 12V .14A 3-pin case fan

SKU CH-CX85-ZPFTR

A 60x25mm DC axial fan with ball bearing and 3-pin 12V .14A power for case cooling

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeBall
  • Power Connector3 Pin
  • ColorBlack
  • LEDNon-LED
  • Ball bearing for reliable long-term operation
  • 12 V .14 A draw keeps power use low
  • 60 x 25 mm size fits tight chassis spaces
  • 3-pin connector plugs straight into standard headers
  • Non-LED black frame suits stealth builds

Compact 60 mm cooling fan

The Zyvpee D60BM-12 is a 60 mm square case fan built for tight spaces in desktop chassis. It runs on 12 V and draws 0.14 A through a standard three-pin power connector. The ball-bearing motor targets builders who need reliable airflow in small-form-factor or legacy systems. Non-LED black frame keeps the look neutral.

Ball bearing and three-pin control

Ball-bearing construction reduces friction for consistent rotation over long duty cycles. The 3-pin DC interface allows motherboard voltage control without PWM complexity. Mounting holes match the 60 mm pattern so the fan fits directly onto compatible heatsinks or case vents. No integrated lighting means no extra cables to route.

Replaces worn 60 mm case fans

This unit serves as a direct swap for failed or noisy 60 mm fans in existing builds. The 0.14 A draw keeps power demand low on older supply rails. The jump is worth it when the original sleeve-bearing fan has developed rattle or reduced speed. Builders needing larger airflow or PWM control should look at bigger frame sizes.

Ciri-ciri utama

  • Ball bearing for reliable long-term operation
  • 12 V .14 A draw keeps power use low
  • 60 x 25 mm size fits tight chassis spaces
  • 3-pin connector plugs straight into standard headers
  • Non-LED black frame suits stealth builds

Spesifikasi

SeriesD60BM-12
ModelD60BM-12
TypeCase Fan
CompatibilityCase
Bearing TypeBall
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesDC axial fan
Dimensions60*60*25mm

Soalan tentang produk ini

What does the 3-pin connector control on this fan?

The three-pin connector supplies 12 V power and a tachometer signal so the motherboard can monitor speed; it does not support PWM speed control.

Will the 60 x 60 x 25 mm frame fit a standard 60 mm fan mount?

Yes, the 60 mm square frame and 25 mm thickness match the common 60 mm mounting pattern used on many cases and CPU coolers.

How do I connect the three wires correctly?

Align the keyed 3-pin plug with the motherboard header — ground, 12 V, and sense — and press straight in; forcing it backwards bends pins and stops the fan from reporting speed.
