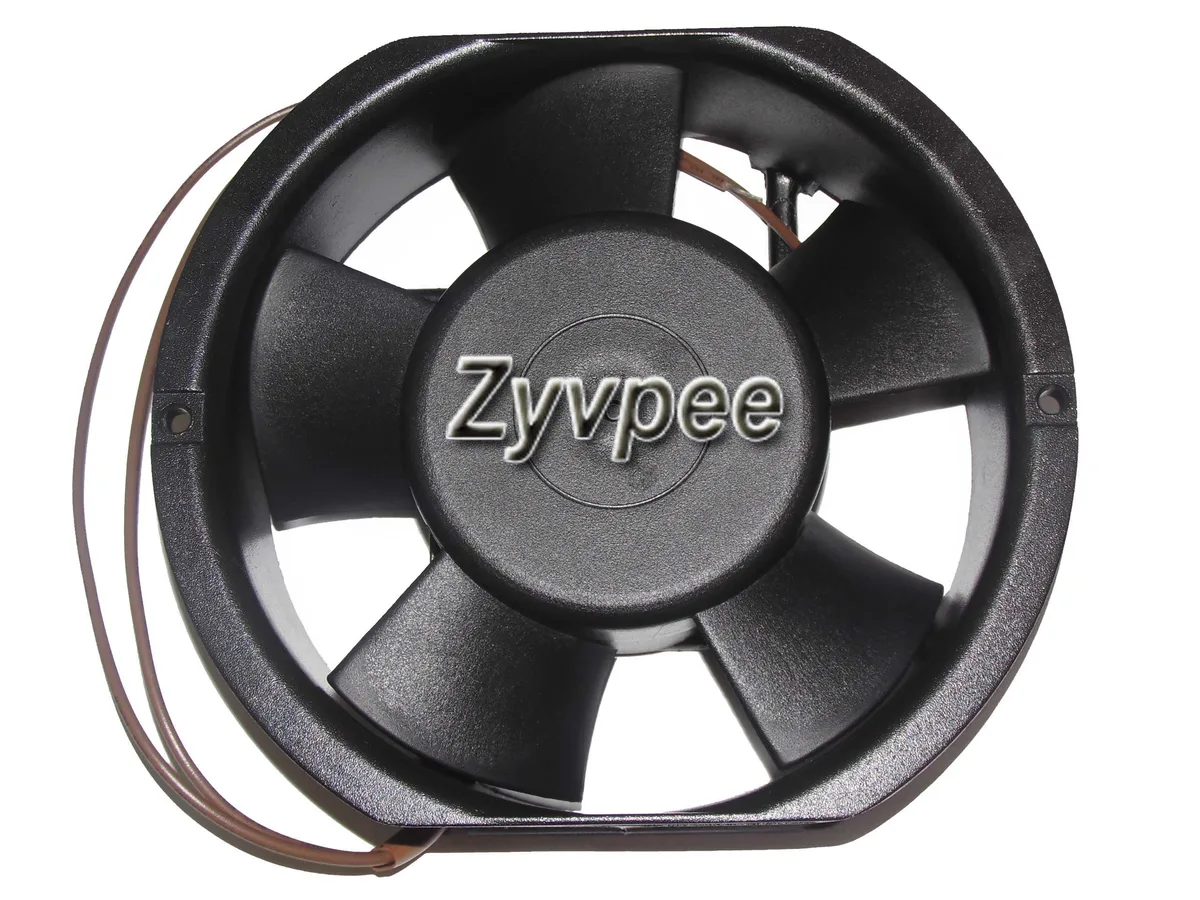

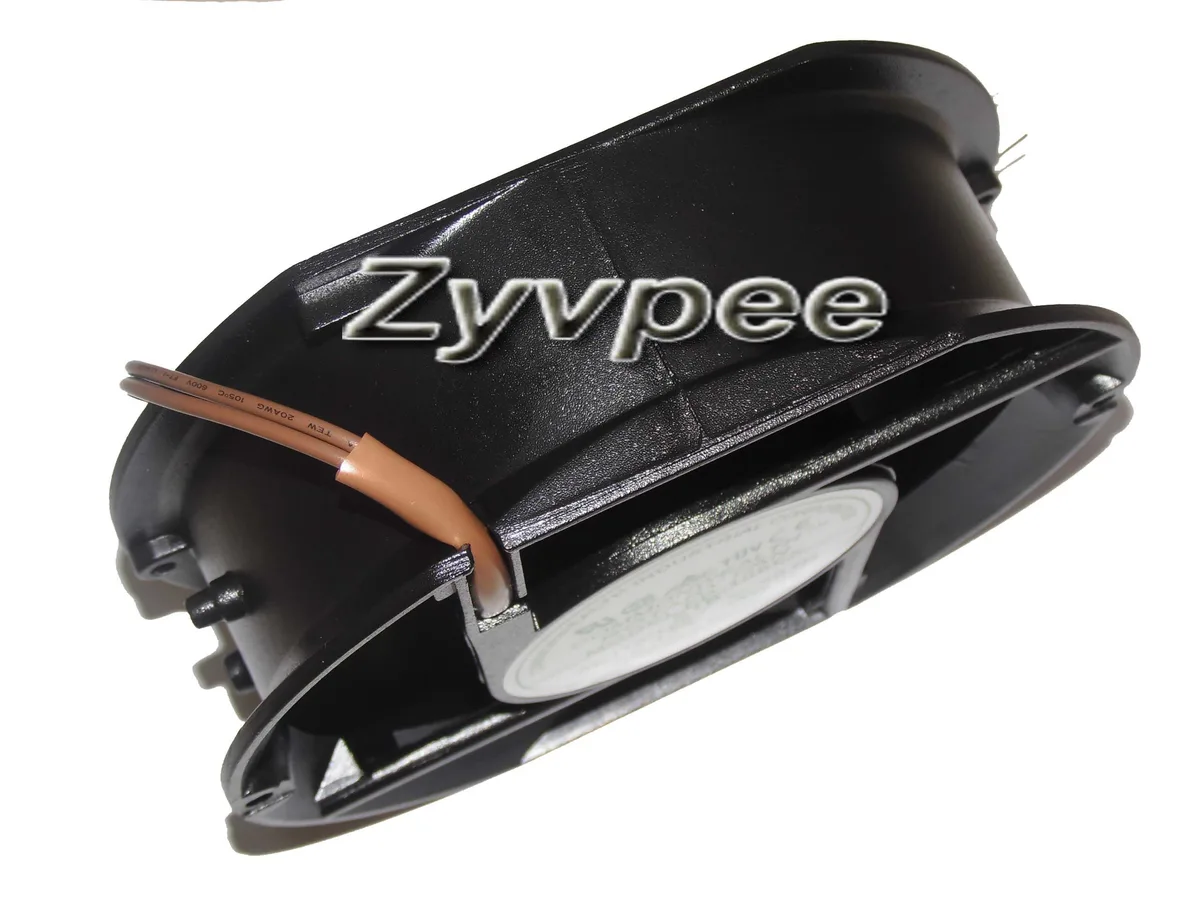

Black 170mm AC axial case fan with dual ball bearing and two wires

Zyvpee

Zyvpee FP-108EX-S1-B 170mm 2 Ball AC Case Fan

SKU CH-F1AQ-AW0BC

170 mm dual-ball-bearing AC axial fan runs on 110-120 V mains power at 38 W for server and cabinet cooling

  • TypeCase Fan
  • Fan Size170mm
  • Bearing Type2 Ball
  • Power Connector2 wires
  • ColorBlack
  • LEDNon-LED
  • 170 mm axial fan moves high airflow for cabinets and servers
  • Dual ball bearings extend operating life under continuous duty
  • 110–120 V AC input powers directly from mains without a converter
  • 38 W draw at .5 A keeps energy cost predictable
  • 172 × 55 mm frame fits standard 170 mm mounting holes

AC axial fan for rack and server cabinets

The Zyvpee FP-108EX-S1-B is a 170mm AC axial fan designed for cabinet, UPS and server cooling. It operates directly from 110-120V mains at 50/60Hz and draws 0.5A for 38W of power. The two-wire connection simplifies wiring in industrial enclosures.

Mains-powered operation limits placement flexibility

Because the unit runs on AC line voltage, it must be wired into a 110-120V 50/60Hz supply rather than a standard motherboard header. Builders who need PWM speed control or low-voltage 12V operation cannot use this model. The fixed 38W draw also means it cannot be throttled for quieter running.

172*55mm frame with dual-ball bearing decides fit

The housing measures 172*55mm and uses a 2 ball bearing for extended service life in continuous-duty environments. Non-LED black finish suits professional racks where indicator lights are unwanted. Verify the exact cut-out and screw pattern before ordering, as the 170mm nominal size refers to the blade diameter.

Ciri-ciri utama

  • 170 mm axial fan moves high airflow for cabinets and servers
  • Dual ball bearings extend operating life under continuous duty
  • 110–120 V AC input powers directly from mains without a converter
  • 38 W draw at .5 A keeps energy cost predictable
  • 172 × 55 mm frame fits standard 170 mm mounting holes

Spesifikasi

SeriesFP-108EX-S1-B
ModelFP-108EX S1B
TypeCase Fan
Fan Size170mm
Bearing Type2 Ball
Power Connector2 wires
ColorBlack
LEDNon-LED
FeaturesAC Axial Fan
Dimensions172*55mm

Soalan tentang produk ini

Which fan size should I pick for my cabinet or server cooler?

This model is a single 170 mm unit with a 172 mm by 55 mm frame, so there is no alternative size to choose.

What does the 38 W rating mean when the fan is running in my system?

At 110–120 V the motor draws up to 0.5 A, delivering 38 W of continuous AC axial airflow for cabinet, UPS or server cooling.

How does the two-wire AC connection limit speed control options?

The fan runs directly from 50/60 Hz mains power with no PWM or voltage regulation, so speed is fixed by the supply frequency.
