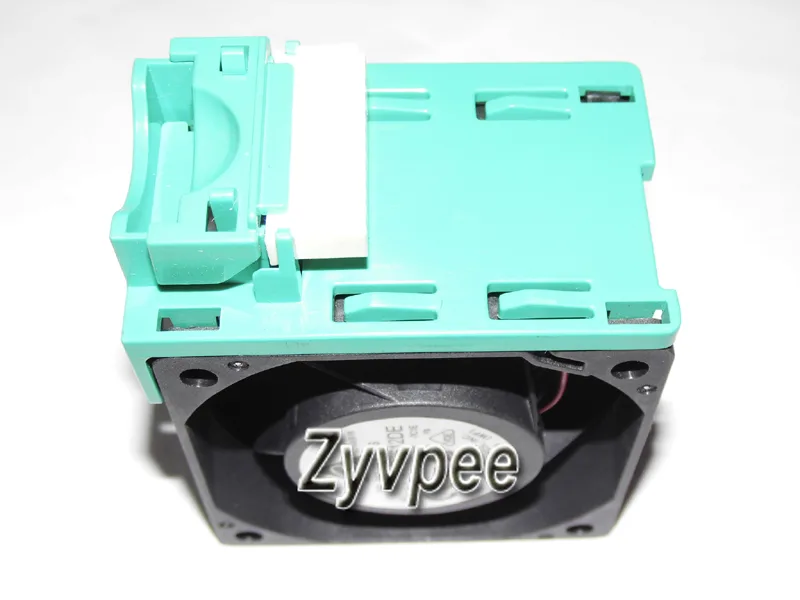

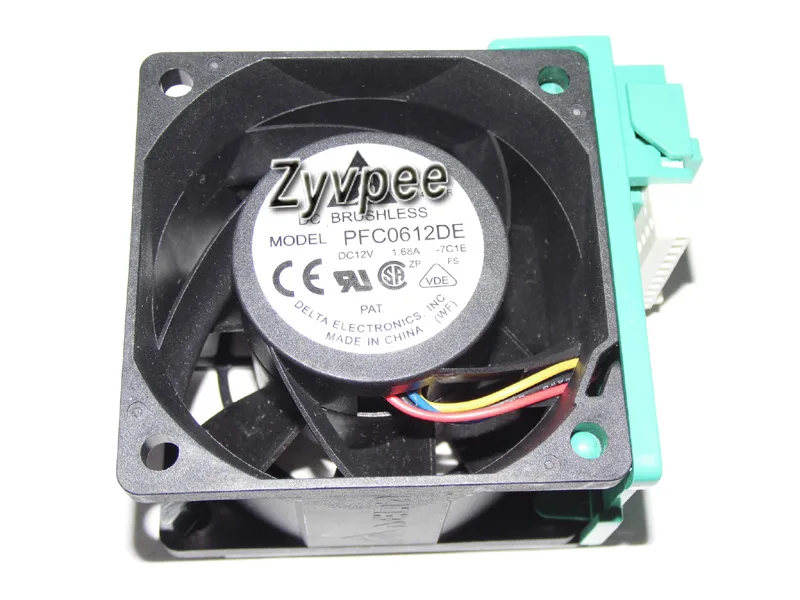

60 by 38 mm black case fan with blue bracket four wire connector

Zyvpee

Zyvpee PFC0612DE 60x38mm 12V 1.68A 4-Wire Case Fan Blue Bracket

SKU CH-0NNE-DEB2V

A 60x38 mm server cooling fan with dual ball bearing, 12 V 1.68 A draw and a four-wire PWM connector on a blue bracket

  • TypeCase Fan
  • Bearing Type2 Ball
  • ColorBlack
  • LEDNon-LED
  • FeaturesServer Cooling
  • Dimensions60*38mm
  • 60 mm x 38 mm frame fits compact server bays
  • Dual ball bearing design extends operational lifespan
  • 12 V 1.68 A rating delivers strong airflow for dense chassis
  • 4-wire PWM header enables precise speed control
  • Blue mounting bracket matches Xyratex 90512-11 and IBM 5A809 05 modules

Product Identity

This Zyvpee case fan measures 60 by 38 millimetres and runs on 12 volts at 1.68 amperes. It uses a four-wire connection and a two-ball bearing. A blue mounting bracket is included for the specified server module.

Who It Suits

Technicians maintaining an Xyratex 90512-11 or IBM 5A809 05 unit that calls for the PFC0612DE 7C1E part will find a direct fit. Builders who need a different frame depth, voltage or connector layout cannot use this model.

Deciding Specification

The 60-by-38-millimetre frame with four-wire 12-volt 1.68-ampere operation and blue bracket is the single detail that confirms compatibility with the target server module.

Ciri-ciri utama

  • 60 mm x 38 mm frame fits compact server bays
  • Dual ball bearing design extends operational lifespan
  • 12 V 1.68 A rating delivers strong airflow for dense chassis
  • 4-wire PWM header enables precise speed control
  • Blue mounting bracket matches Xyratex 90512-11 and IBM 5A809 05 modules

Spesifikasi

Brand3ccooler.com
SeriesPFC0612DE 7C1E
ModelPFC0612DE
TypeCase Fan
Bearing Type2 Ball
ColorBlack
LEDNon-LED
FeaturesServer Cooling
Dimensions60*38mm

Soalan tentang produk ini

How loud and hot does the 12 V 1.68 A 60 mm fan run during continuous server duty?

The dual-ball-bearing motor is rated for 12 V at 1.68 A, a power level typical of high-airflow server fans that move substantial volume; expect noticeable airflow noise and warm exhaust under sustained load.

What motherboard header or controller is required for the four-wire PWM connector on this 6038 unit?

A standard 4-pin PWM fan header supplies both 12 V power and the speed-control signal; the blue mounting bracket fits the Xyratex 90512-11 module, so the host chassis must accept that bracket pattern.

Will the 60×38 mm frame with blue bracket line up with the screw holes on an older IBM 5A809 05 power-fan assembly?

The supplier lists this model as a direct replacement for the IBM 5A809 05 and Xyratex 95638-01 modules, so the mounting holes and connector orientation match those legacy units.
