Compact metal enclosure for 12V to 3kV DC-DC conversion

Analog Technologies, Inc.

Analog Technologies, Inc. AHV12V3KV5MAW Industrial Power Supply 12V 0-3kV 5mA

SKU CH-F9AM-EV01K

A 12 V input DC-DC module delivering adjustable 0–3 kV at up to 5 mA for industrial high-voltage applications

  • TypeLinear Power Supplies
  • Voltage500V
  • Amps10mA
  • 12 V input powers 0–3 kV output for high-voltage applications
  • 5 mA maximum current supports precision instruments
  • 400 mA to 1.8 A input range fits varied supplies

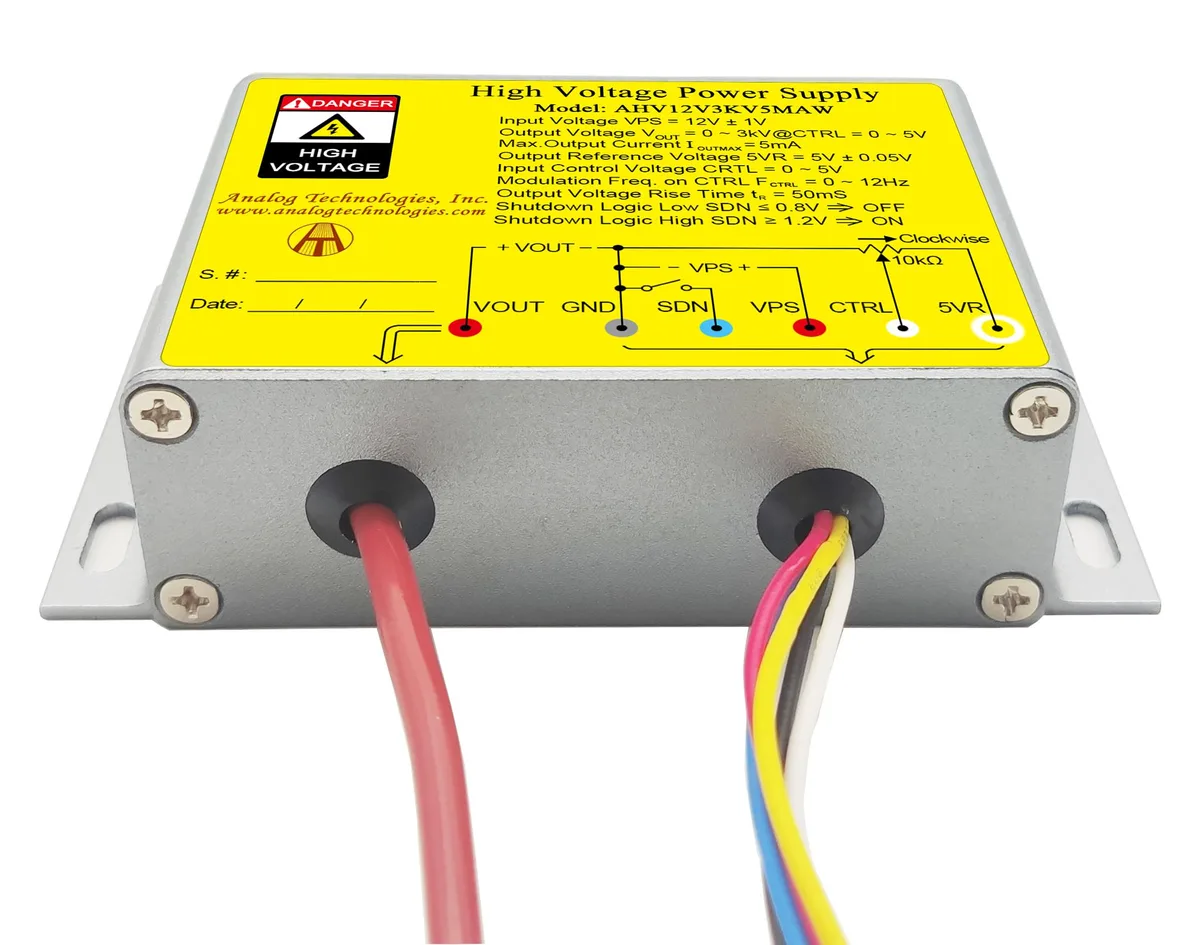

  • Metal enclosure gives zero EMI and effective heat sinking
  • 5 V ± 0.05 V reference ensures stable control voltage

Engineered for industrial reliability

This DC-DC high-voltage power supply module converts a 12 V input into a precisely regulated 0 to 3 kV output with a maximum current of 5 mA. It is built for engineers and technicians who need stable, low-noise power in demanding environments such as X-ray systems, spectral analysis, semiconductor manufacturing, and particle accelerator research. The metal enclosure provides effective heat sinking and zero EMI emissions, ensuring clean operation around sensitive instrumentation.

Thermals, noise and power draw

The unit accepts an input voltage of 12 V ± 1 V and draws between 400 mA and 1.8 A depending on load, while delivering a reference voltage of 5 V ± 0.05 V for control circuitry. Its linear topology and metal housing dissipate heat without forced airflow, eliminating acoustic noise and electromagnetic interference that could disrupt analytical measurements or imaging processes. Electronic shutdown control allows immediate output inhibition for system protection.

Integration and system fit

A 0 to 5 V control voltage scales the output linearly, enabling straightforward integration into automated test rigs or closed-loop control systems. Standardised connectors and a compact footprint simplify installation inside existing enclosures, freeing valuable rack space for other subsystems. The module is not suited for applications requiring higher output current, adjustable polarity, or AC mains input without additional front-end conversion.

Öne çıkanlar

  • 12 V input powers 0–3 kV output for high-voltage applications
  • 5 mA maximum current supports precision instruments
  • 400 mA to 1.8 A input range fits varied supplies
  • Metal enclosure gives zero EMI and effective heat sinking
  • 5 V ± 0.05 V reference ensures stable control voltage

Teknik özellikler

TypeLinear Power Supplies
Voltage500V
Amps10mA

Bu ürünle ilgili sorular

How do I install the AHV12V3KV5MAW and what is the common mistake?

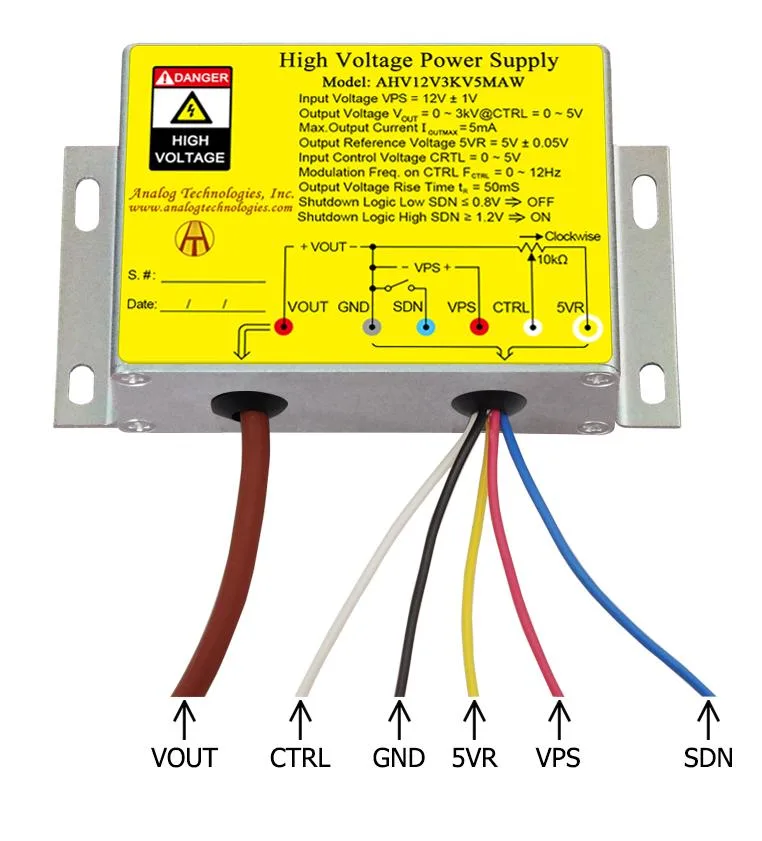

Connect a 12 V source capable of 400 mA to 1.8 A to the input terminals, then apply a 0–5 V control signal to the CTRL pin; the frequent error is using an input supply that cannot sustain the required current range.

What maintenance or replacement will this supply need later?

The metal enclosure provides zero EMI and acts as a heat sink; keep ventilation paths clear and verify the reference voltage remains within 5 V ± 0.05 V during periodic checks.

What limit appears first during sustained high-voltage operation?

The output current is capped at 5 mA, so any load demanding more will hit that ceiling before thermal or voltage regulation limits are reached.
