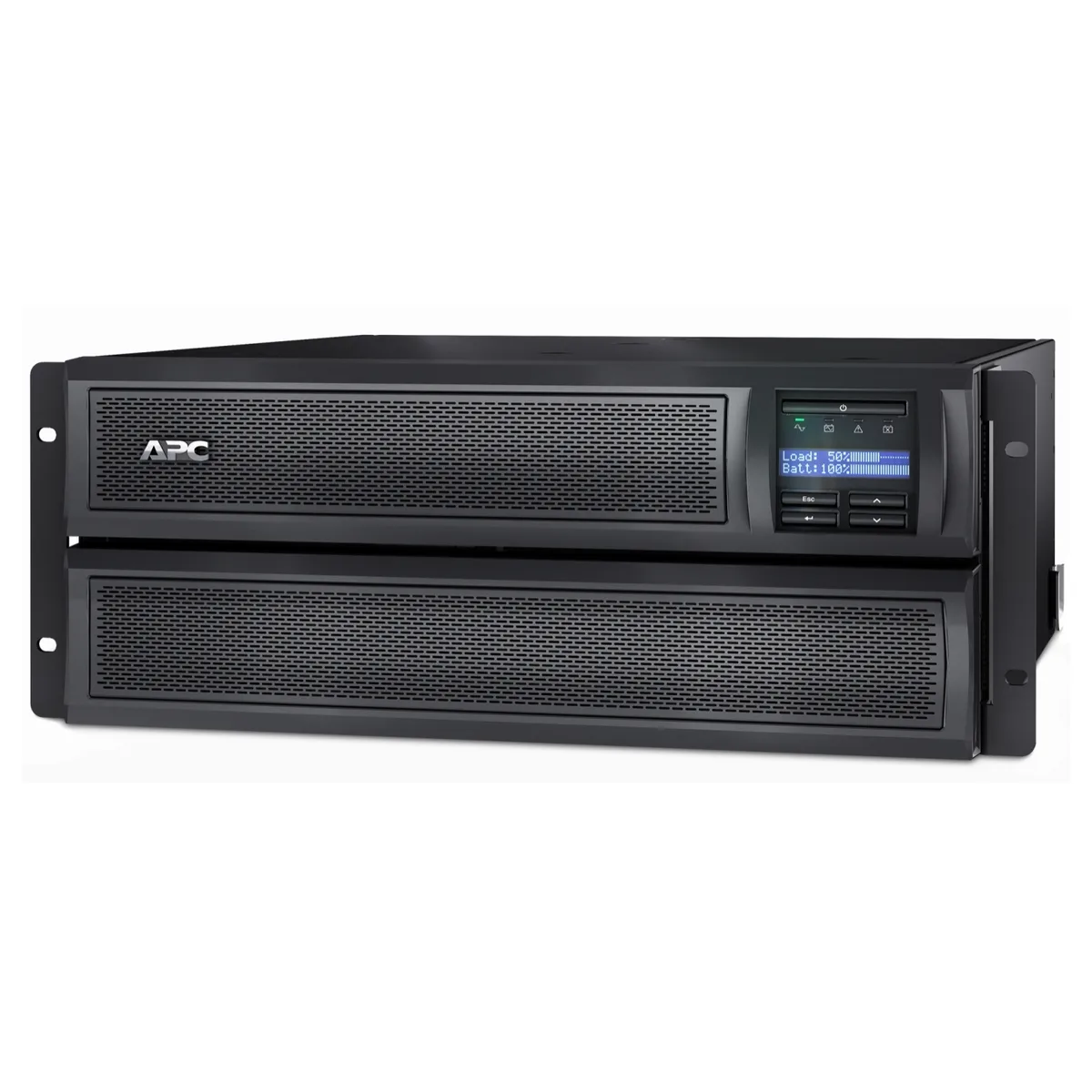

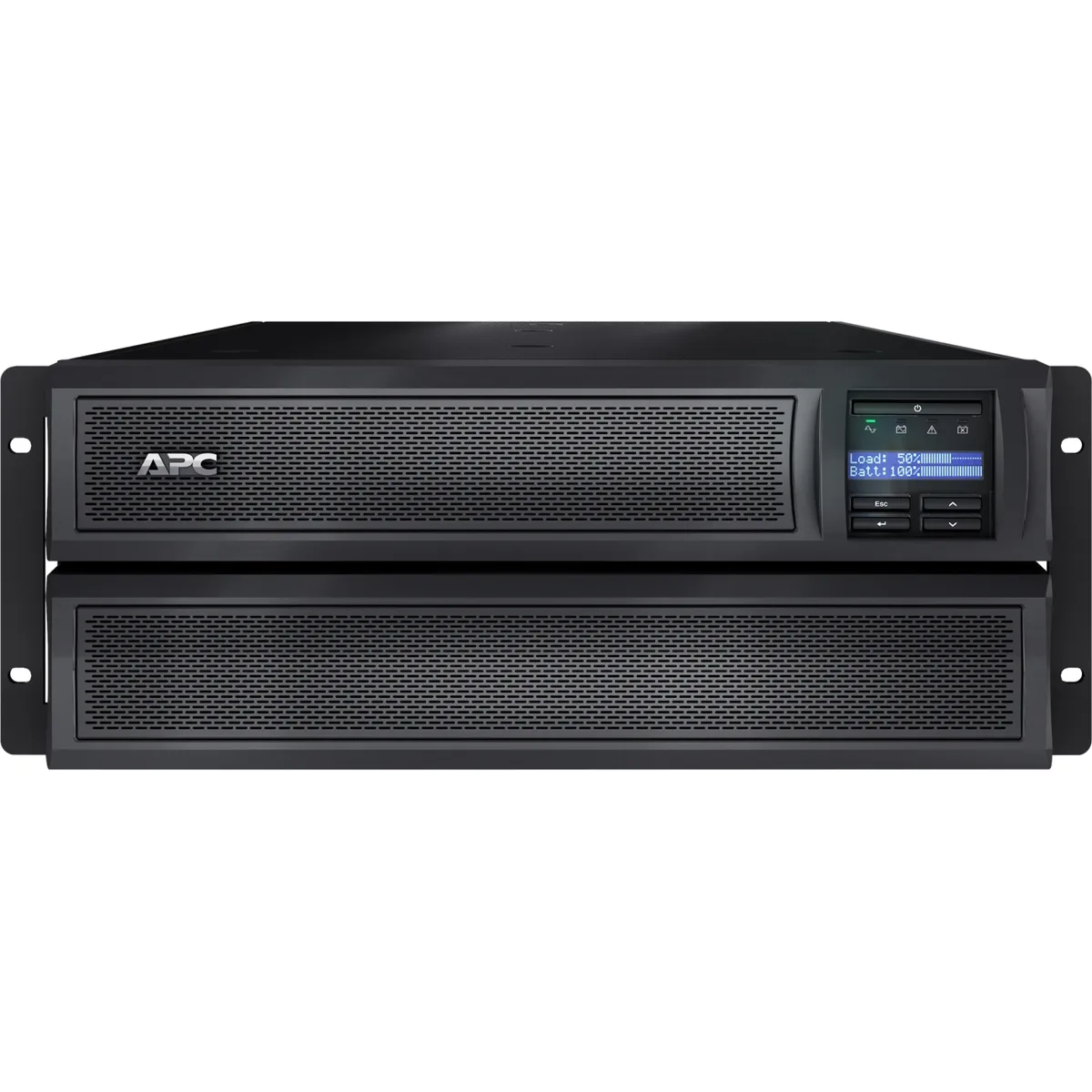

Dark grey 4U rackmount UPS with LCD screen, twelve IEC outlets on the rear, front bezel showing status indicators

APC

APC Smart-UPS X SMX3000HV 3000VA 2700W 208/230V 12 Outlets 4U Rackmount UPS

SKU CH-BR9T-FS2K1 MPN SMX3000HV

A 3000 VA, 2700 W rackmount UPS with twelve IEC outlets and a Smart-Slot for network management

  • International Version208V, 230V
  • Input Voltage Range140 - 280V
  • Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
  • Input ConnectionIEC-320 C20 Schuko CEE 7 / EU1-16P British BS1363A
  • VA Rating3000 VA
  • Watts2700 Watts

Options SMX3000HV

7 yapılandırma daha gösterin
  • 3000 VA / 2700 W protects critical servers and network gear
  • 12 outlets (8 C13, 2 C19, 2 jumpers) power dense rack loads
  • 140–280 V input range keeps equipment running through brownouts
  • 3-hour recharge minimises downtime after outages
  • 4U rackmount design fits standard server cabinets

3000VA 208/230V rackmount UPS

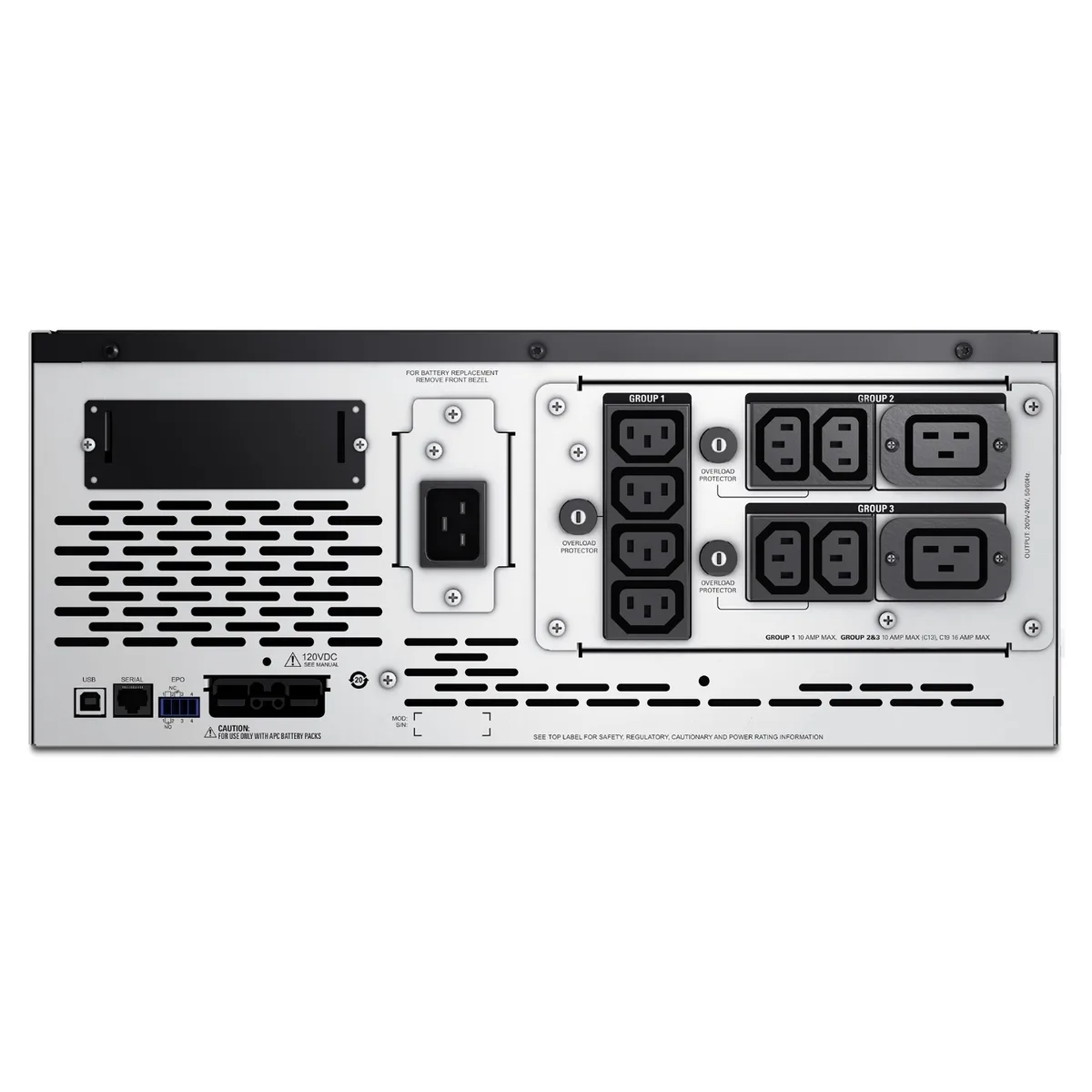

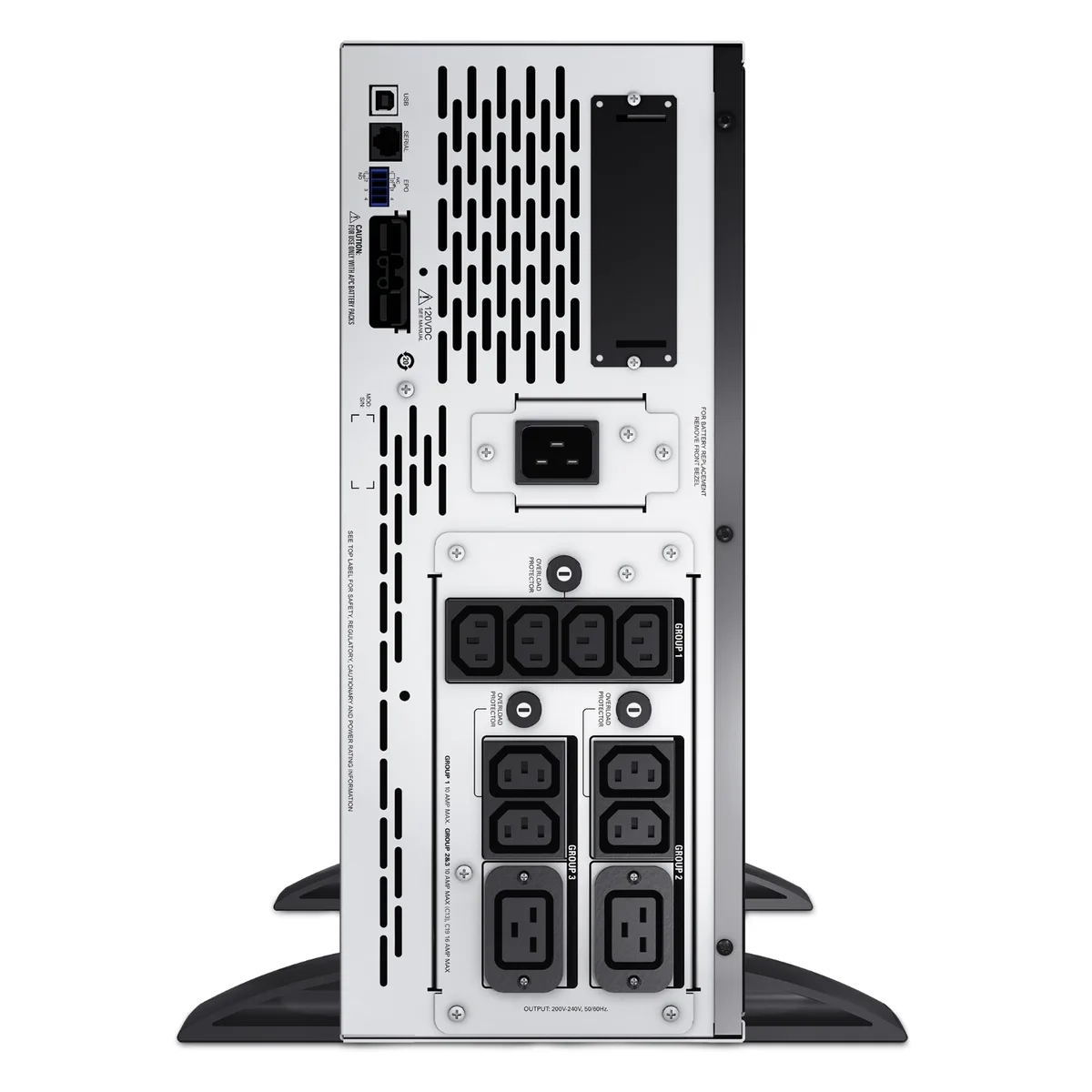

The APC Smart-UPS X SMX3000HV delivers 3000VA and 2700W of pure sine-wave power protection in a 4U rackmount chassis. Twelve rear outlets include eight IEC 320 C13, two IEC 320 C19 and two IEC jumpers to support servers, switches and networking gear. A Smart-Slot interface accepts optional management cards for remote monitoring. Input accepts 140–280V at 50/60Hz with auto-sensing frequency.

Online double-conversion thermals and efficiency

The UPS operates as an online double-conversion topology, so incoming power is continuously rectified and inverted, isolating connected loads from voltage sags, surges and frequency drift. A sealed lead-acid battery module recharges in three hours and is user-replaceable using part APCRBC143. Surge energy rating is 645 joules. Audible alarms signal on-battery and low-battery states with configurable delays.

Replaces smaller VA tower or line-interactive units

Moving from a lower VA tower or line-interactive UPS adds continuous voltage regulation without battery drain and extends runtime for critical loads. The jump is worth it when equipment requires 208V or 230V input, when rack density demands 4U mounting, or when the load approaches 2700W and needs true online isolation. Not suited for desktop loads needing only basic standby backup or for installations that cannot accommodate a 4U rack footprint.

Öne çıkanlar

  • 3000 VA / 2700 W protects critical servers and network gear
  • 12 outlets (8 C13, 2 C19, 2 jumpers) power dense rack loads
  • 140–280 V input range keeps equipment running through brownouts
  • 3-hour recharge minimises downtime after outages
  • 4U rackmount design fits standard server cabinets

Teknik özellikler

BrandAPC
SeriesSmart-UPS X
ModelSMX3000HV
International Version208V, 230V
Input Voltage Range140 - 280V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
Input ConnectionIEC-320 C20
Schuko CEE 7 / EU1-16P
British BS1363A
VA Rating3000 VA
Watts2700 Watts
Output Voltage230V
Output Frequency50/60Hz +/- 3 Hz
Outlets12
Outlet Type(8) IEC 320 C13
(2) IEC 320 C19
(2) IEC Jumpers
Battery TypeSealed Lead Acid
Battery Recharge Time3 hour(s)
Battery ReplaceableAPCRBC143
AlarmsAlarm when on battery : distinctive low battery alarm : configurable delays
Interface PortSmart-Slot
Rackmountable4U
Surge Energy Rating645 Joules
Dimensions17.01" x 7.01" x 19.02 (H x W x D)
Weight85.19 lbs.
Kargo ağırlığı63.50 kg
Koli boyutu635 × 584 × 330 mm

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

How do I install the SMX3000HV in a rack and which step is often missed?

Mount the included 4U brackets, slide the unit into the rack, then connect the IEC-320 C20 input to a 208 V or 230 V source; the step often missed is securing the rear support brackets so the 48.3 cm depth does not strain the front rails.

Which battery cartridge replaces the internal pack and how often should it be swapped?

The replaceable cartridge is APCRBC143; APC recommends replacement every three to five years depending on temperature and discharge cycles.

What is the first limit reached during a long power outage at full load?

At 2700 W the internal batteries will deplete first; typical runtime at that load is only a few minutes before the low-battery alarm sounds.
